fuel system

1997 FORD THUNDERBIRD
100,000 MILES
Avatar
9X37
  • MEMBER
  • 1 POST
I don't know where to find the fuel system relay. Ford said it is in the fuse box under the hood, but the part I bought is too tall to fit in there.
Aug 12, 2013 at 12:19 PM
Advertisement
Avatar
CJ MEDEVAC
  • CERTIFIED EXPERT
  • 11,004 POSTS

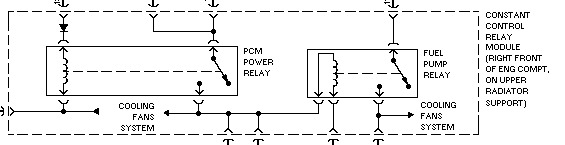

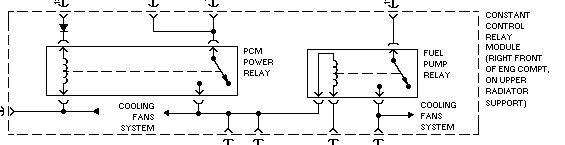

BOTH WIRE DIAGRAMS SHOW THIS IN THE SAME PLACE.......I COULDA TOOK THIS FROM EITHER ONE

WITHOUT KNOWING WHICH ENGINE YOU HAD....I CROPPED THIS OUT OF ONE OF THE DIAGRAMS (TO AVOID CONFUSING YOU WITH A WRONG DIAGRAM)

..................IF YOU NEED ENGINE PERFORMANCE DIAGRAMS (I THINK THERE WERE 3 FOR EACH ENGINE) I GOTTA KNOW YOUR ENGINE SIZE

THE MEDIC
Image (Click to enlarge)
Attached Media
Aug 12, 2013 at 1:36 PM
