1997 Ford F-250 front hubs

1997 FORD F-250
38,000 MILES • 7.3L • V8 • TURBO • 4WD • AUTOMATIC
Avatar
JIMDAUGHERTY
  • MEMBER
  • 1 POST
Auto locking hubs broken. Want to install Warn manual locking hubs (on hand). Have removed all of the old hub except for the last piece, the wheel retainer nut. Can't figure out if it takes a special socket or how to unscrew it. I have the spanner locknut socket to install the new locknuts but it doesn't fit the old wheel retainer nut. The instructions with the new hubs says to remove the wheel retainer nut but doesn't say how to do this.
Any suggestions?
Mar 17, 2015 at 11:55 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Raise vehicle and install safety stands.

Remove the wheel and tire. Refer to Section 04-04 in the Body, Chassis Manual.

Remove the locking hubs.

CAUTION: Do not let the disc brake caliper (2B120) hang only by the hose, or damage might occur to the hose or disc brake caliper.

Remove the disc brake caliper. Refer to Section 06-03 in the Body, Chassis manual. Securely wire the disc brake caliper to the frame.

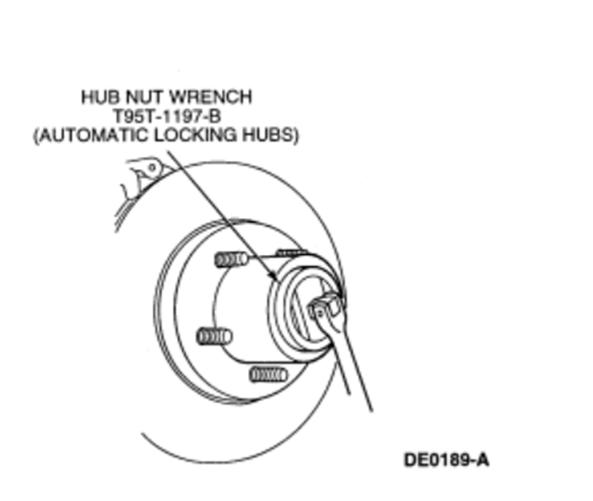

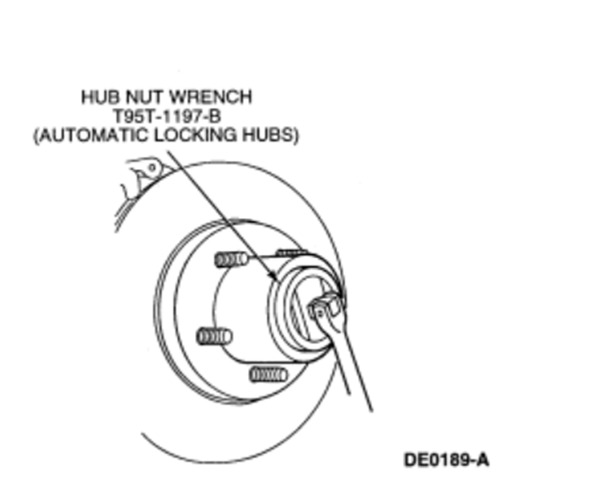

For vehicles equipped with automatic locking hubs, remove C-ring or snap ring and three-piece thrust washers (spacers). Remove the cam assembly and wheel bearing nut retaining key. Remove wheel bearing retainer (nut) using Hub Nut Wrench T95T-1197-B.

Repack the wheel bearings with the specified lubricant (grease).




Image (Click to enlarge)
Attached Media
Mar 18, 2015 at 7:48 AM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
if you don't have the wrench for nut removal a lot of auto parts rent it or you can use a chisel if you are careful.
Mar 18, 2015 at 7:48 AM
