1997 Ford Expedition lower ball joint install help

1997 FORD EXPEDITION
260,000 MILES • 5.4L • V8 • 2WD • AUTOMATIC
Avatar
ROYCAR71
  • MEMBER
  • 359 POSTS

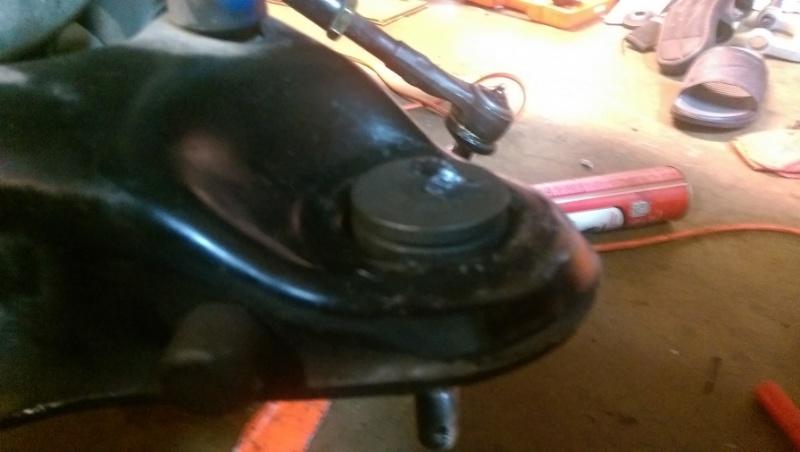

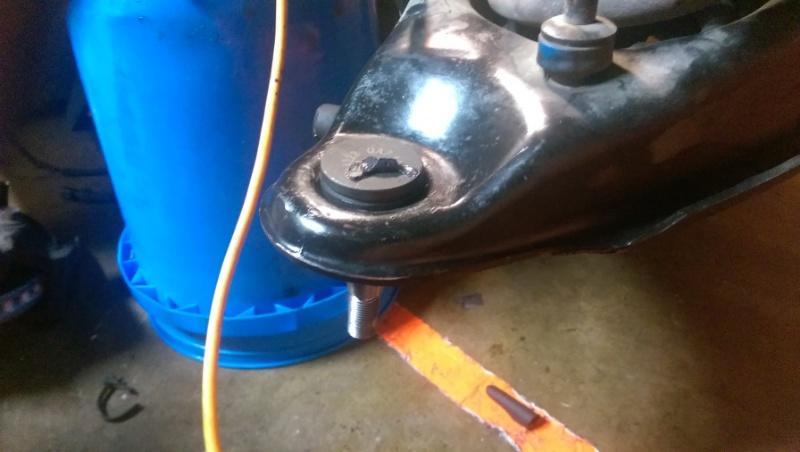

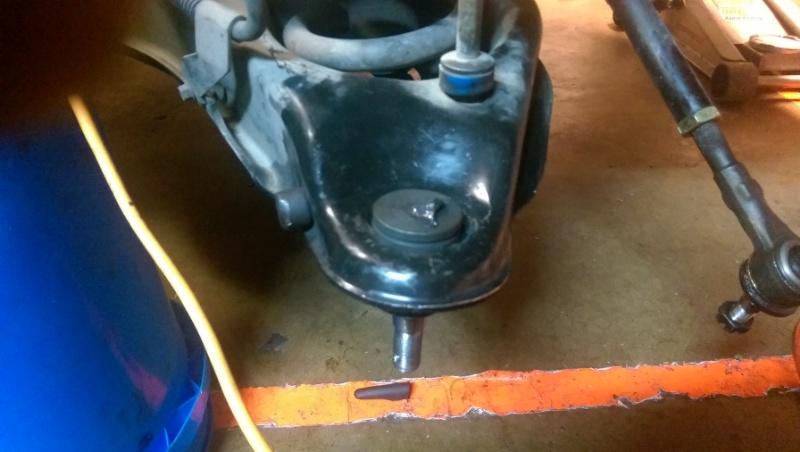

I recently replaced my lower ball joint and I am NOT for sure if they are correctly installed I have provided pictures. Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jun 20, 2015 at 1:02 PM
Advertisement
Avatar
JOHNNYT73
  • CERTIFIED EXPERT
  • 924 POSTS
If they are in the same direction (pointing downwards) as the previous then that looks ok. There may have been or needs to be a large snap ring that went along that top ridge of the ball joint? was there one on it when you took the old one off?
Jun 20, 2015 at 1:46 PM
Avatar
JOHNNYT73
  • CERTIFIED EXPERT
  • 924 POSTS
http://www.youtube.com/watch?v=Hw2e82Tic1g
Jun 20, 2015 at 1:48 PM
Advertisement
Avatar
ROYCAR71
  • MEMBER
  • 359 POSTS
Yes, I'm currently trying to put that on right now and that is son of a gun to get on even with my snap ring pliers Thanks.
Jun 20, 2015 at 2:08 PM
Avatar
ROYCAR71
  • MEMBER
  • 359 POSTS

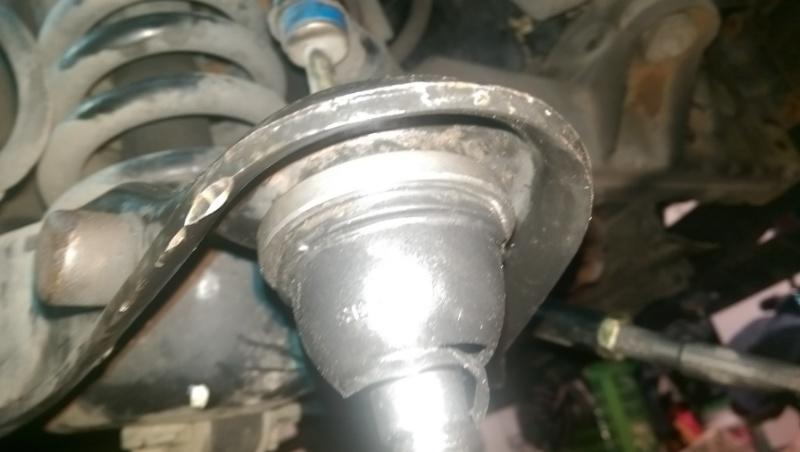

Lastly I tore the boot on the bottom is a possible to slip another boot over that?
Image (Click to enlarge)
Attached Media
Jun 20, 2015 at 2:29 PM
Avatar
JOHNNYT73
  • CERTIFIED EXPERT
  • 924 POSTS
You can't put another boot over it. You can replace the boot or just use that one.
Jun 20, 2015 at 2:32 PM
Avatar
ROYCAR71
  • MEMBER
  • 359 POSTS
Thank you.
Jun 20, 2015 at 2:40 PM
