Where are the o2 sensor locations of a 97 Dodge Stratus 2.5 liter v6?

1997 DODGE STRATUS
139,000 MILES
Avatar
RAWR1254
  • MEMBER
  • 1 POST
I found one under the car but the more I think about it as a struggle to get the part off it feels like it's too far back under the car and I think I need....the downstream one, if I remember right it was Bank 1 Sensor 1...but either way I just need to know where the one that isn't attached to the catty is located. I got it checked at Autozone a while ago and I lost the receipt with the code on it but it was definitely an o2 sensor I remember that, and when I looked it up online the code related to bank 1 Sensor 2 and I found out that that's downstream and I found the one that's really easy to find but after looking around a bit more online I found out the location so thanks anyway. Now It'd be nice to know an easy way to get to it because it's behind almost the entire bottom of the car.
Jun 23, 2012 at 5:49 PM
Advertisement
Avatar
CARADIODOC
  • CERTIFIED EXPERT
  • 34,306 POSTS
Hello,

Here is a guide and the locations of your oxygen sensors and a guide to help you get them changed out. Check you fuses first.

https://www.2carpros.com/articles/how-to-replace-an-oxygen-sensor

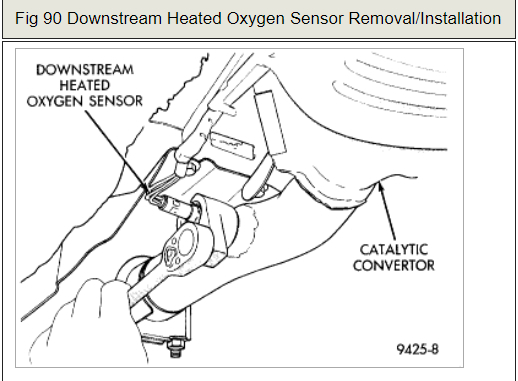

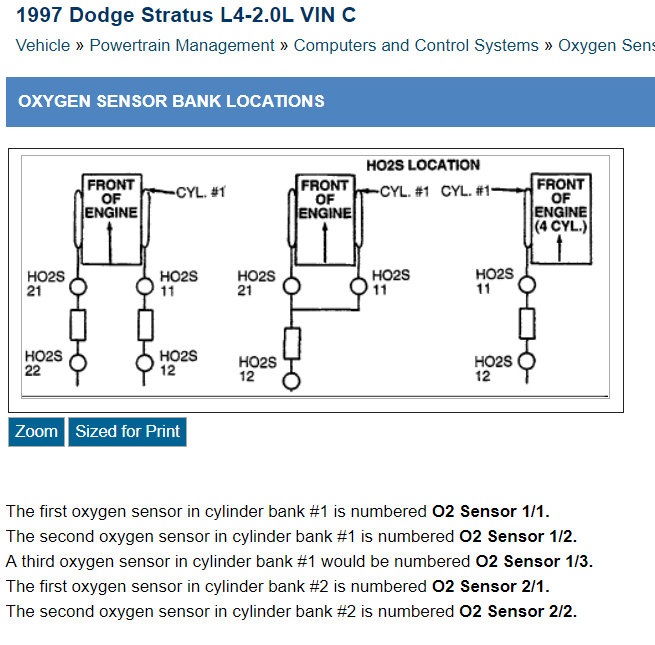

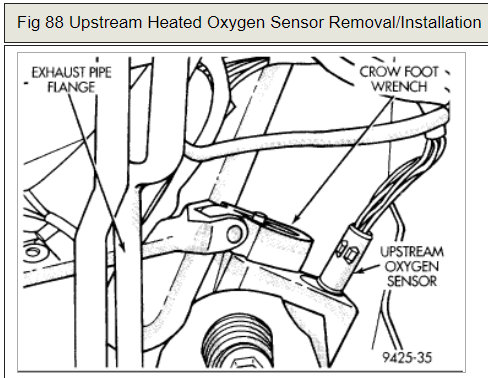

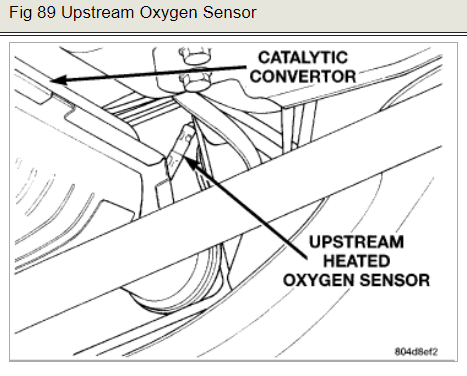

Here are the sensor locations. Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Aug 16, 2019 at 1:08 PM
Avatar
LINKINXP
  • MEMBER
  • 11 POSTS
OKey guys i can't find any other sensor!! so i replace this one but i am pretty sure that is not the Bank 1 sensor 1 ( which is the one i need) Look at the picture and please tell me where could be located and if this is the one?


https://www.2carpros.com/forum/automotive_pictures/171745_dscn0713_1.jpg

Okey i am going to add more pictures asking for the correct o2 sensor please advice


https://www.2carpros.com/forum/automotive_pictures/171745_dscn0715_1.jpg


https://www.2carpros.com/forum/automotive_pictures/171745_dscn0716_1.jpg


https://www.2carpros.com/forum/automotive_pictures/171745_dscn0718_1.jpg

Dec 3, 2020 at 10:31 AM (Merged)
Advertisement
Avatar
BLACKOP555
  • CERTIFIED EXPERT
  • 10,386 POSTS
i believe that is the sensor after the converter, if that is what that is before it. if that the catalytic converter, that is bank 1 sensor TWO. the 1st sensor should be on the exhaust manifold BEFORE the converter.

Here is a guide

https://www.2carpros.com/articles/how-to-replace-an-oxygen-sensor

Please let us know if you need anything else to get the problem fixed.

Cheers
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
LINKINXP
  • MEMBER
  • 11 POSTS
Thanks for answering so can i reach it from below or from above? thanks in advanced
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
BLACKOP555
  • CERTIFIED EXPERT
  • 10,386 POSTS
some prefer to reach it above some below, rent or buy a o2 socket to remove it without damaging the wires.

run the vehicle and let it warm up first before trying to remove it, be careful it will be hot.

use anti seize compound when you reinstall it if the new sensor does not come with it
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
LINKINXP
  • MEMBER
  • 11 POSTS
Where is the o2 sensor Bank 1 sensor 1 in a dodge stratus 97 2.4 ? i have a check engine light up! and i put the scanner , it says Bank 1 sensor 1.
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
BMRFIXIT
  • CERTIFIED EXPERT
  • 19,053 POSTS
1st sensor at the exhaust system
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
LINKINXP
  • MEMBER
  • 11 POSTS
I replace one , but i think it was the # 2 and is down too! so im kind of lost where is exactly ill try to find a picture thanks ;D
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
BMRFIXIT
  • CERTIFIED EXPERT
  • 19,053 POSTS
you have two
before and after the catalytic converter
which one did you replace
# 1 is before and # 2 is after the converter
Simple and Easy
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
LINKINXP
  • MEMBER
  • 11 POSTS
It must be #2 cause the scanner still saying Bank 1 sensor 1 :D so to reach it its under the car right?
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
BMRFIXIT
  • CERTIFIED EXPERT
  • 19,053 POSTS
Check in the exhaust manifold have # 1 oxygen sensor
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
BMRFIXIT
  • CERTIFIED EXPERT
  • 19,053 POSTS


https://www.2carpros.com/forum/automotive_pictures/99387_O2_1.jpg

Dec 3, 2020 at 10:31 AM (Merged)
Avatar
LINKINXP
  • MEMBER
  • 11 POSTS
Cool!! Thanks so that one has 4 cables right?? cause i saw another one! near that and it had 2 cables!...thanks for the picture. and that one is Upstream!? im sure!
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
BWAMSLEY
  • MEMBER
  • 1 POST
I rear ended someone a while back, thought most of the damage was cosmetic. Replaced the AC condenser and Radiator. Had the car running then it just quit and would not start again. Was told that it needed a new PCM. Replaced the PCM and it is still blowing the fuse that controls the PCM, ASD Relay, Injectors, Alternater Field, DIS Coil, Oxygen Sensor Heater, EGR Solenoid, Downstream Oxygen Sensor.

We were thinking there must be a short someplace. Any Ideas?
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
BMRFIXIT
  • CERTIFIED EXPERT
  • 19,053 POSTS
4 wires
Dec 3, 2020 at 10:31 AM (Merged)
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Hello, when does the fuse blow? As soon as you plug it in, when you turn the key on or when you crank it?

If you think the problem is a circuit controlled by the asd relay, unplug those circuits one at a time. Injectors, primary circuits for the coil, o2 sensor.

I don't have the individual amp draws for the circuits, so unplugging them may not be a conclusive test.
Dec 3, 2020 at 10:31 AM (Merged)
