I am trying to change my transmission control solenoid, but can't find where the part is.
Feb 10, 2015 at 1:54 PM
Advertisement
DR LOOT
CERTIFIED EXPERT
2,311 POSTS

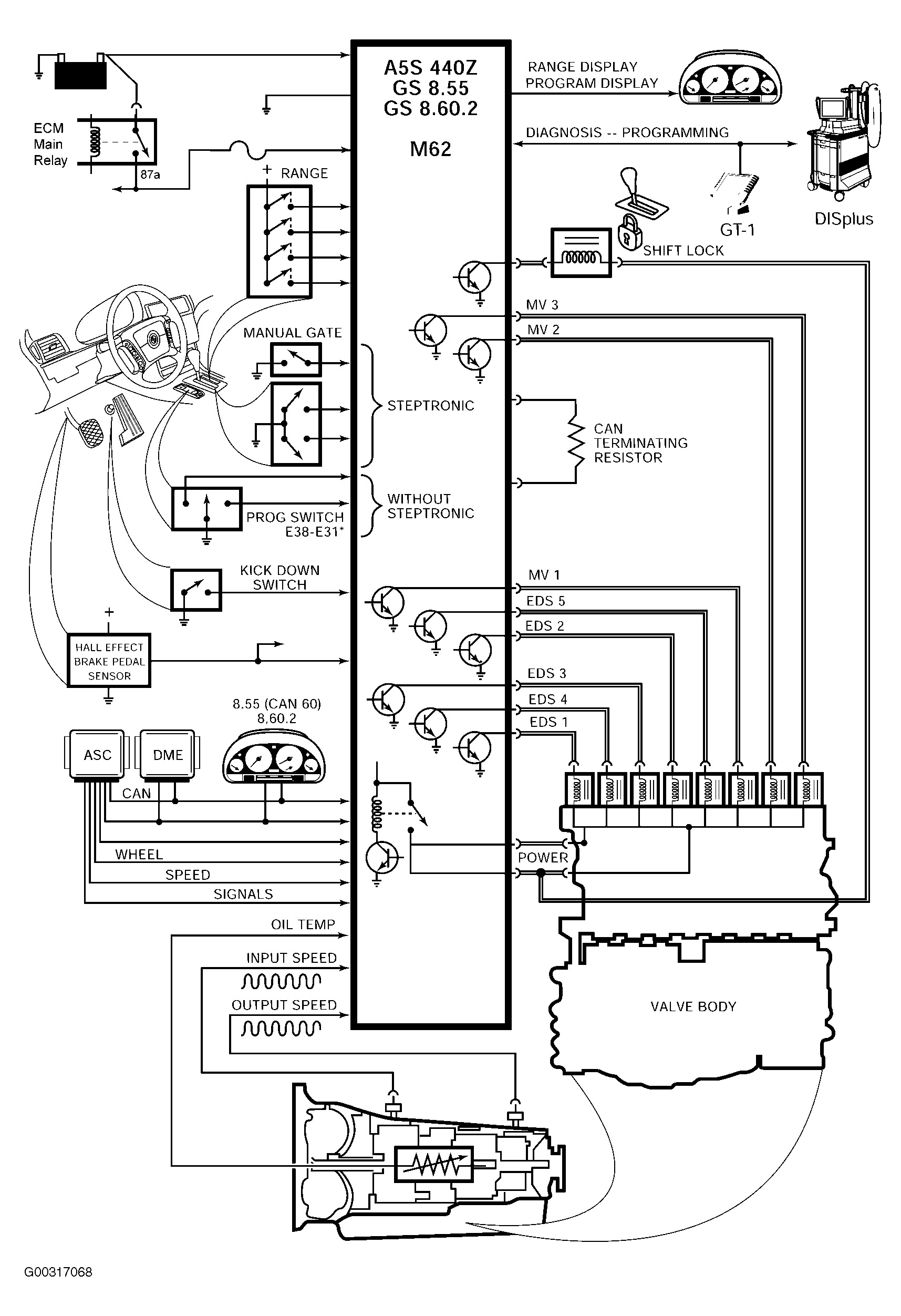

I'm assuming you're looking for a transmission control module is located in the engine compartment on the right side against the firewall
Image (Click to enlarge)
Feb 11, 2015 at 9:10 PM
FLGUY
MEMBER
3 POSTS
Sorry it's actually the shift solenoid
Feb 12, 2015 at 4:15 AM
Advertisement
DR LOOT
CERTIFIED EXPERT
2,311 POSTS
I apologize, the shift solenoids are controlled by the transmission control module if I understand you correctly you want to get into the valve body of the transmission and replace the shift solenoid?
Feb 12, 2015 at 8:27 AM
FLGUY
MEMBER
3 POSTS
Yes that is it.

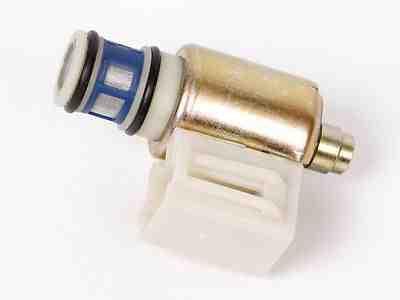

Image (Click to enlarge)
Feb 12, 2015 at 11:53 AM
DR LOOT
CERTIFIED EXPERT
2,311 POSTS

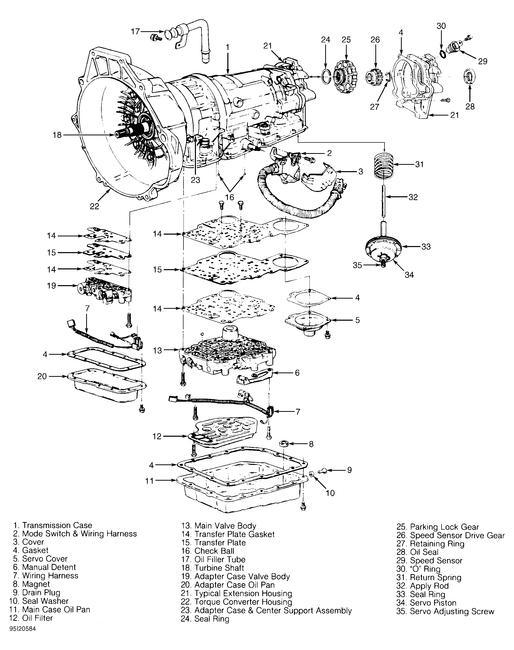

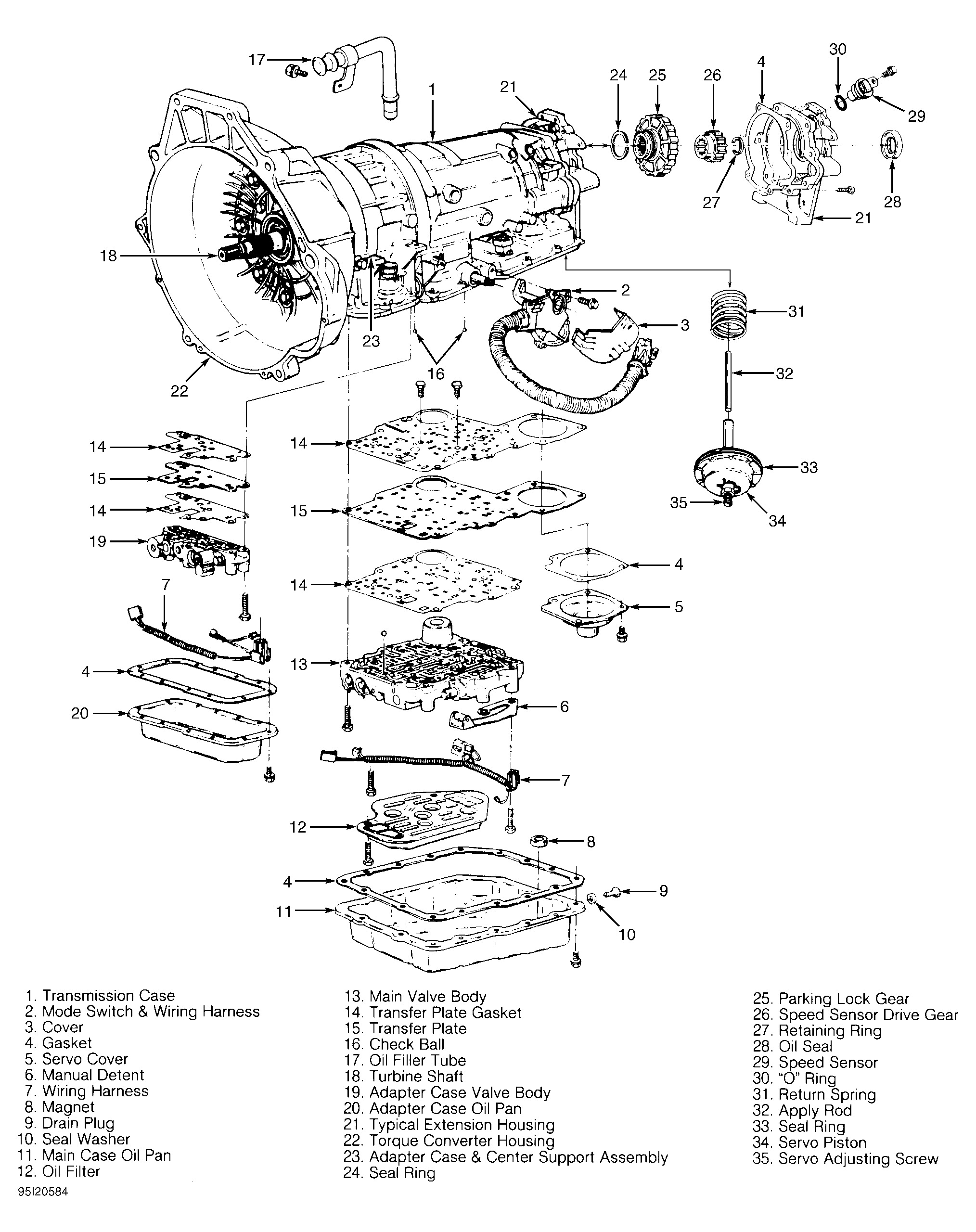

I am having a hard time finding information on that transmission, but here is a schematic of it what I would do is remove the pan and the shift solenoid should be plugged into the valve body number 13. Hope that helps you out.
Image (Click to enlarge)
Feb 12, 2015 at 8:42 PM
DR LOOT
CERTIFIED EXPERT
2,311 POSTS

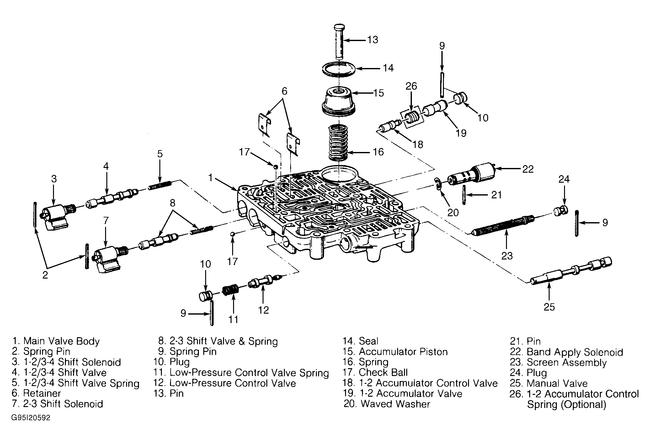

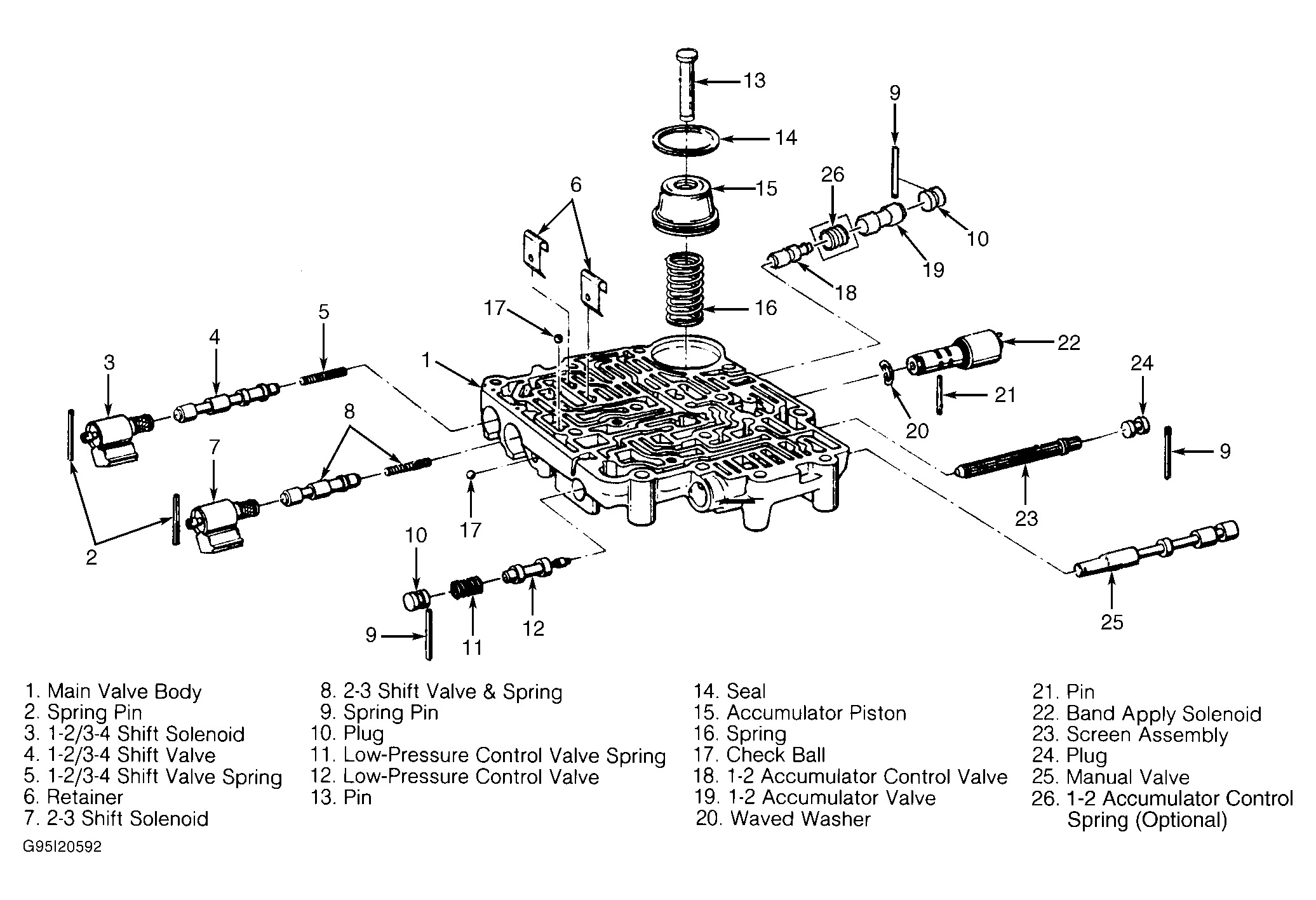

I found a better pic of the valve body that shows all the solenoid
