Engine idles bad and black smoke

1996 NISSAN HARDBODY
18,000 MILES • 2.4L • 4 CYL • 4WD • MANUAL
Avatar
TONY’S NISSAN
  • MEMBER
  • 1 POST
Truck won’t stay running, at idle goes from about 800 rpm to below 400 then sputters and Shuts off. TPS sensor has been removed and reinstalled to check for problem when I drive it the engine acts like the fuel has been cutoff and it stumbles then it clears up for a few seconds then does it again.
Jan 30, 2019 at 8:21 PM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hi Tony, my name is Alex and I will be helping you today.

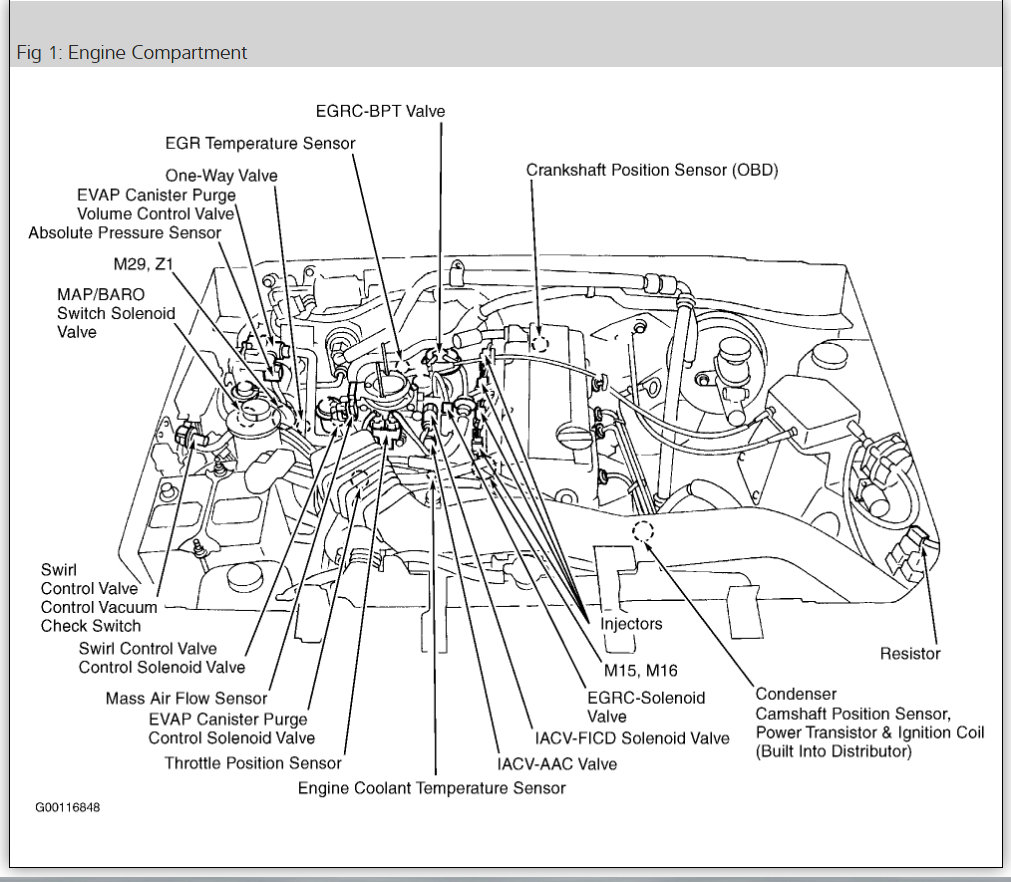

This sounds like it could be a problem with your Idle Air Control Valve(IAC). Here is a component diagram and a helpful link for you. Let us know what you find out.
https://www.2carpros.com/articles/engine-black-smoke https://www.2carpros.com/articles/how-to-replace-an-idle-speed-control-motor-iac
Image (Click to enlarge)
Attached Media
Jan 31, 2019 at 7:41 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Can we run the codes to see if any comes up? here is a guide that will help you:

https://www.2carpros.com/articles/checking-a-service-engine-soon-or-check-engine-light-on-or-flashing

Please run down this guide and report back.
Jan 31, 2019 at 4:42 PM
Advertisement
Avatar
TONY’S NISSAN
  • MEMBER
  • 1 POST
Have replaced idle air control valve now truck revs up to 4000 rpm as soon as I started it is it possible iac new part faulty
Feb 17, 2019 at 6:35 AM
