Fuel pump lcoation

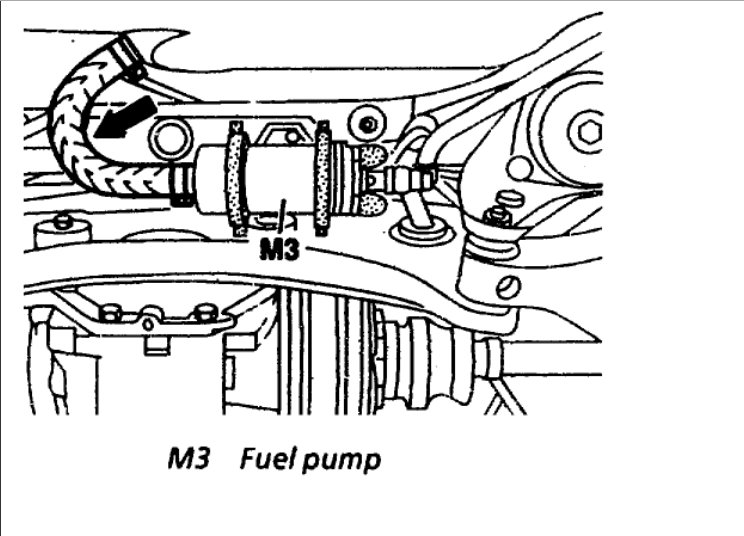

The fuel pump is under the car near the rear differential. You will need to raise the car safely.

Here is a guide to help you with that:

https://www.2carpros.com/articles/jack-up-and-lift-your-car-safely

I would do the fuel filter as well.

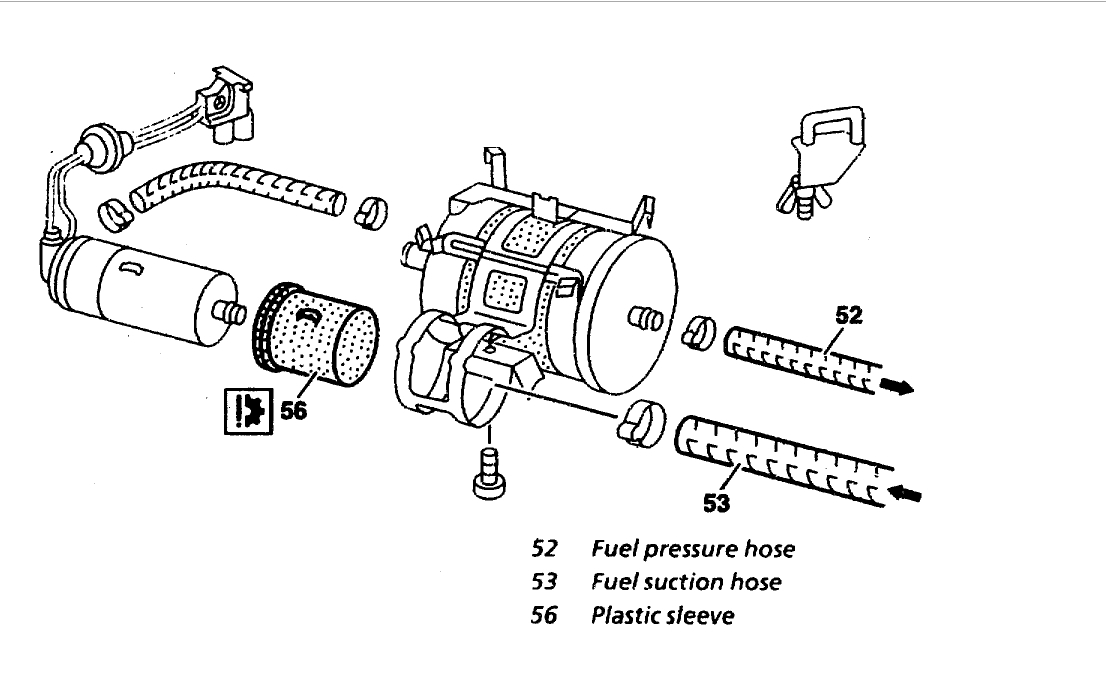

Below are the diagrams for you car.

Please let us know what you find.

Cheers

How can you tell if it is the fuel relay or the pump? And where is the relay located? Send picture if possible please. Do you have a diagram of the complete fuel system?

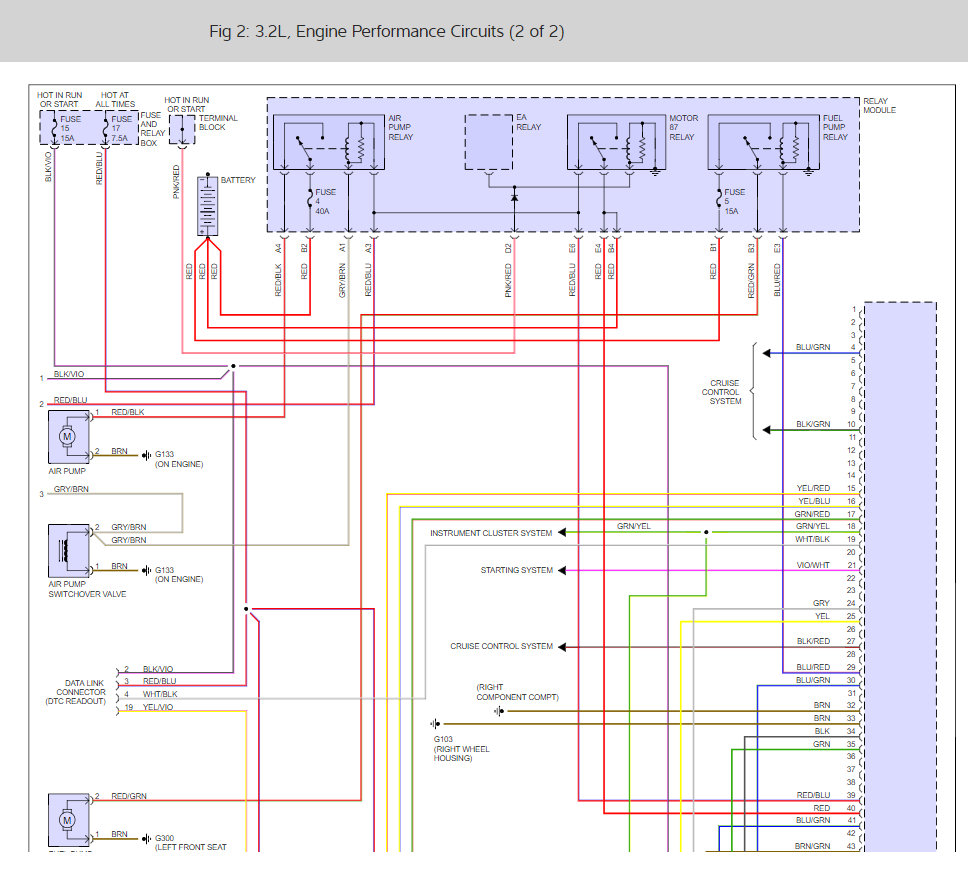

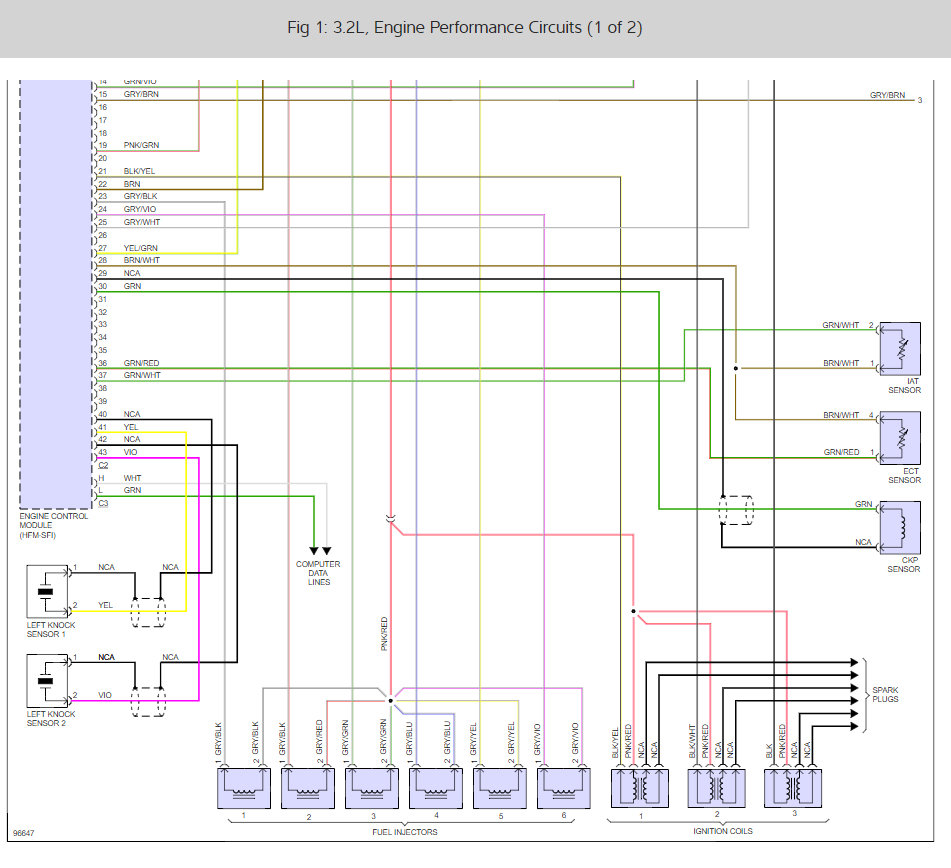

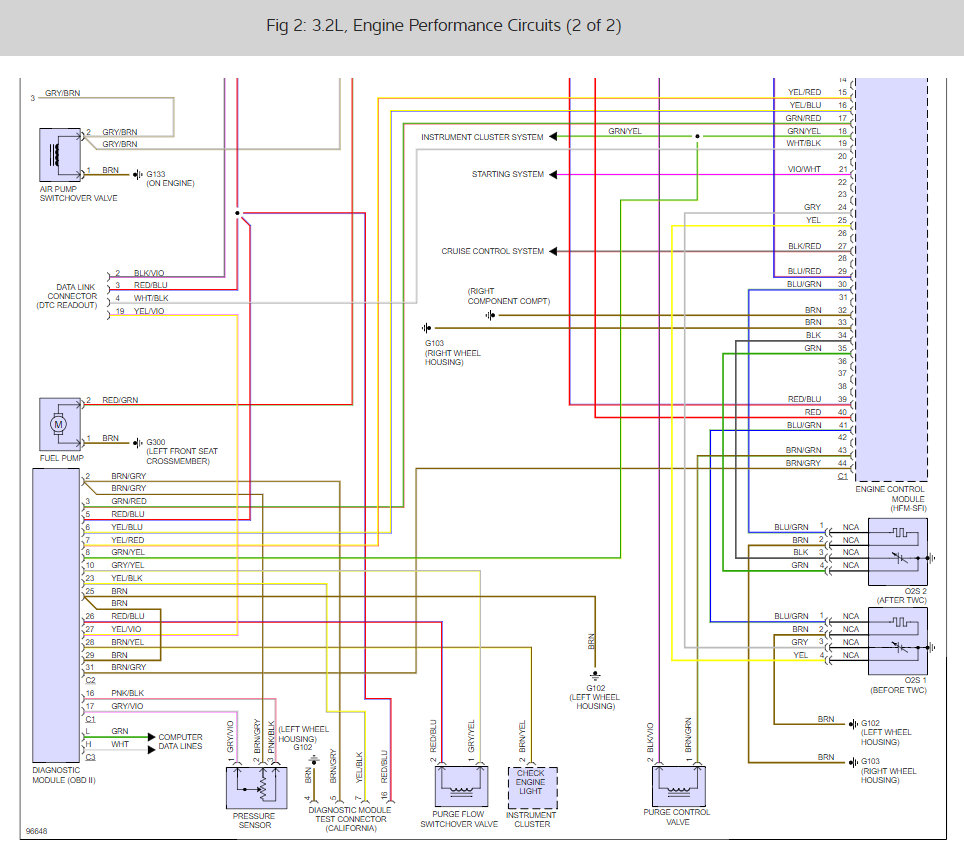

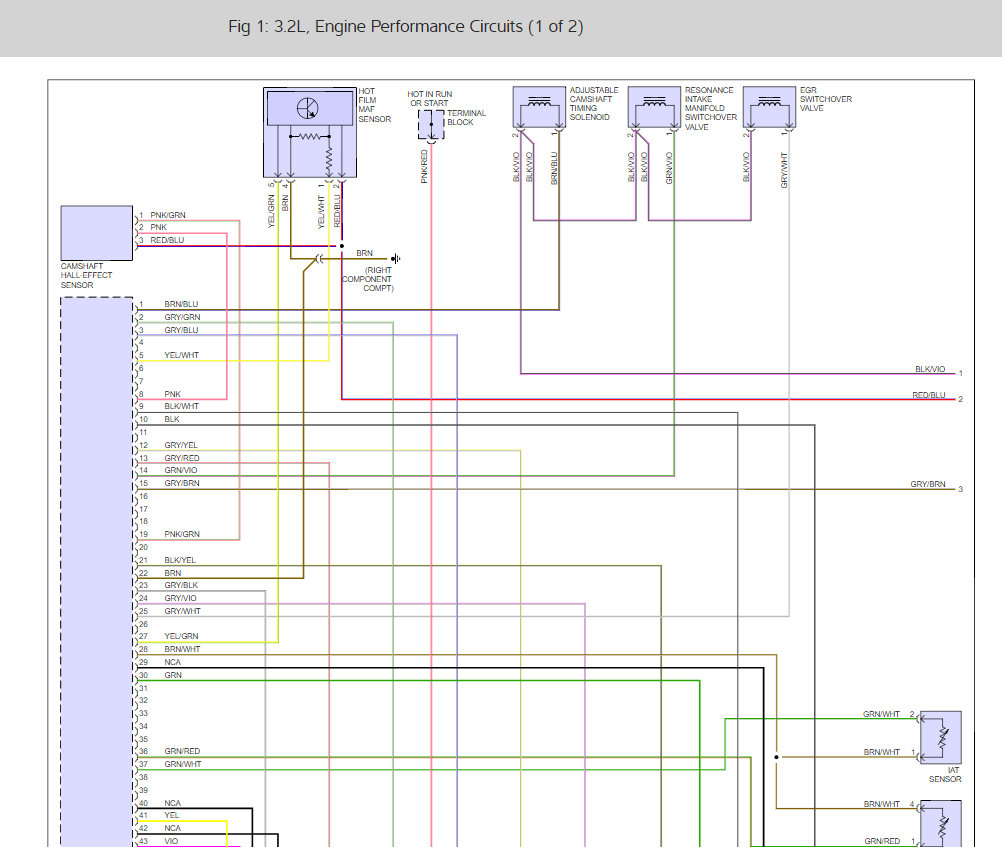

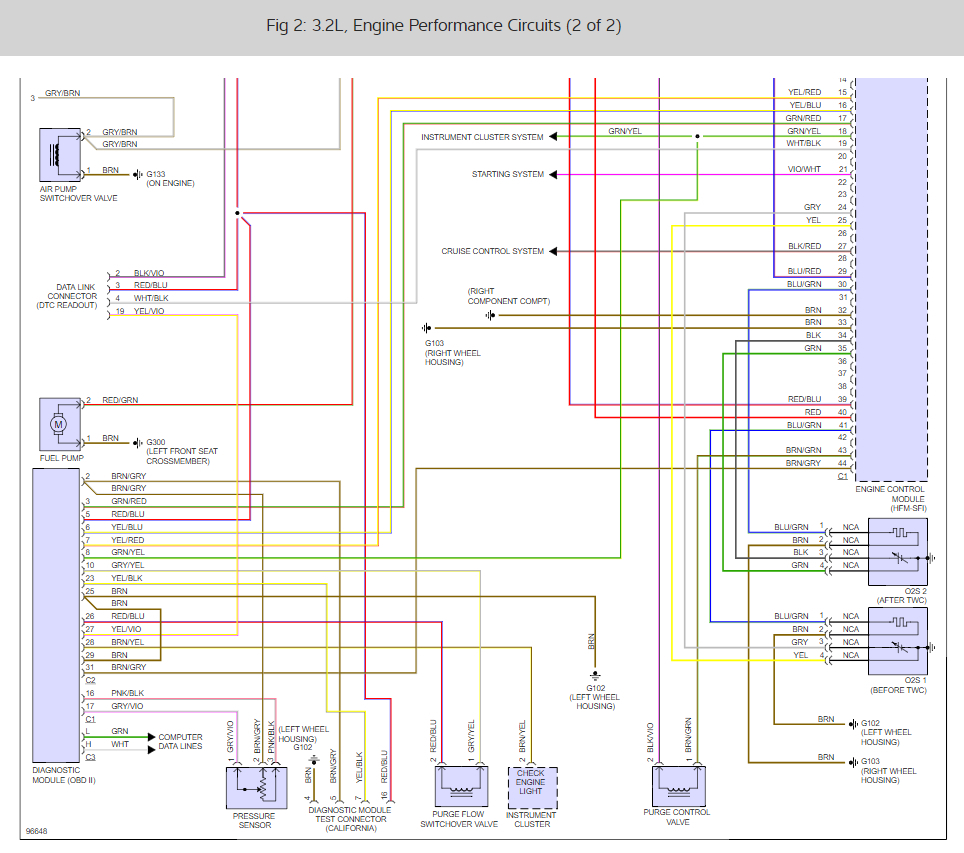

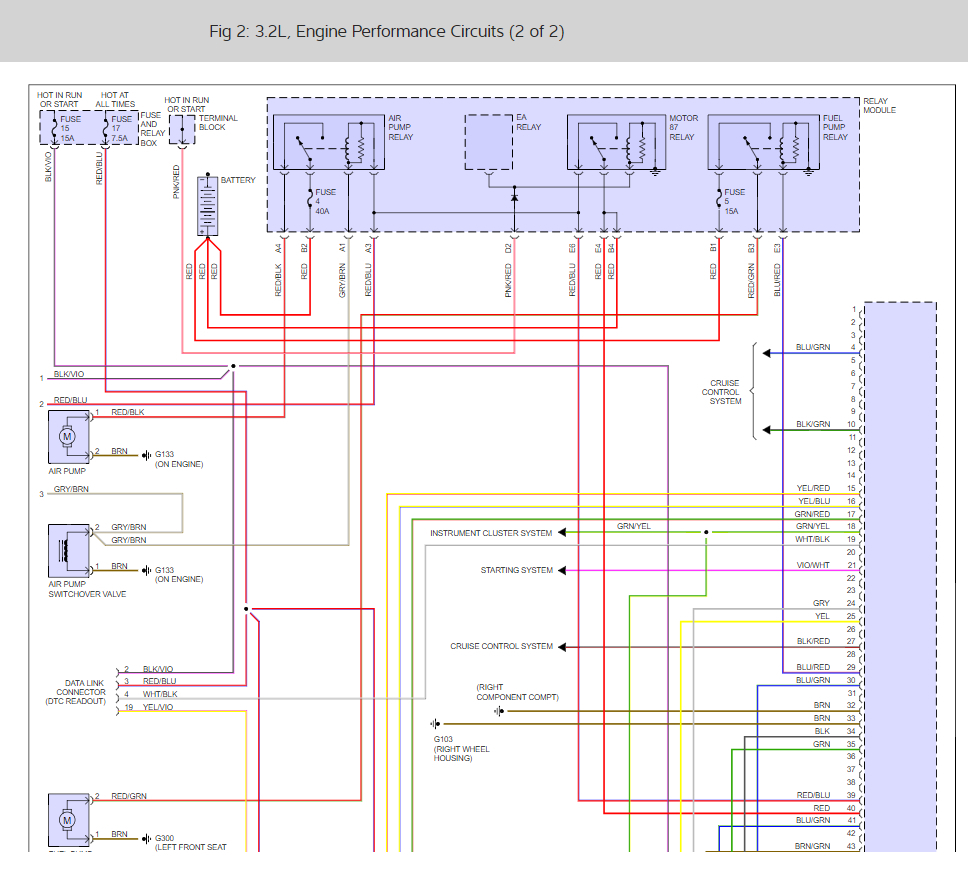

Yes, I have found the wiring diagrams for the engine and the fuel pump for you and a couple guides to help you do some testing

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

and

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

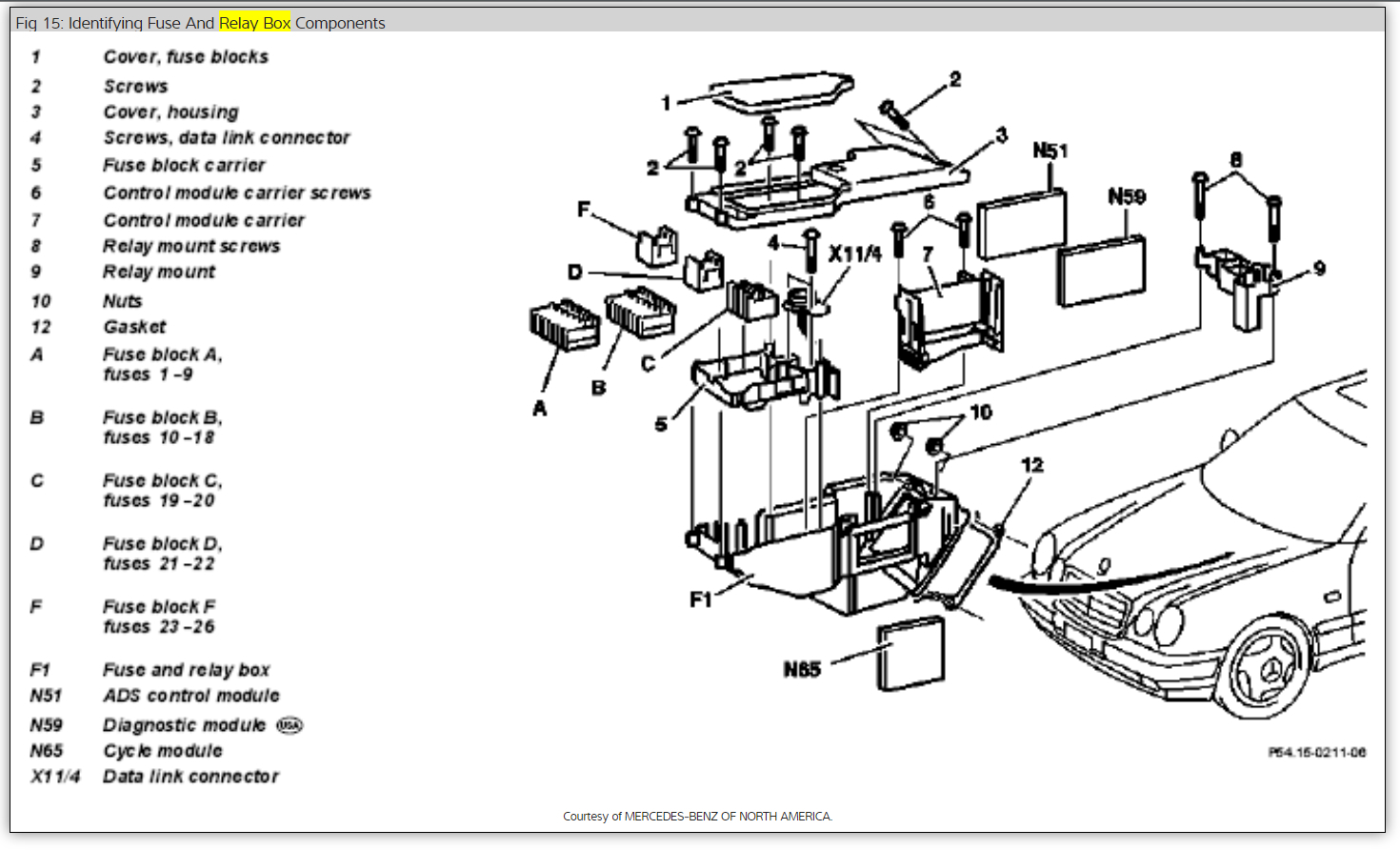

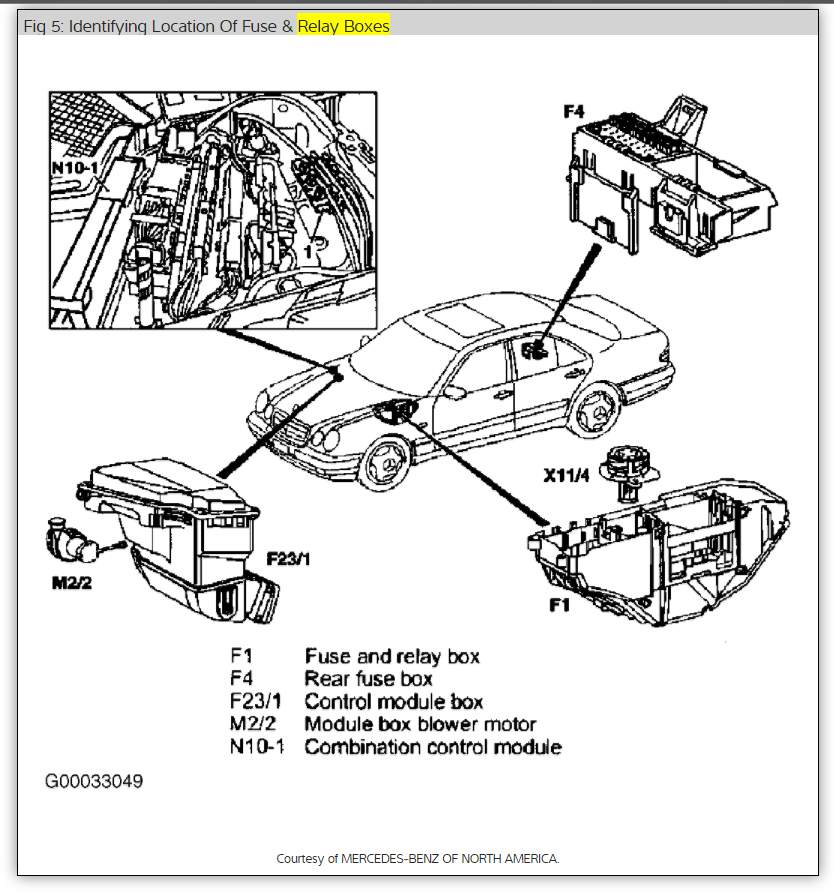

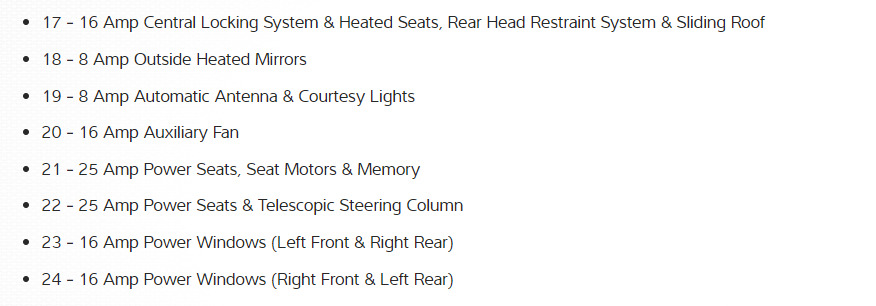

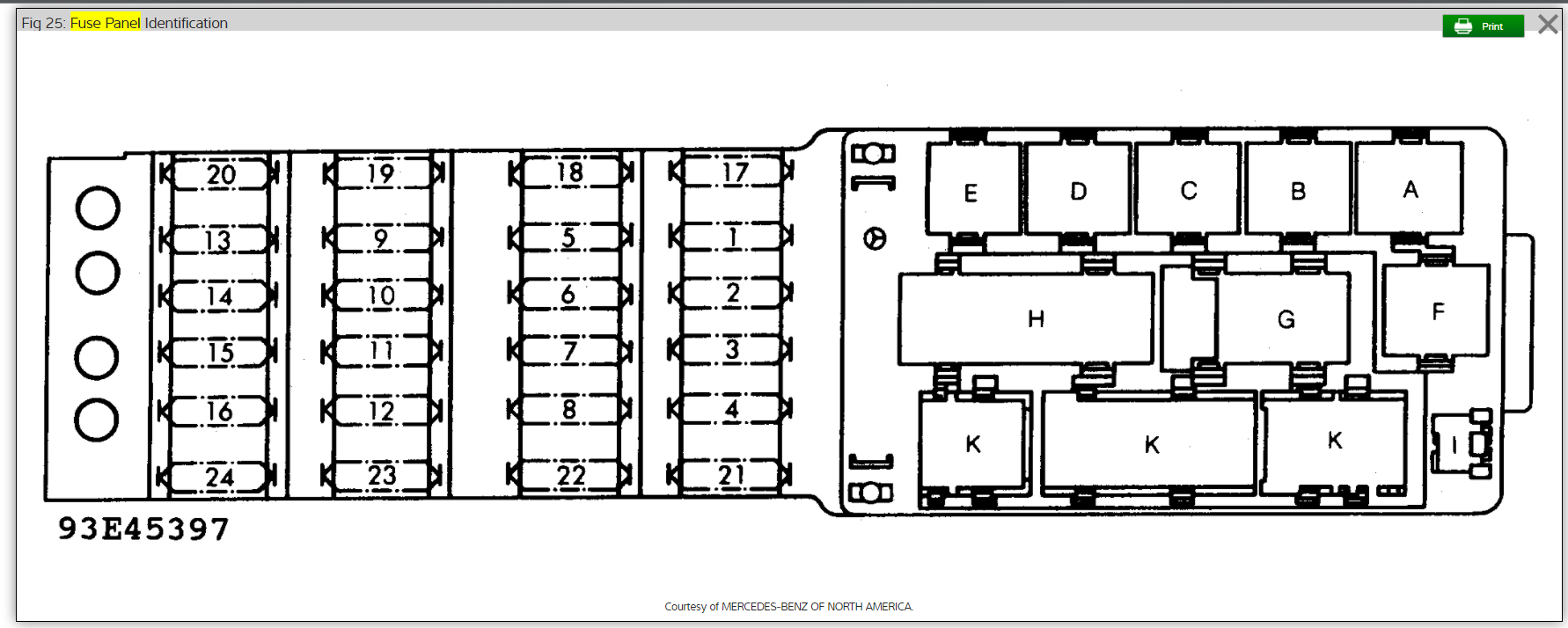

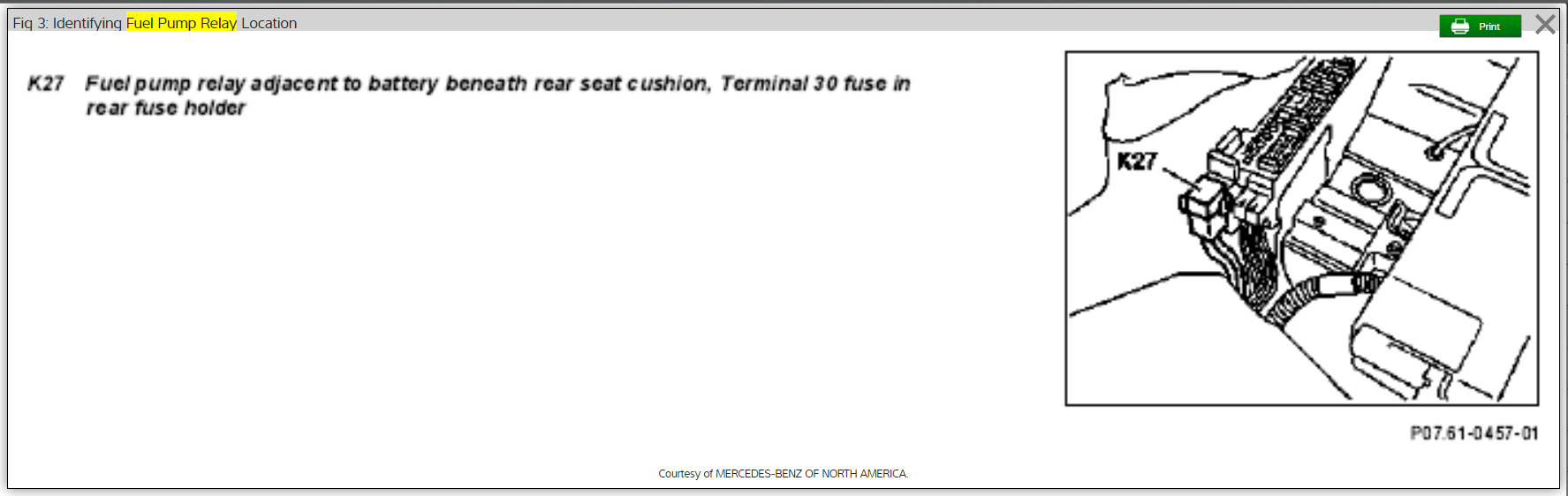

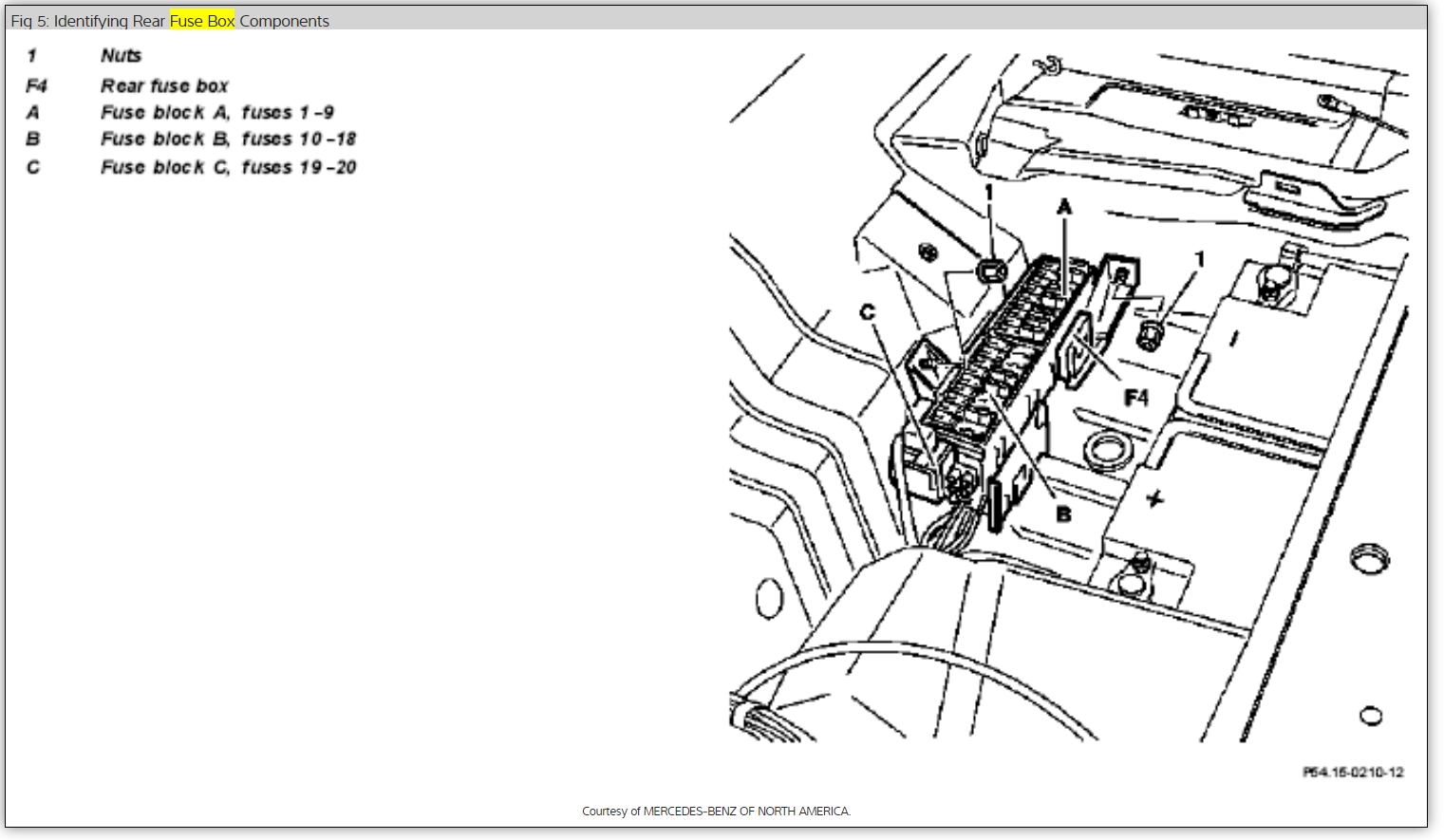

The fuel pump relay is near the battery check out (below).

Please let us know

Thanks, this site is the best.
