1996 Mazda Protege Driver side CV Joint

1996 MAZDA PROTEGE
1.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
DARKANGEL4
  • MEMBER
  • 1 POST
I can't get to the CV joint to pull it out because the driver side joint goes behind a metal plate with 4 bolts. This plate looks as if it holds up the transmission. How do I get the Joint out from behind.
Dec 14, 2014 at 10:53 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

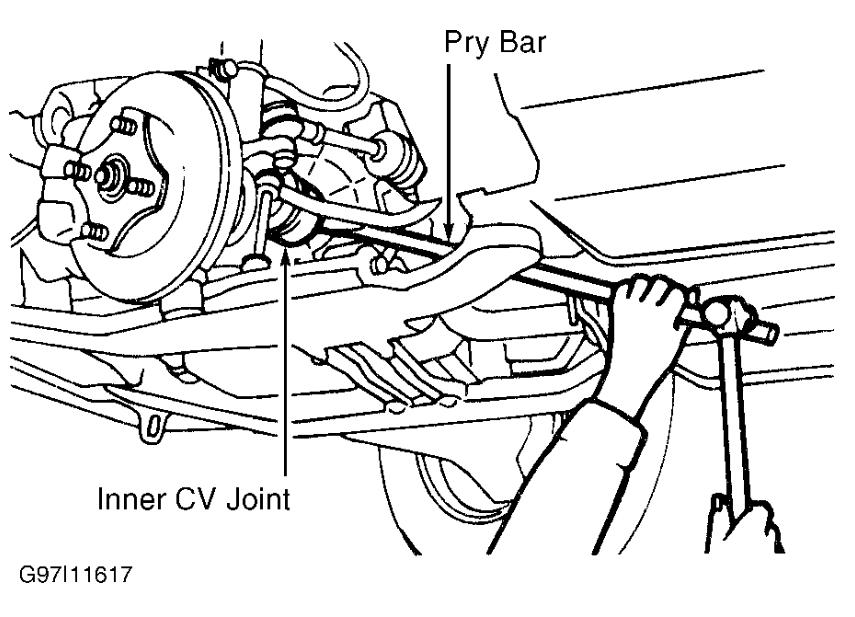

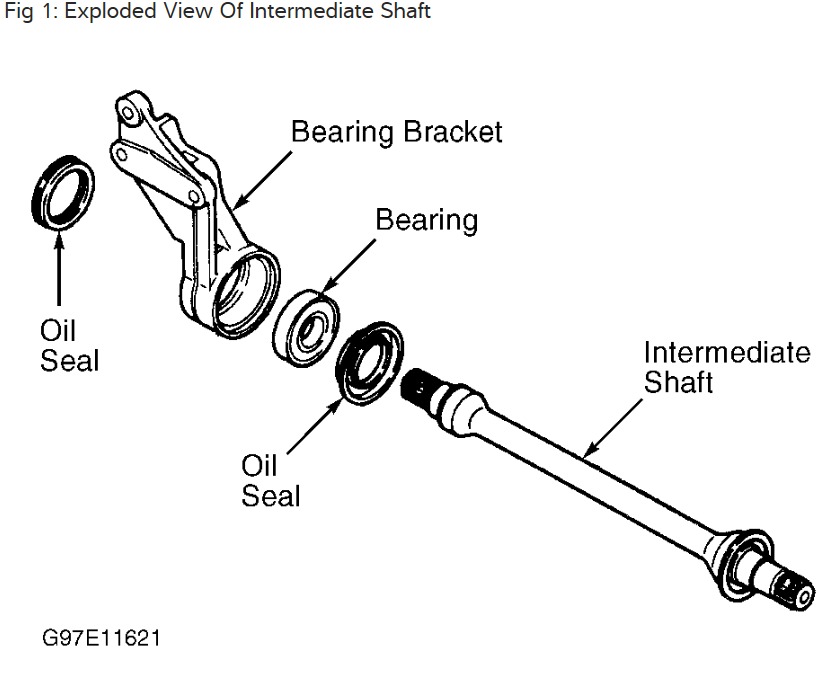

see pic for axle. if pulling intermediate axle the carefully remove bearing bracket securing bolts securing intermediate shaft. carefully remove shaft without damageing seal
Images (Click to enlarge)
Attached Media
Attached Media
Dec 15, 2014 at 6:45 AM
