1996 mazda rustler rear braking shoes replace

1996 MAZDA
205,000 MILES
Avatar
CARDI
  • MEMBER
  • 1 POST
Need to know how to assemble the 4 springs on the shoes please
If you could send diagram i will appreciate
Oct 13, 2011 at 12:27 PM
Advertisement
Avatar
FIXITMR
  • CERTIFIED EXPERT
  • 9,990 POSTS
this is why i only do 1 side at a time so i can reference other side for reassembly if i need to.
Oct 13, 2011 at 12:40 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Vehicle is not listed in our database.

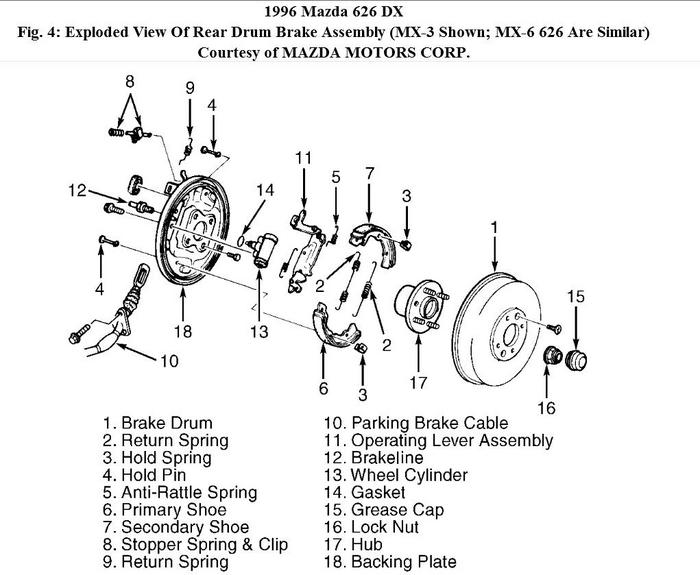

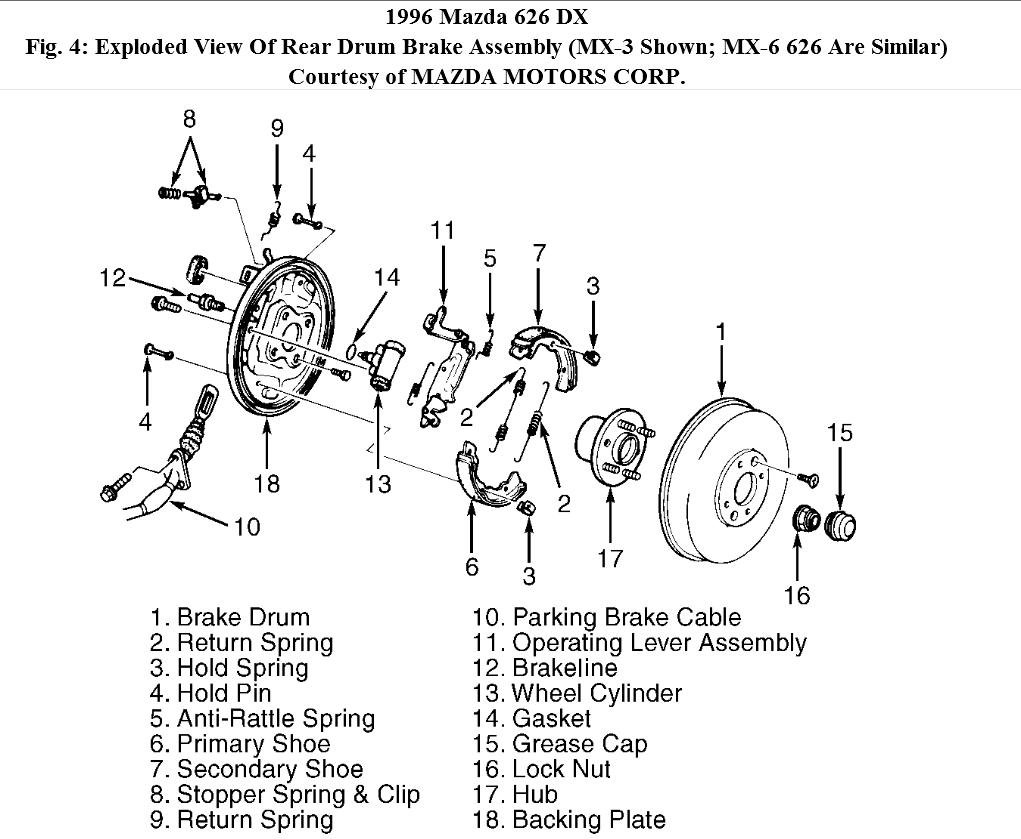

See if the following is of any help.
Image (Click to enlarge)
Attached Media
Oct 13, 2011 at 2:49 PM
