stereo diagram

1996 DODGE INTREPID
6 CYL • FWD • AUTOMATIC
Avatar
JDM14000
  • MEMBER
  • 1 POST
i have a 96 dodge intrepid i need to know where the stereo wires go colors and speakers
Mar 28, 2011 at 1:09 AM
Advertisement
Avatar
CARADIODOC
  • CERTIFIED EXPERT
  • 34,306 POSTS
These colors are from a '97 Caravan but they should be the same for your car:

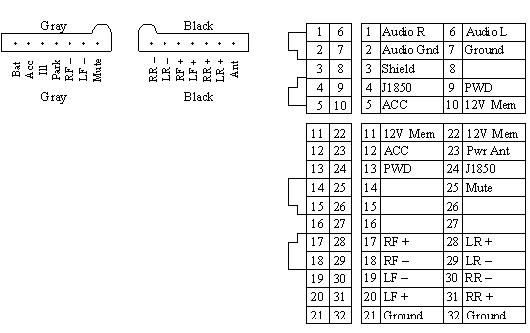

Gray plug, starting away from the keyway:

Pin 1 is not used
Brown / Red: LF speaker -
Dark Blue / Red: RF speaker -
Yellow / Black: tail lights (dims the display)
Orange: dash lights (tells the display how much to dim)
Red / White: 12 volts from ignition switch
Pink: 12 volts all the time (station preset memory and clock)

Black plug, starting away from keyway:

Dark Green / Red: Power antenna / remote amp
Brown / Yellow: LR speaker +
Dark Blue / White: RR speaker +
Dark Green: LF speaker +
Violet: RF speaker +
Brown / Light Blue: LR speaker -
Dark Blue / Orange: RR speaker -
Mar 28, 2011 at 1:47 AM
Avatar
CARADIODOC
  • CERTIFIED EXPERT
  • 34,306 POSTS
Use the two plugs on the left. The big ones on the right are for the newer style plugs.
