thermostat leak?

1996 DODGE INTREPID
107,270 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST

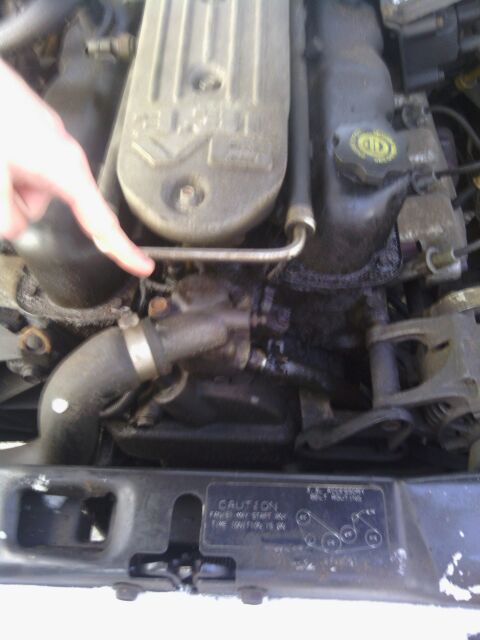

It is leaking engine coolant from a piece that has a crack. The piece is located right in front of the engine. What is this piece?
Image (Click to enlarge)
Attached Media
Jan 7, 2013 at 5:50 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

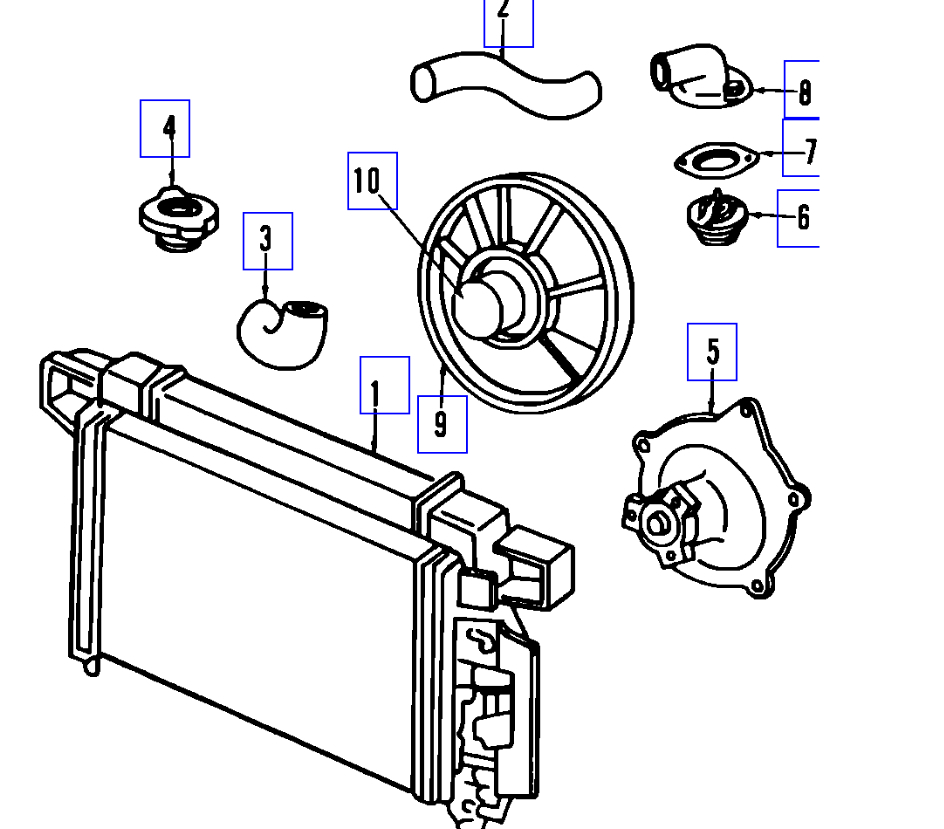

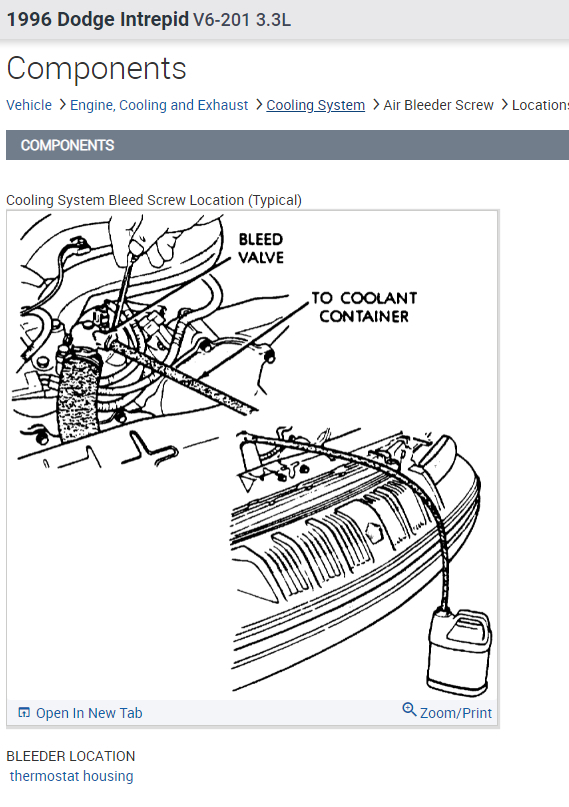

That is the thermostat housing. Typically the leak comes from a faulty gasket on those housings.
You can take that housing off simply by taking those mounting bolts off. You will only need simple hand tool.

Remember to only work on the cooling system when the engine is cool.

https://www.2carpros.com/articles/how-an-engine-thermostat-works

https://www.2carpros.com/articles/engine-cooling-system

Please let me know of any questions.

Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 2, 2021 at 2:21 PM
