My 4 wheel drive went out of my truck and I changed the actuator and it still didn't work. Got to looking at the fuse box and the fuse for the transmission is not getting any juice when I use a tester in that socket. Everywhere else there is connection. What are my options. I hunt and use my 4 wheel drive often. Any help would be greatly appreciated. Thanks
Mar 26, 2014 at 1:29 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
I looked at 4wd fuse 24--25 amp for k1500--5.7L engine. Voltage for that fuse circuit comes from ignition switch. Can't tell if problem with ignition switch or wiring circuit?
Mar 26, 2014 at 1:47 PM
Avatar
JPFITCH
  • MEMBER
  • 12 POSTS
It is a 10 amp fuse that is in the transmission slot the is not blown. When i take a tester to it, no juice with or without fuse in it, all other fuses work fine.
Mar 26, 2014 at 2:23 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

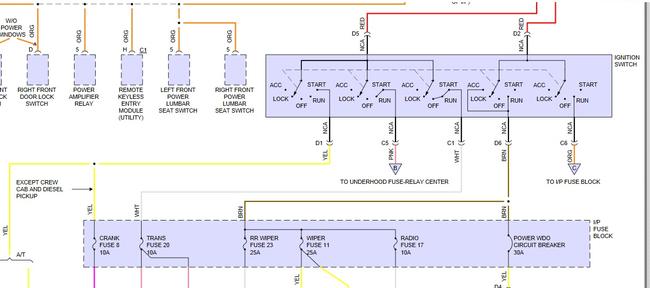

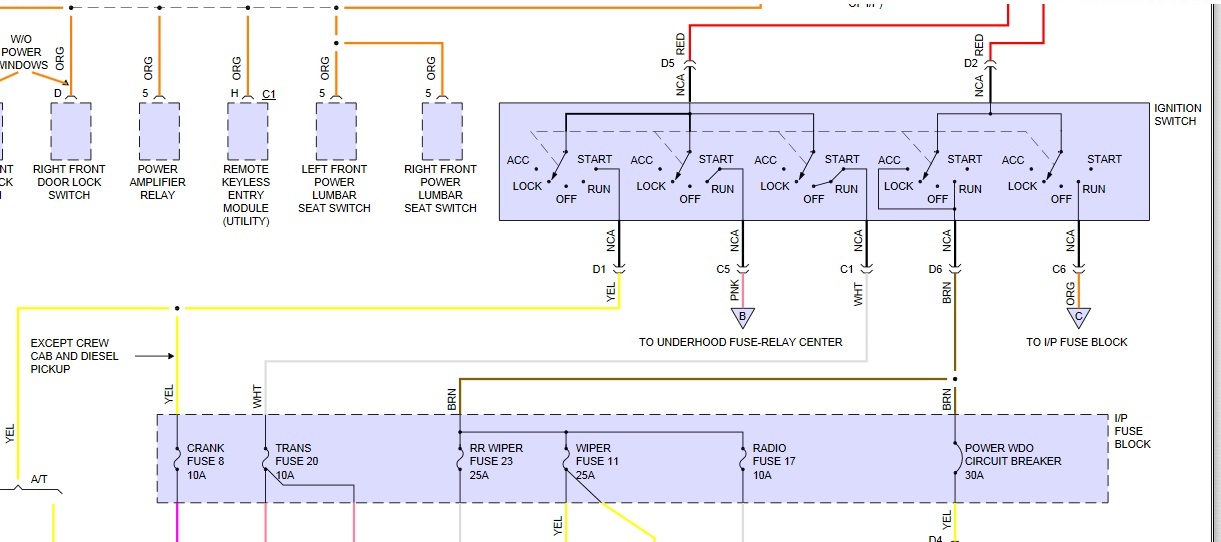

Trans fuse 20--10amp, voltage for that comes from ignition switch. Note the diagram. It's hot in off--on--start. White wire from ignition switch.
