Fuel pump not working

1996 CHEVROLET CAPRICE
190,000 MILES • 4.3L • V8 • 2WD • AUTOMATIC
Avatar
BILL SHOTWELL
  • MEMBER
  • 2 POSTS
Fuel pump problem I think. Do not hear it running. The gas gauge shot up to show a full tank when it only has a half. Sometimes it tries to start. Checked the connection as the gas tank for volts and it shows 8.2 volts. Is that enough to run it. Is it a relay? The fuse is good.
Jun 24, 2015 at 12:30 PM
Advertisement
Avatar
JOHNNYT73
  • CERTIFIED EXPERT
  • 924 POSTS
Quickest way to check is to go to a parts store and rent a fuel pressure gauge. Check fuel pressure when the key is turned to the "on" position not "run" and see what your readings are. If no pressure then I would replace the pump.

Here is a link to an article from this site with step by step instructions and pictures explaining the process of checking the fuel system pressure, regulator and fuel pump in less than fifteen minutes:

https://www.2carpros.com/articles/how-to-check-fuel-system-pressure-and-regulator
Jun 24, 2015 at 1:00 PM
Avatar
ELFONDU
  • MEMBER
  • 1 POST
Looking at identical symptoms, on similar miles. What did it end up being, friend?
Aug 17, 2018 at 10:01 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
With only eight volts at the pump I would say its the connector at the pump or the relay. Here is a guide to help you test the relay and the location:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

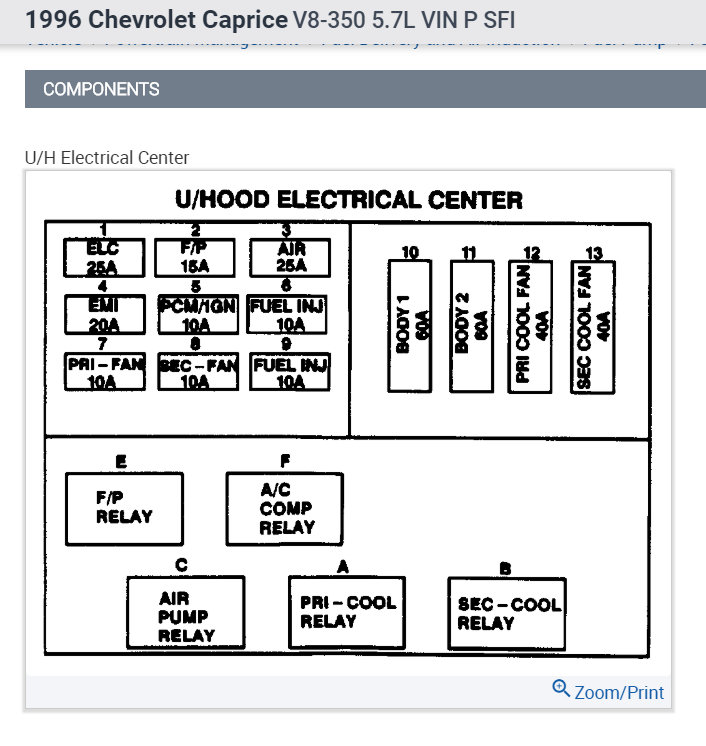

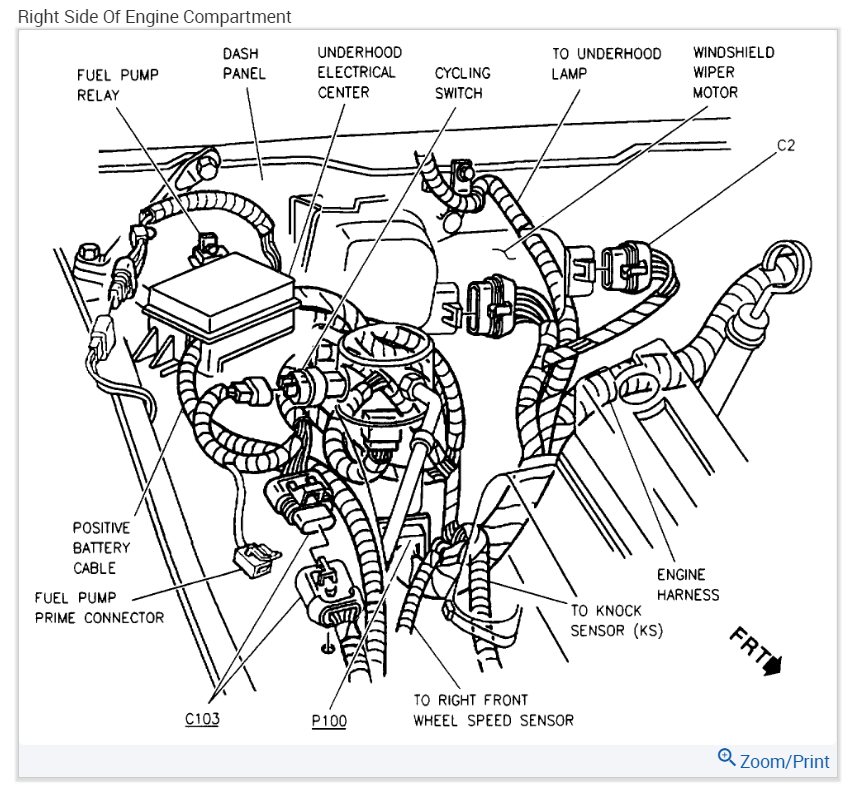

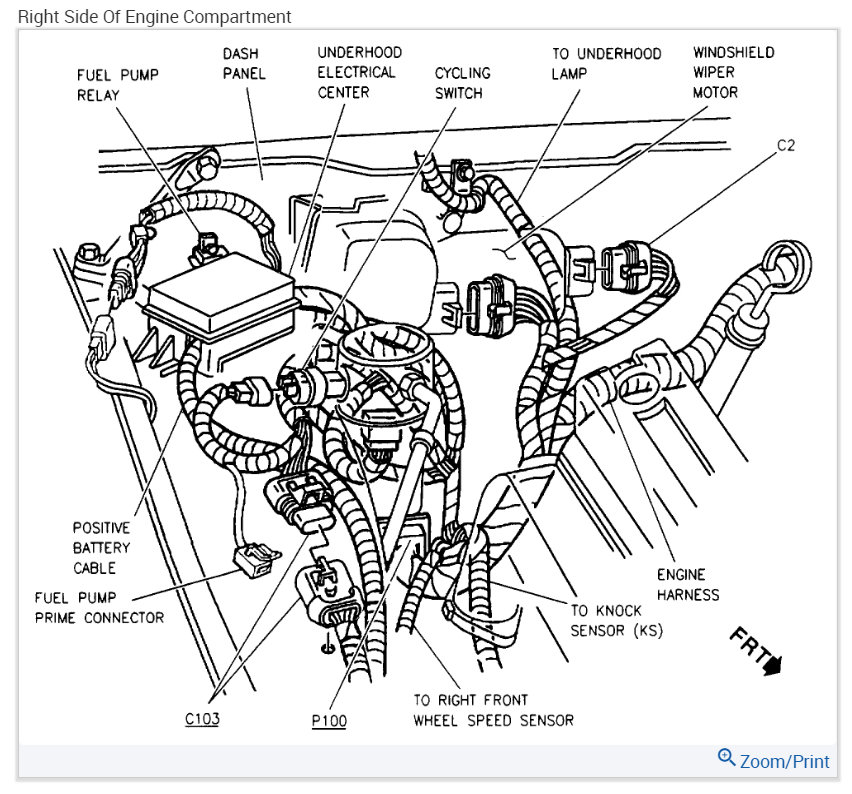

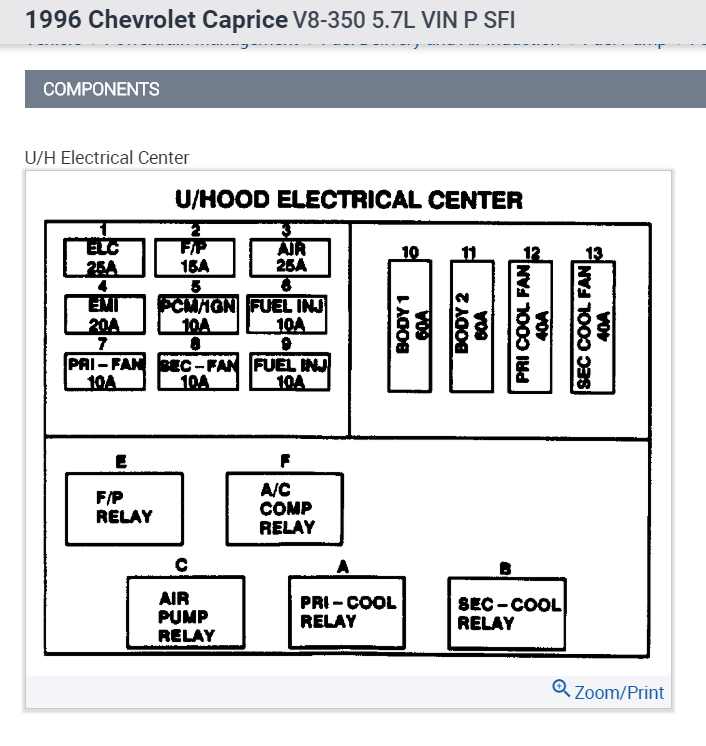

Check out the diagrams (below). Please let us know what happens.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Aug 21, 2018 at 11:05 AM
