How do i replace the Serpentine Belt before it completely breaks off??

1996 ACURA TL
222,876 MILES
Avatar
DMS1008
  • MEMBER
  • 16 POSTS

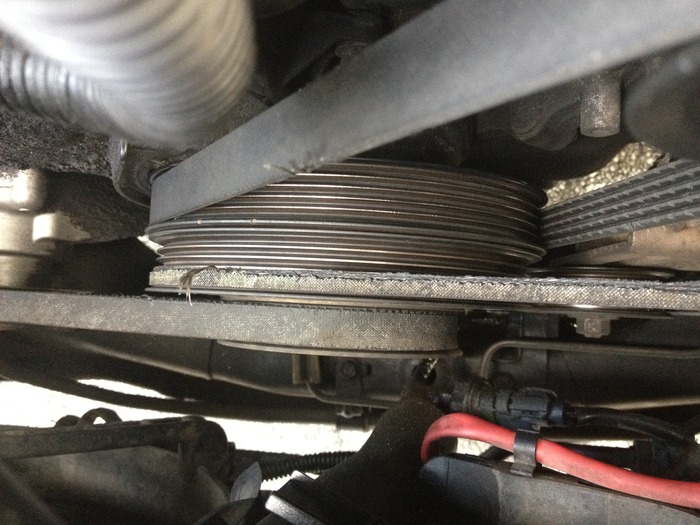

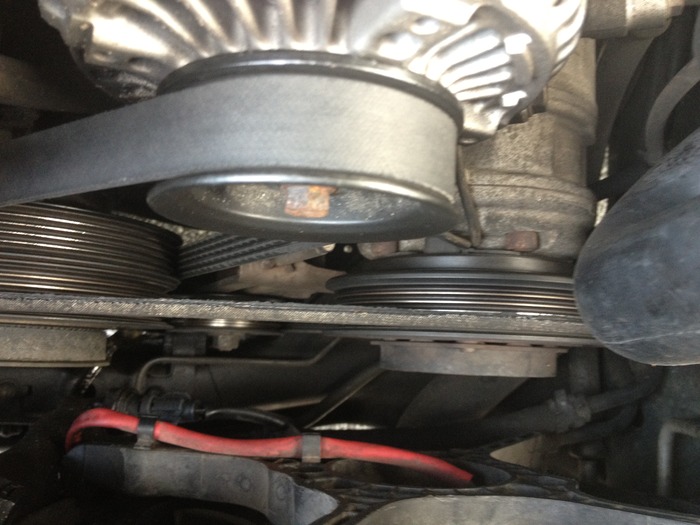

How to replace a Serpentine belt on '96 Acura 2.5TL? Pretty positive its the serpentine. Last night when i turned on my A/C and defrost i heard a squealing. the belt has been frayed for a while now its almost gone. The belt is literally down to like 1/4 of inch in width if not less.
Images (Click to enlarge)
Attached Media
Attached Media
Sep 19, 2012 at 1:42 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

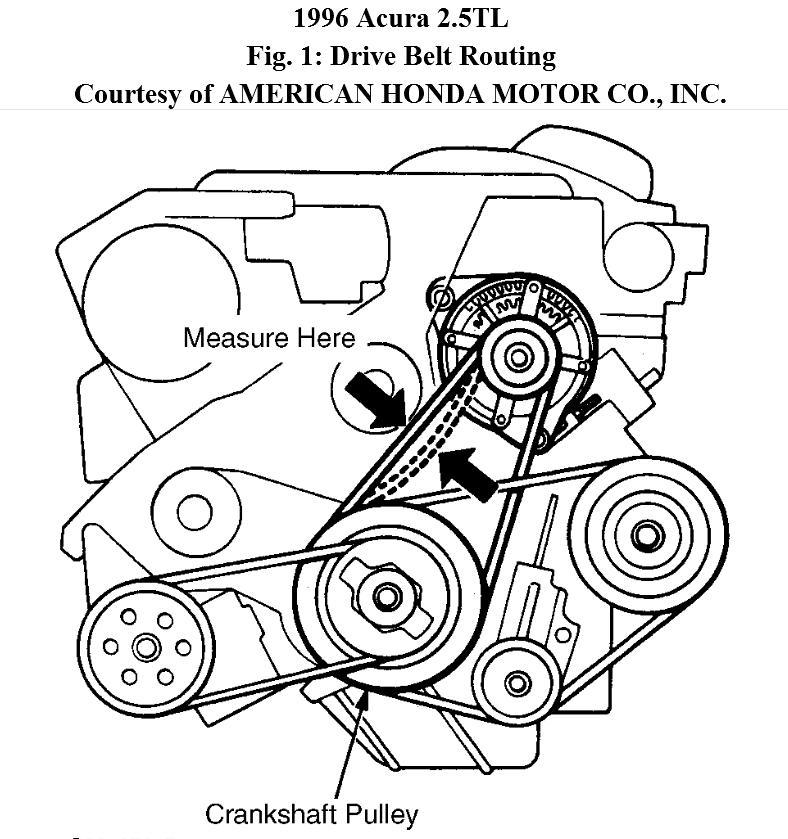

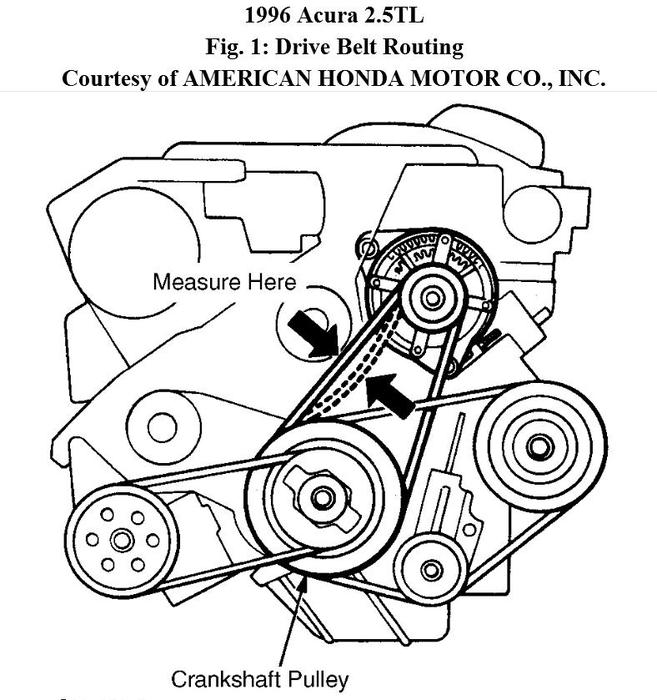

There are 3 belts and each with their own tightening and adjusting bolts.

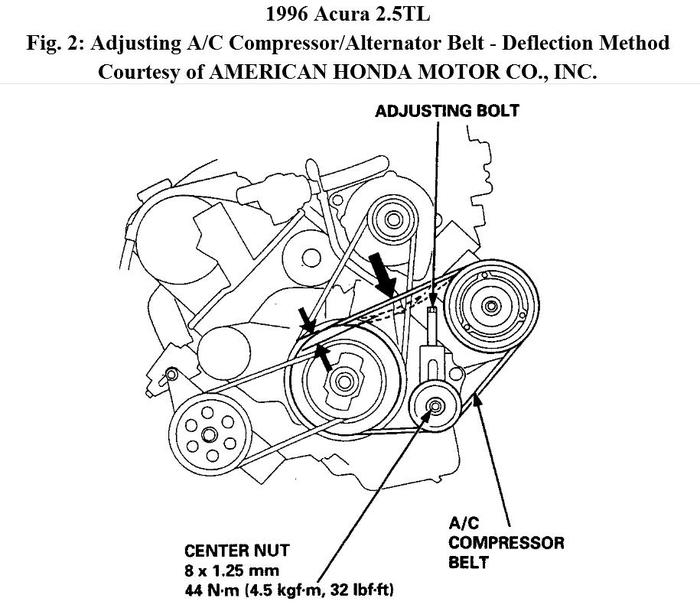

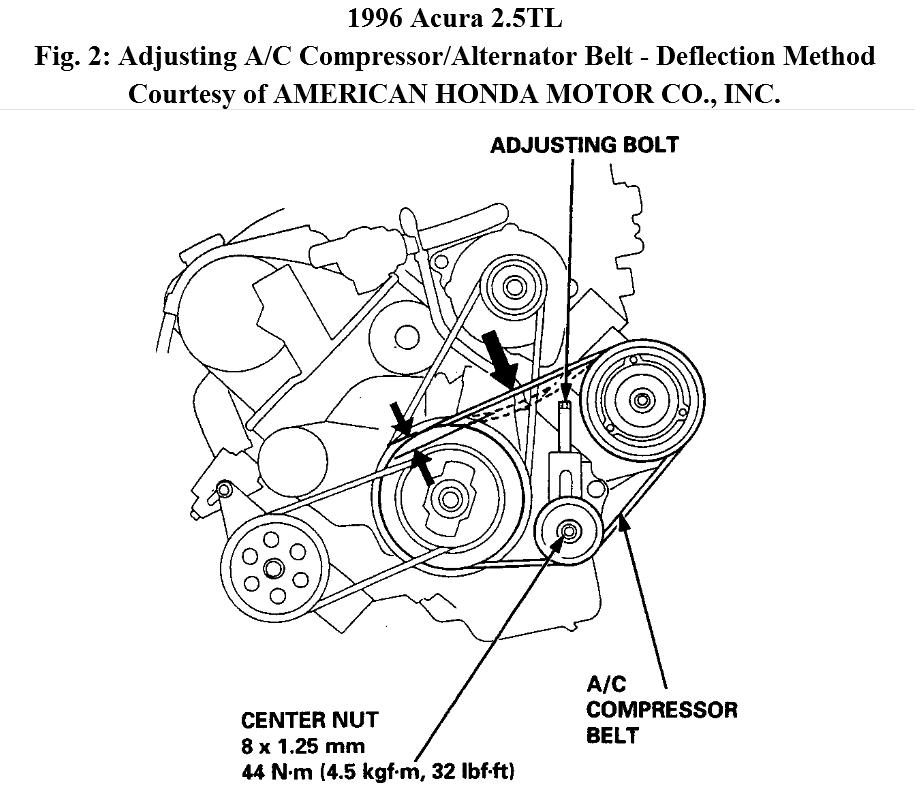

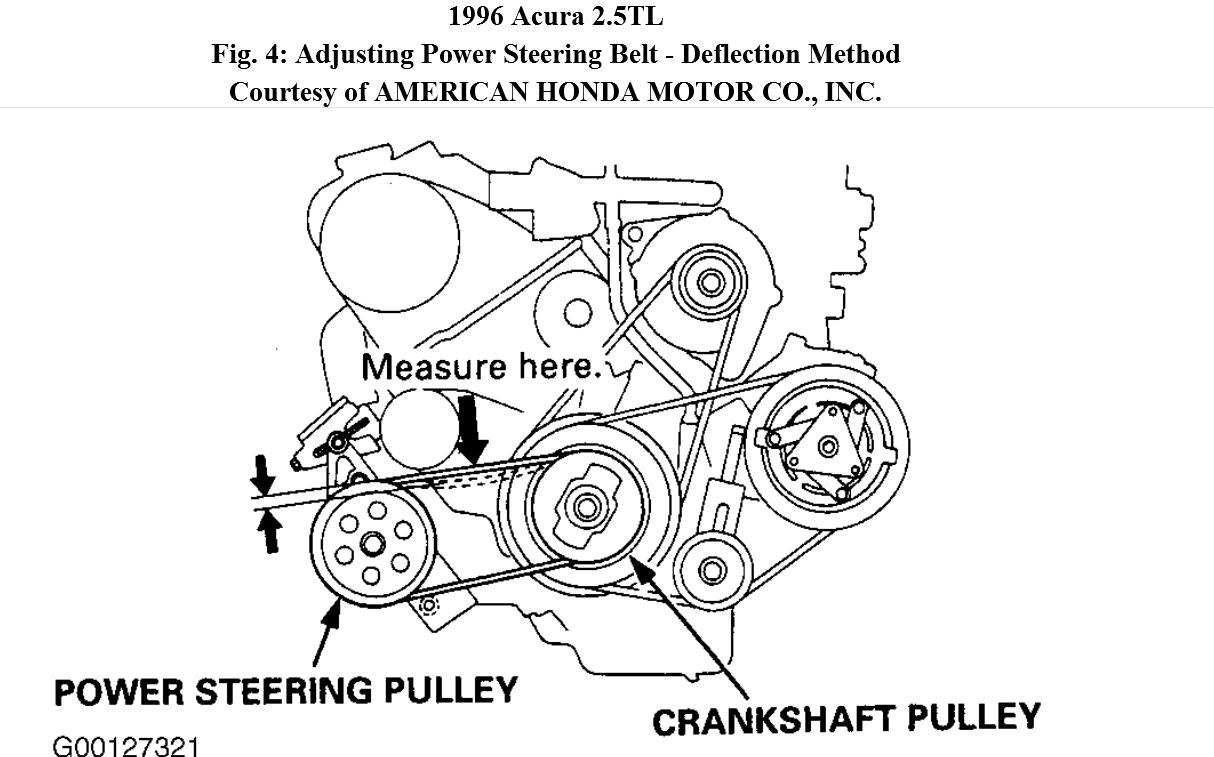

Loosen the adjusting bolt holding bolt/nut and pull on the belt to release the tension of the belt to remove it. Installation is reversal of procedures. You start with the outermost power steering belt an move on to the A/c belt and then the alternator belt.

Ensure the crank pulley is not wavy, indicating a badd harmonic damper and crank pulley needs to be replaced if that is the case.

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Sep 19, 2012 at 2:30 PM
Avatar
DMS1008
  • MEMBER
  • 16 POSTS
Took me 6 hours but i finally replaced the A/c belt and power steering as well. thanks!
Sep 20, 2012 at 12:47 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You're welcome.

For someone new on the job, to get it done is already an achievement.

Cheers.
Sep 20, 2012 at 6:22 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
New belts tends to stretch after a run in so you might need to readjust then tension one more time.
Sep 20, 2012 at 6:24 AM
