#4 injector not pulsing,stays hot all the time?

1995 SUZUKI SIDEKICK
1.6L • 4 CYL • 4WD • MANUAL
Avatar
VINNYS 49
  • MEMBER
  • 1 POST
#4 injector not pulsing,stays hot all the time. Put new injector,used pcm.white smoke from tailpipe. Bad gas smell. Noid light is very bright and does not pulse
Feb 1, 2015 at 1:18 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Have you checked for a possible ground issue or a short to power?
Feb 2, 2015 at 5:26 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

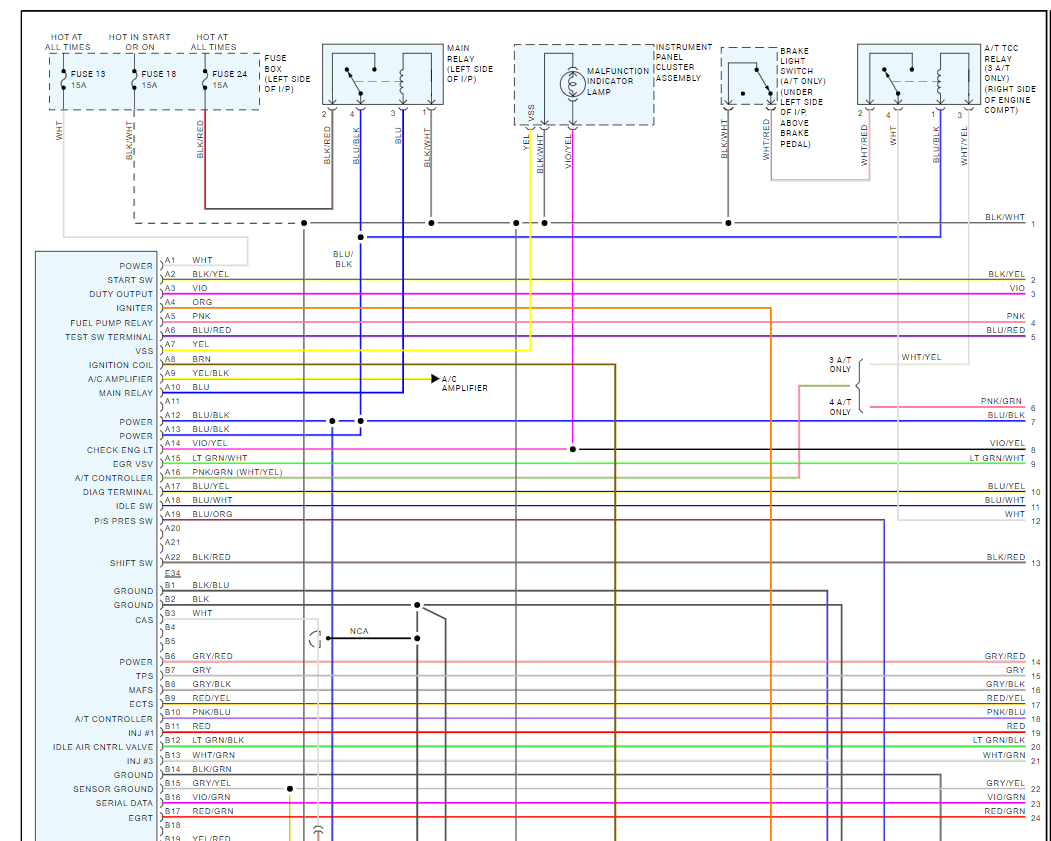

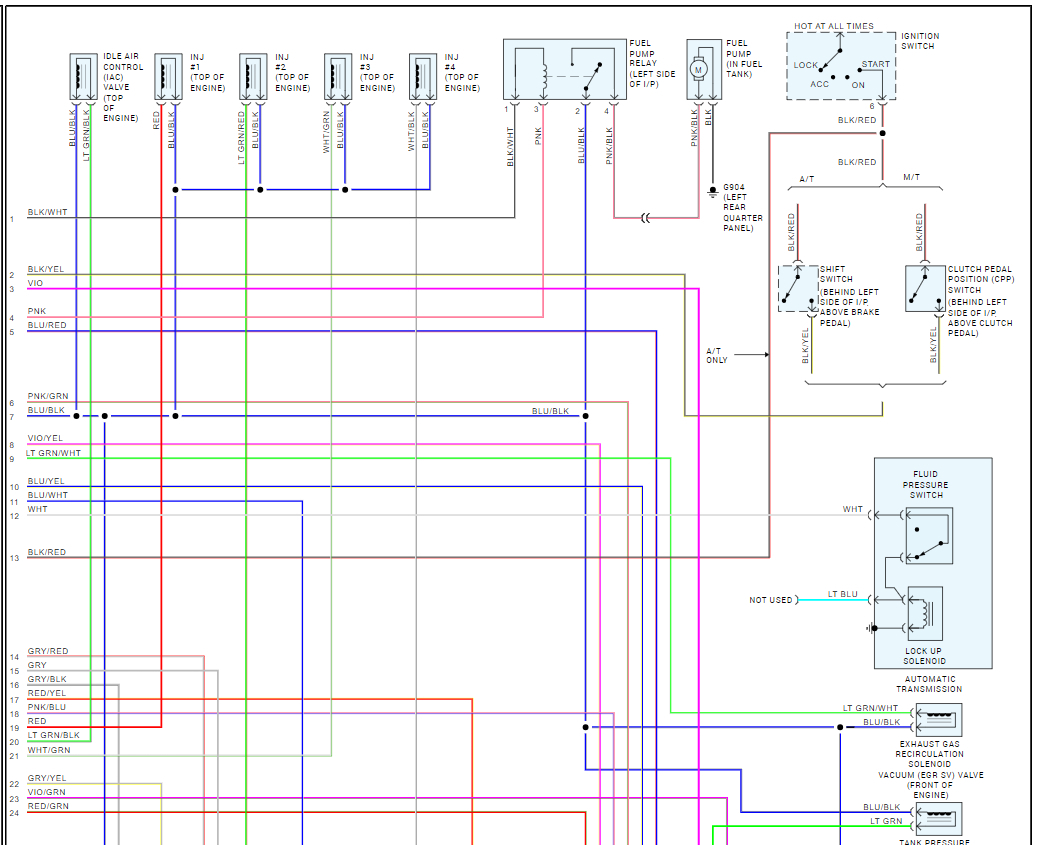

Yes, because the fuel injector has power all the time and the PCM uses the ground circuit to pulse the fuel injector. It sounds like you have a bad ground for the PCm, here is a guide to help you test the grounds and the PCM wiring diagram so you can see how the system works and where the grounds are.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

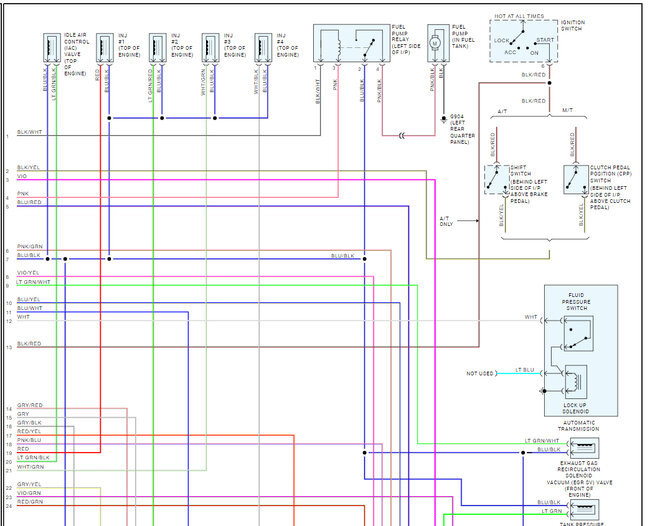

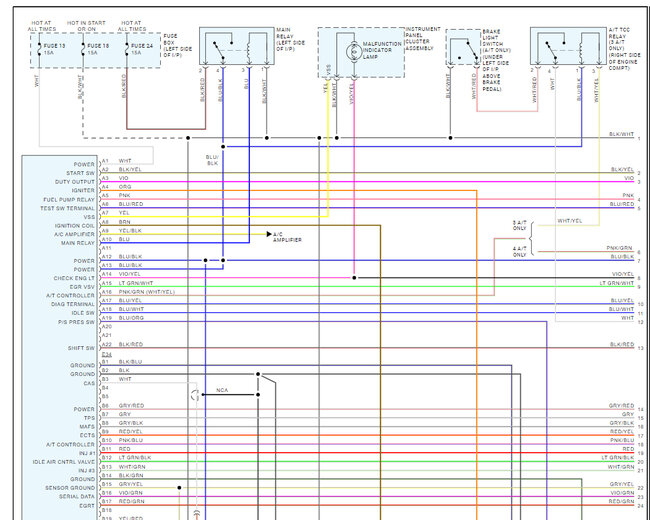

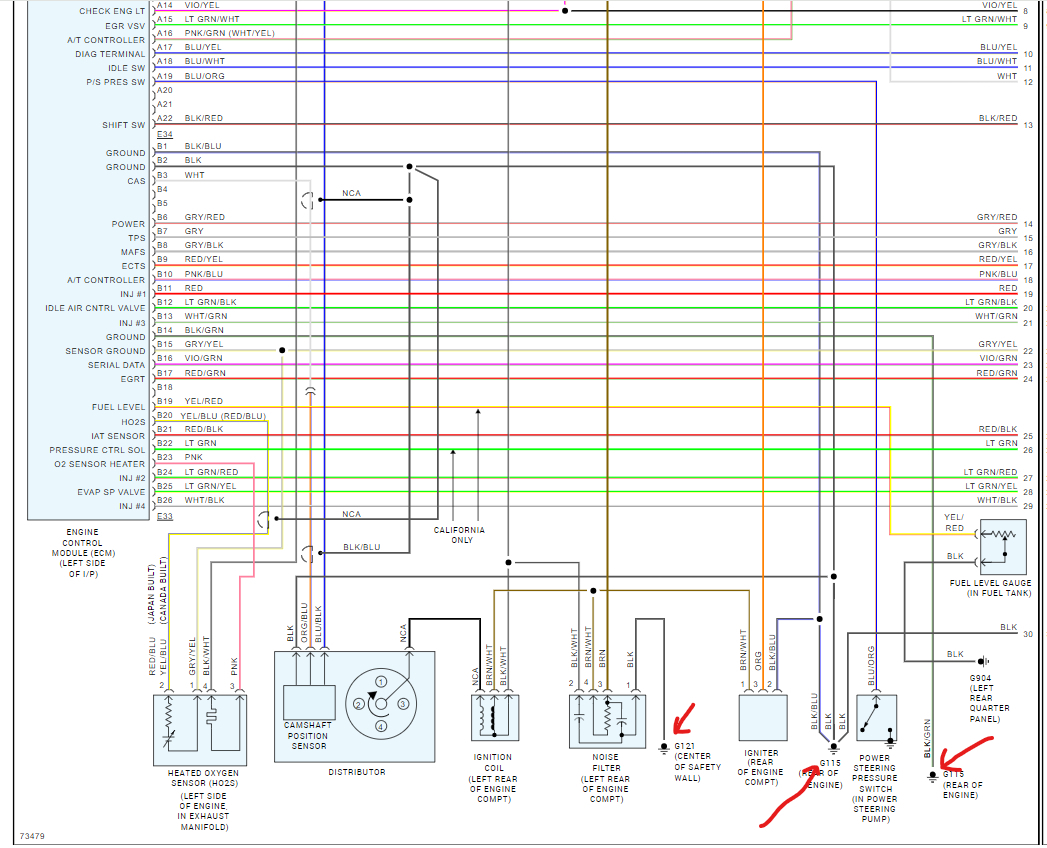

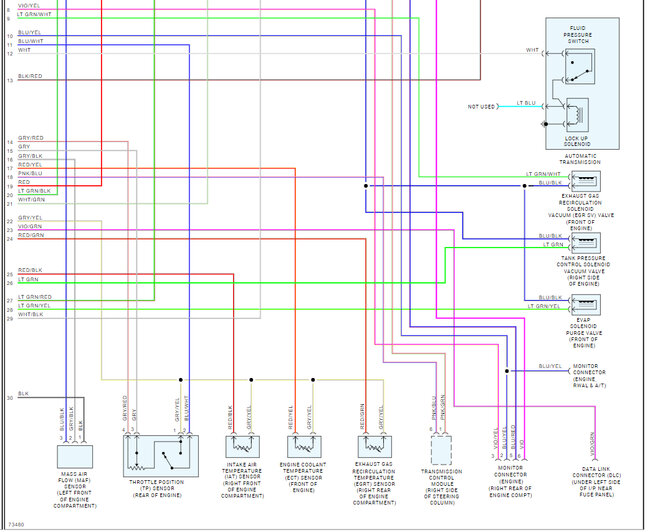

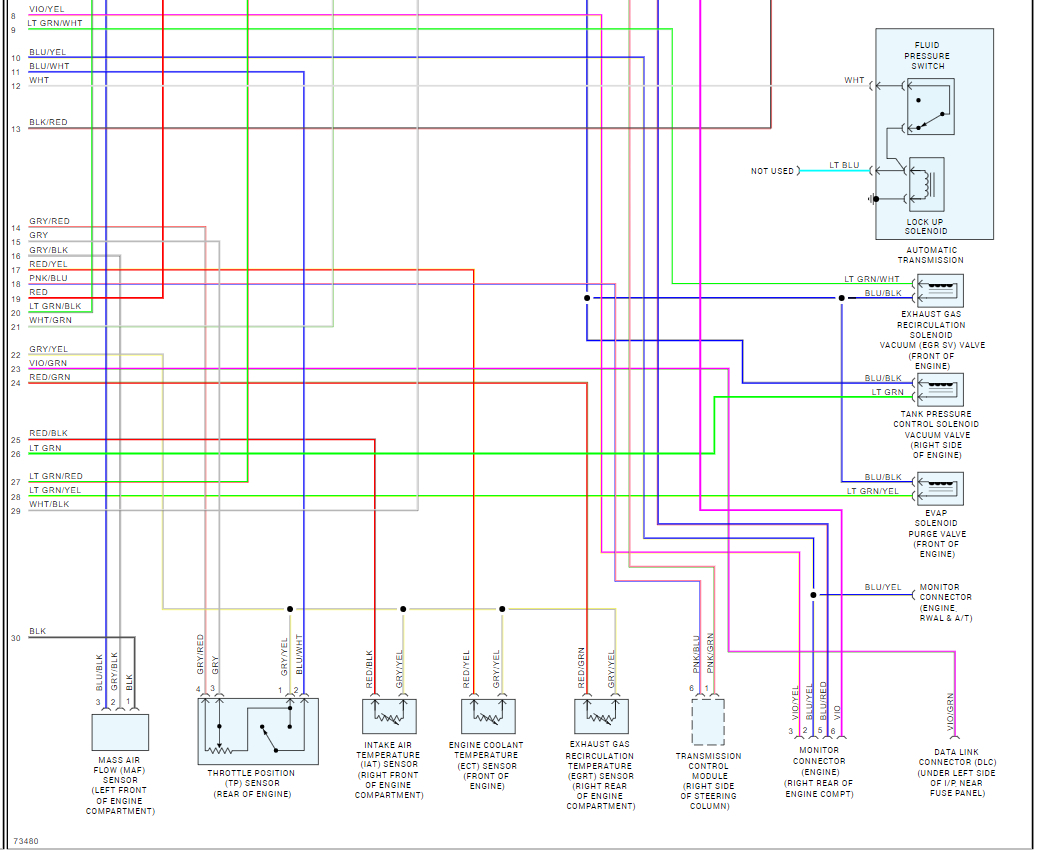

I have marked the grounds for you so you can do the testing. Check out the images (below). Let us know how it goes
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Aug 2, 2024 at 12:04 PM
