Lady in Distress..Impreza Coupe
brake drum shoes replacing w/new ones 1995 how?
Mar 13, 2011 at 7:11 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Raise and support vehicle, then remove rear wheels.
Remove brake drum. If difficult to remove brake drum, remove adjusting hole cover from back plate, then turn adjusting screw until shoe separate from drum.
Remove hold-down pin and cup.
Disconnect lower shoe return spring from shoes.
Remove shoes one by one from back plate with adjuster.

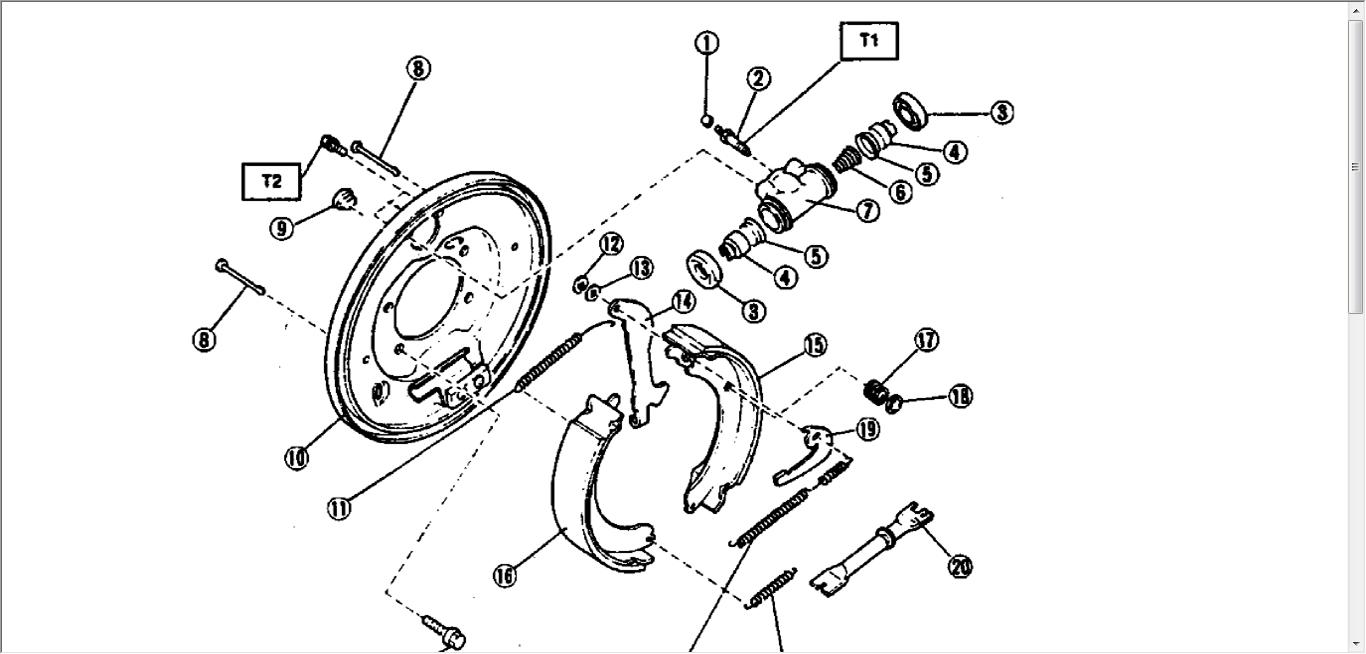

Reverse procedure to install. Refer to Fig. 6 for tightening specifications.

Mar 13, 2011 at 7:16 PM
