where is the heater core located and how do i remove and replace it?

1995 OLDSMOBILE ACHIEVA
77,000 MILES
Avatar
CREATOR AND JUDGE
  • MEMBER
  • 21 POSTS
the car is leaking coolant from the passenger side, in front of the passenger side wheel. and my passenger side floorboard is wet. it's my opinion, that the heatercore is leaking.

give me insight, on how to remove and replace the heater core in the car.
Aug 10, 2012 at 4:32 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Are you sure it is the heater core? Do you have overheating and coolant losses issues? A bad heater core would result in that.

It could just be a clogged drain hose from the A/C cooling coil.

HEATER CORE (below center of dash)
CAUTION: DO NOT apply excessive force to heater core pipes.

Removal & Installation

1. Disconnect negative battery cable. Drain cooling system. Raise and support vehicle. Remove drain tube. Disconnect heater hoses from heater core. Lower vehicle.

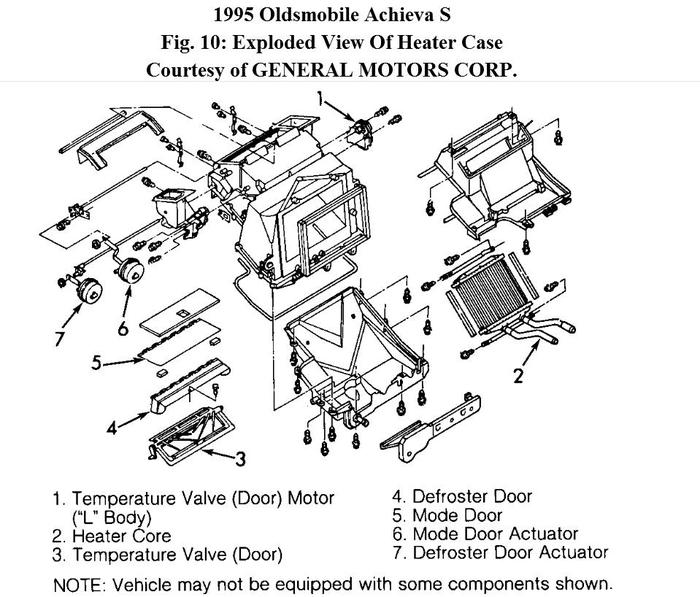

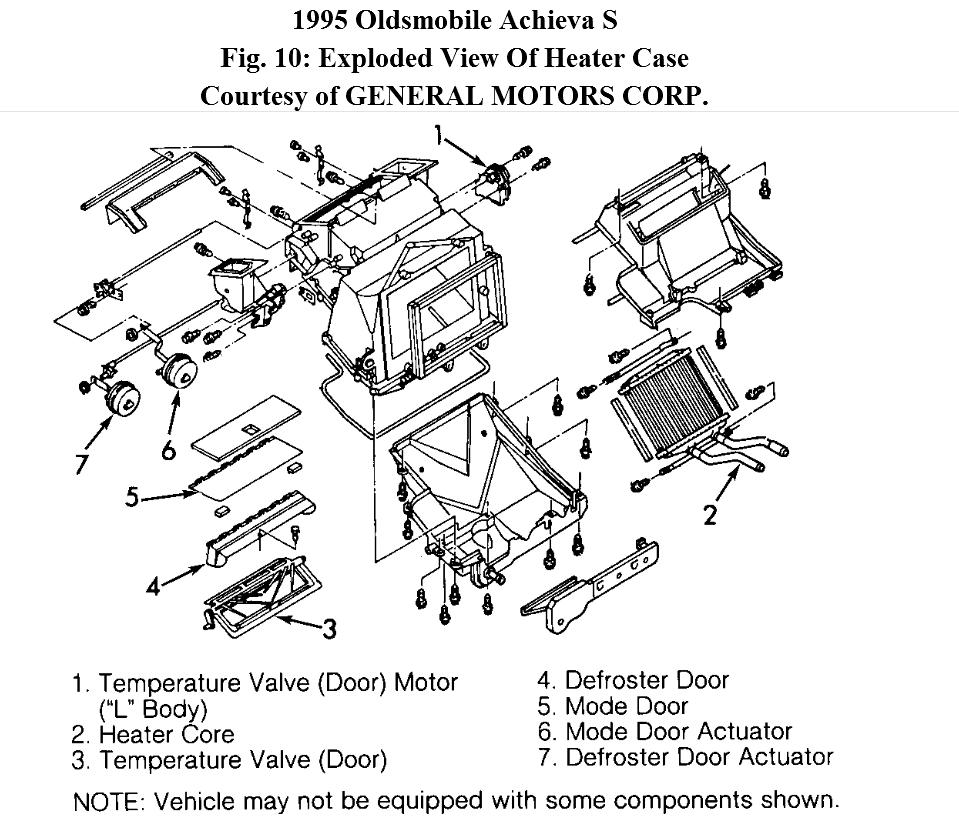

2. Remove left and right sound insulators from below instrument panel. Remove steering column opening filler. Remove floor outlet duct. Remove heater core cover and heater core. See Fig. 10. To install, reverse removal procedure. Fill cooling system.


Image (Click to enlarge)
Attached Media
Aug 10, 2012 at 7:26 AM
Avatar
AUTOMANIA
  • MEMBER
  • 1 POST

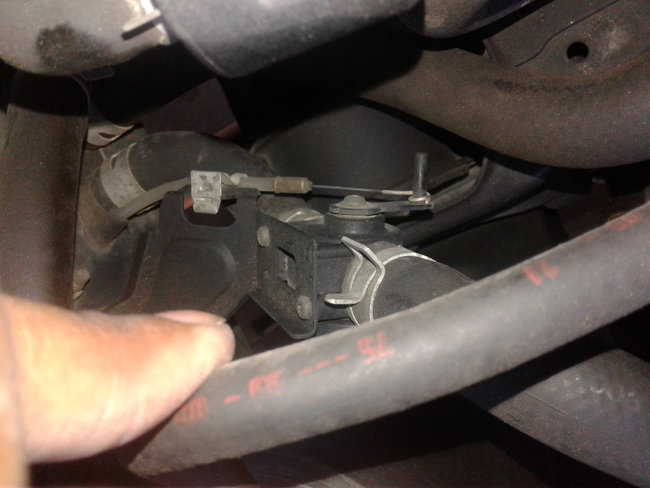

Wow I seem to have the same problem. My 1999 Honda Civic Dx Coupe been overheating and my fans don't come on and I am leaking coolant from the Heater Core Hose. Thanks For Sharing Your information on Heater Core Issues.
Image (Click to enlarge)
Attached Media
Apr 27, 2017 at 6:57 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Good to hear, please use 2CarPros anytime we are here to help.

Cheers, Ken
