1995 MITSUBISHI MAGNA
220,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
snapped alternator and power steering belt on 1995 Mitsubishi Magna. want to replace but belt for air-con has to come off first. how do I get to it and release tension? Is it near pulley? Is the tensioner the threaded bolt at front-top of ac-belt pulley?
Mar 12, 2013 at 1:39 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

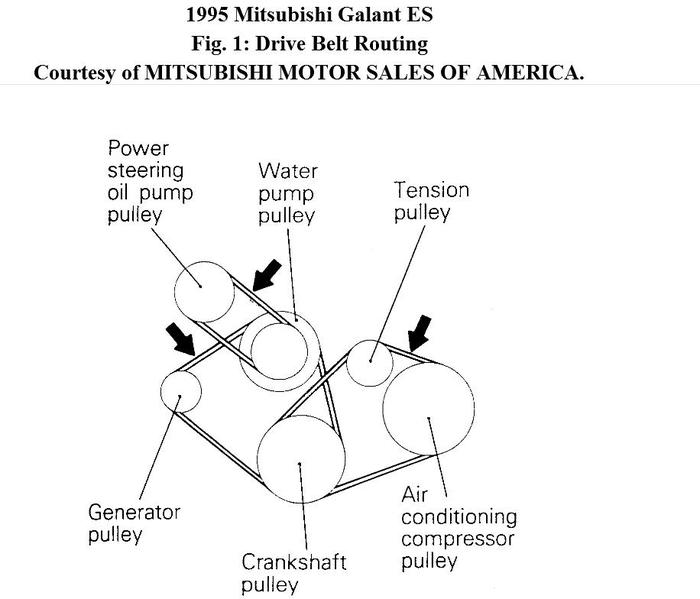

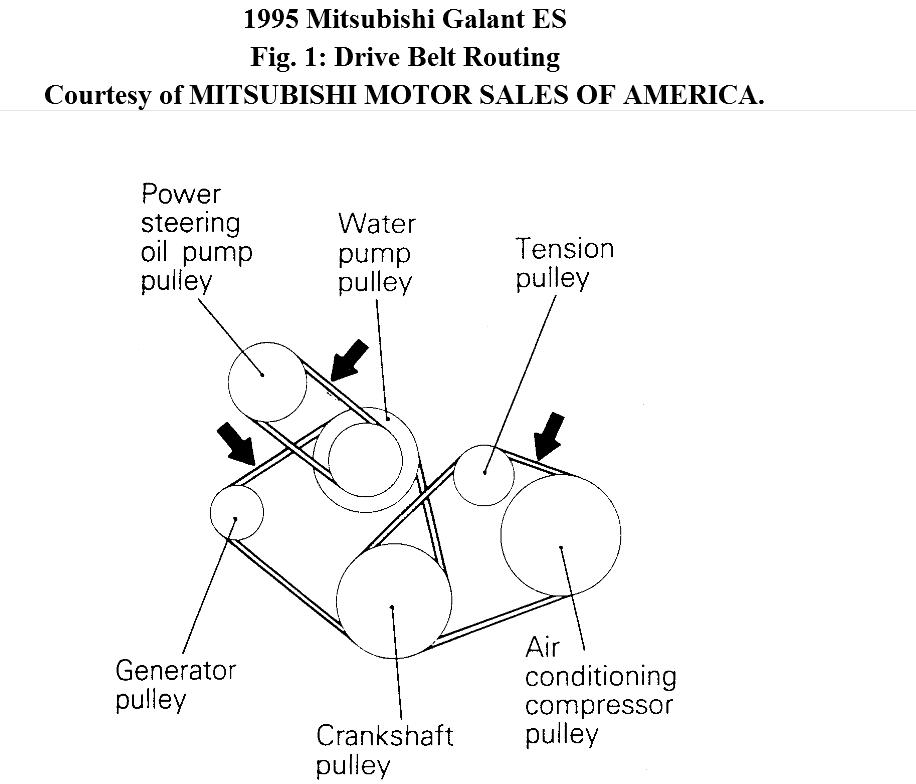

Hope this is the correct diagram. The tensioner pulley for the A/C is at top and you need to loosen the holding bolt to turn the adjusting bolt to release the belt tension.
Mar 12, 2013 at 1:49 PM
