no start and no communication with snap on modis scanner

1995 MITSUBISHI EXPO
198,000 MILES
Avatar
LOUIELEWIS
  • MEMBER
  • 4 POSTS
i have a no start on my 1995 mitsubishi expo 2.4l ..i have fuel and spark..i have an ignition switch that i have to turn on and off a few times before it works but it still turns over..i also have a snap on scanner ( Modis ) with the correct mitsu-1 adapter and the key7 attatchment but i get a no communication everytime i hook it up...it says obd1 under the hood on the emmisions tag but it has an obd II connector under the dash so i am not sure how to check for codes...i am lost...please help
Dec 28, 2011 at 8:24 PM
Advertisement
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
It sounds as though you have an issue with the ignition switch that needs to be addressed first.
Dec 28, 2011 at 8:31 PM
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Check and test the ignition switch, fuel pressure if its within specs and verify the valve and ignition timing-
Dec 28, 2011 at 8:31 PM
Advertisement
Avatar
LOUIELEWIS
  • MEMBER
  • 4 POSTS
would the ignition switch being semi faulty cause the no communication with the scanner ?? and also a no start ?? i mean when it turns over it turns over good
Dec 28, 2011 at 8:48 PM
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
Yes, it could cause the no start condition. The switch may not be sending the signal to power up the ignition primary circuit.

The no communication issue is probably a loose connector pin or broken wire.
Dec 28, 2011 at 9:02 PM
Avatar
LOUIELEWIS
  • MEMBER
  • 4 POSTS
even if when the ignition switch is rolling over and over it is getting park at the plugs
Dec 28, 2011 at 11:09 PM
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
You have engine turning over and spark, but it's not starting?
Check all fuses and relays.
Dec 28, 2011 at 11:49 PM
Avatar
LOUIELEWIS
  • MEMBER
  • 4 POSTS
i checked all fuses and relays
Dec 29, 2011 at 9:32 PM
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS

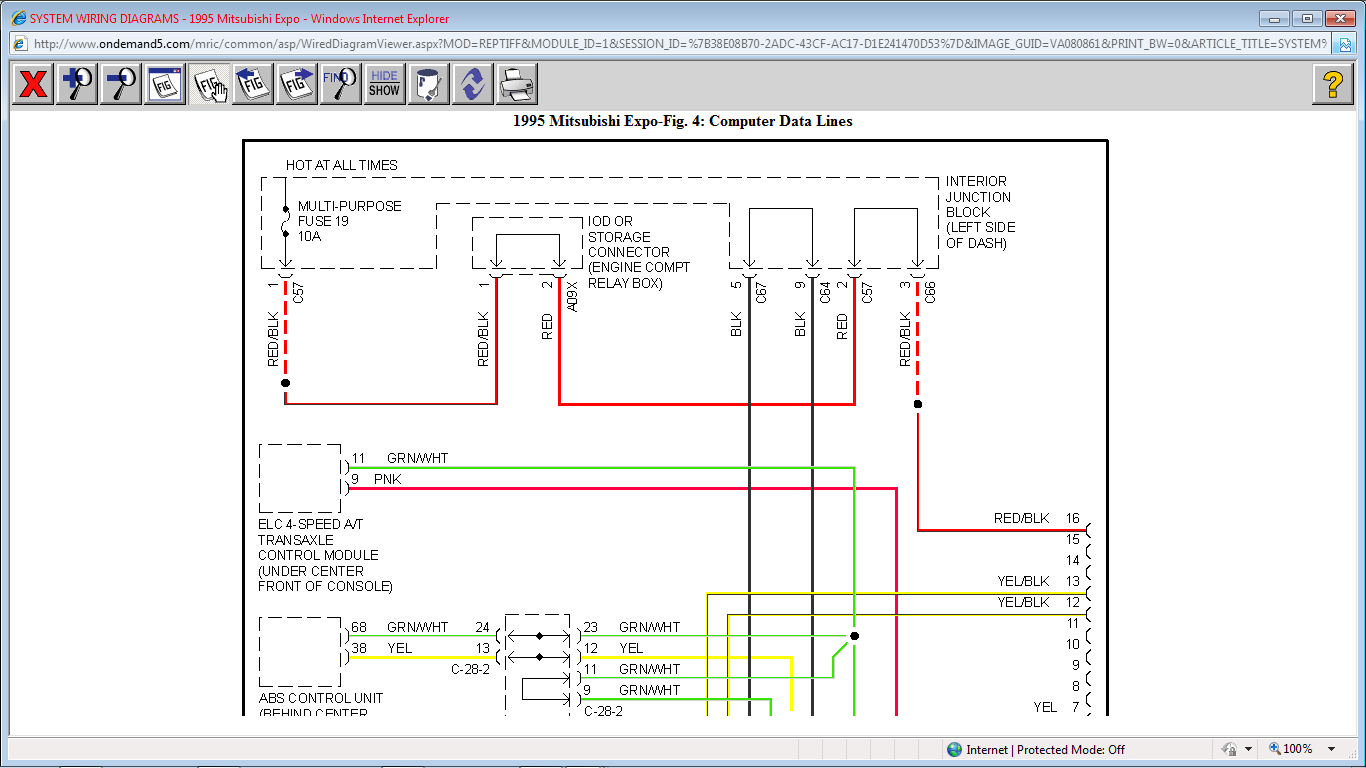

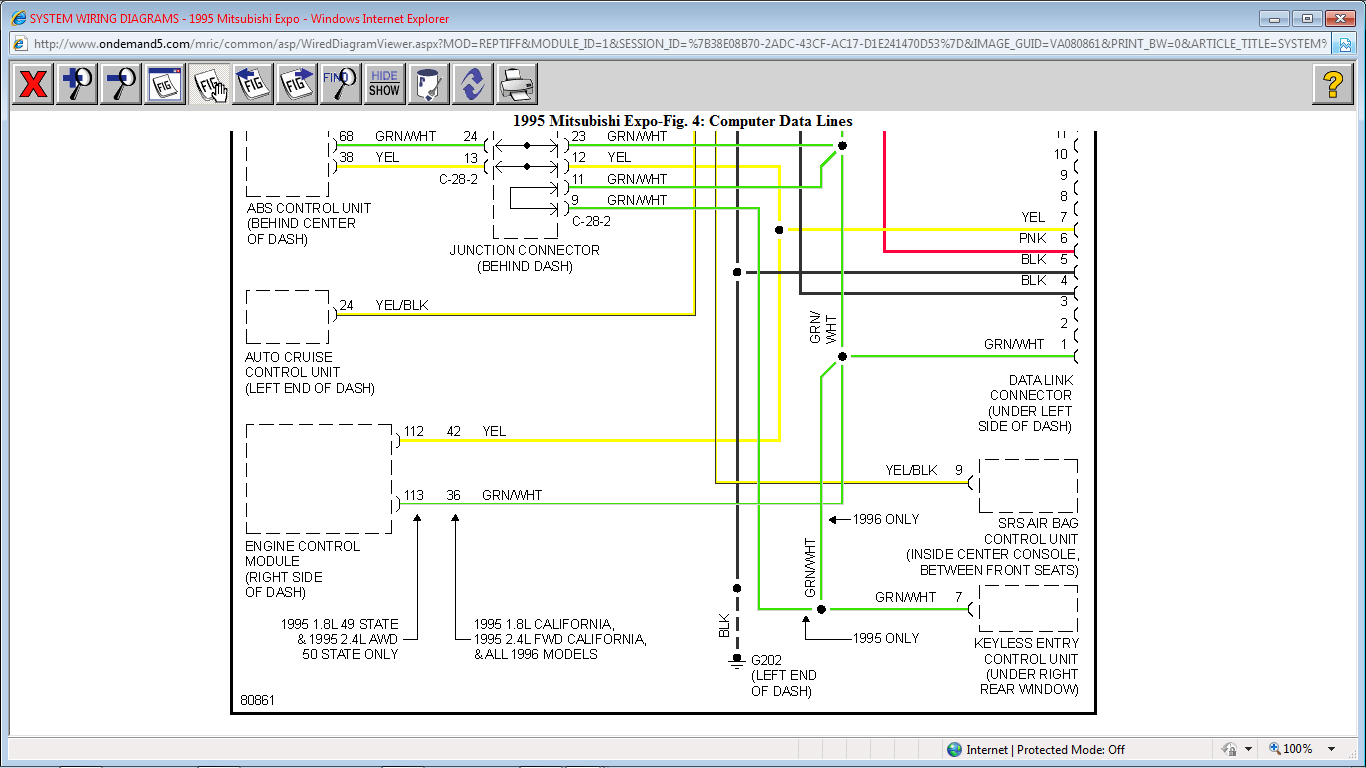

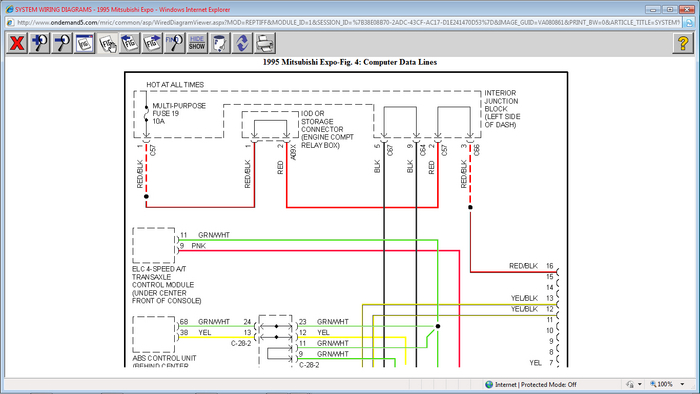

See images. Test continuity on the lines to and from the data connector.
Images (Click to enlarge)
Attached Media
Attached Media
Dec 29, 2011 at 10:12 PM
