1995 MAZDA B2300
212,333 MILES
Avatar
ROBERTCHADSMITH
  • MEMBER
  • 2 POSTS
Has no power even when you push gas peddle to the floor. Replaced throtle position sensor, no change. Exhaust Manifold glowing red. Could it be the catalytic converter? How do I check that?
Dec 30, 2012 at 4:51 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
There is a bad misfiring and excessive fuel is getting to the catalytic converter causing it to glow red hot.

Have you checked the basics, spark plugs, wires etc?
Dec 30, 2012 at 6:58 PM
Avatar
ROBERTCHADSMITH
  • MEMBER
  • 2 POSTS
I just now read your answer, but you were right. The wiring diagram for the spark plug wires was totally different then the way the truck was wired. No diagram I could find anywhere matched to the way I ended up wiring them. Thanks for the answer.
Jan 1, 2013 at 5:05 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

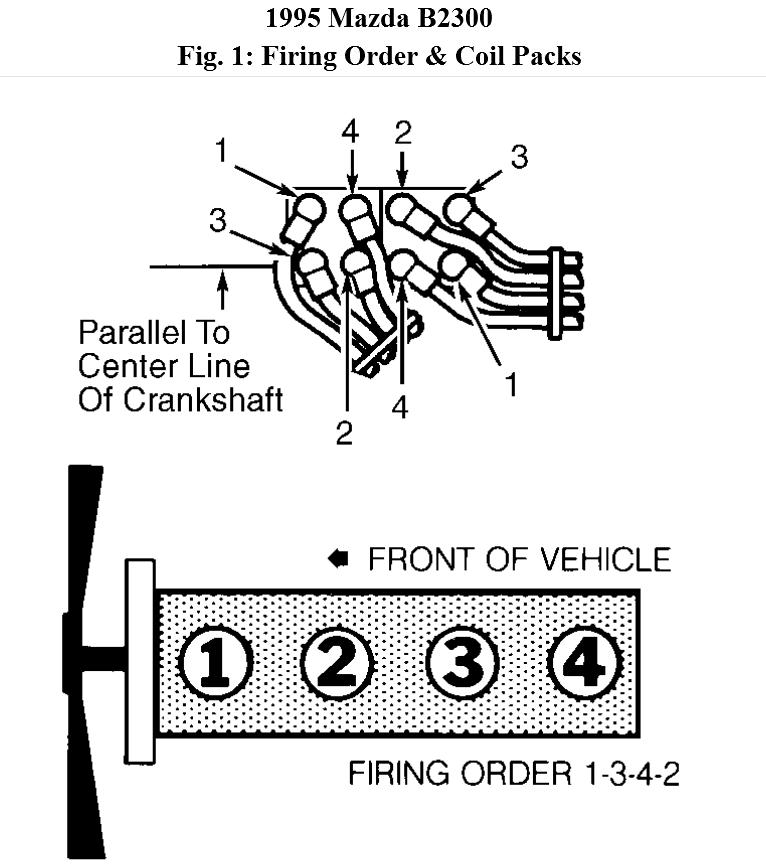

Refer to diagram.
Image (Click to enlarge)
Attached Media
Jan 1, 2013 at 3:34 PM
