coolant temp sensor location

1995 ISUZU TRUCK
89,577 MILES • 4 CYL • 2WD • MANUAL
Avatar
HIGHWAY21
  • MEMBER
  • 1 POST
location of coolant temp sensor?
Jan 21, 2011 at 9:33 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
See below:

Image (Click to enlarge)
Attached Media
Jan 21, 2011 at 9:42 PM
Avatar
JAMES GLINSKI
  • MEMBER
  • 10 POSTS
Hi, I have the truck listed above and can't find the water coolant sensor. Needs replacing but got to find it first. any idea ? Or picture or diagram? Thanks, Jim.
Jan 4, 2021 at 9:59 AM (Merged)
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS

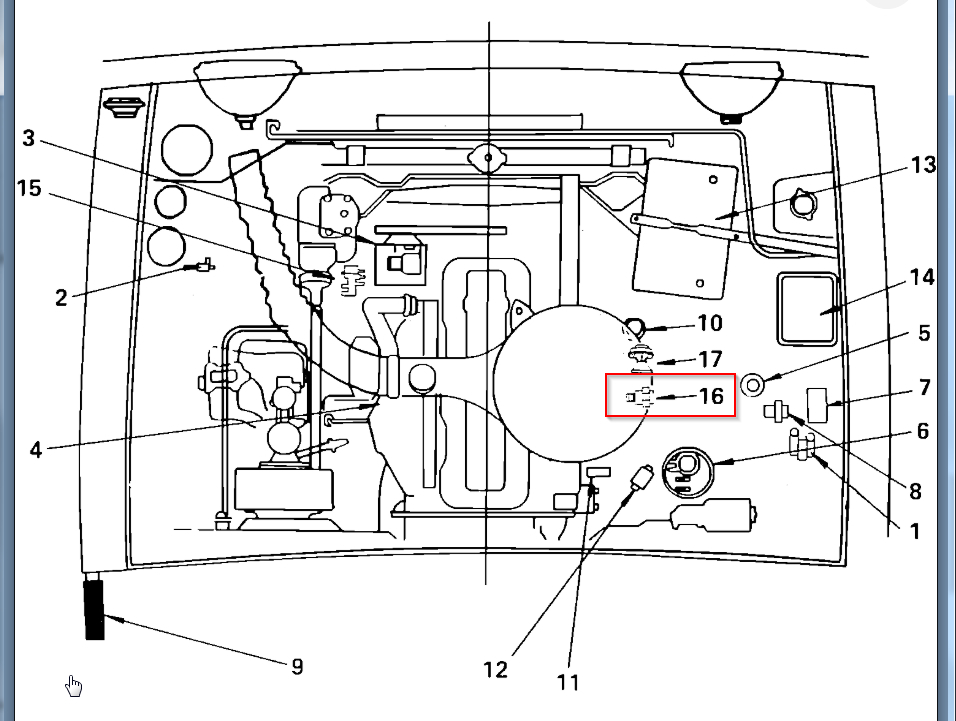

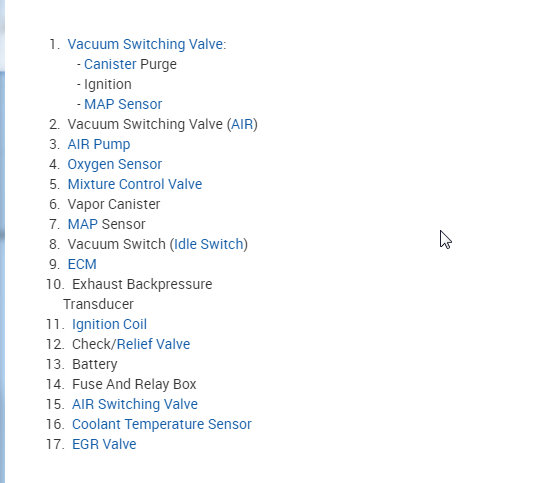

Looks like it is on the passenger side of the engine compartment under the intake. I attached the info. Let me know if you have questions. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Jan 4, 2021 at 9:59 AM (Merged)
