WHAT ENGINE DO YOU HAVE?

I'M NOT FAMILIAR WITH YOU CAR.......BUT I'D THINK YOU WOULD ONLY HAVE ONE PCV

THE WAY A PCV WORKS IS IT DRAWS OUT THE HARMFUL GASSES FROM YOUR ENGINE, WHICH IS "BLOWBY" GENERATED FROM THE CYLINDERS/ PISTONS SORTA SLIPS BY AND GETS INTO THE CRANKCASE

I JUST SAW THIS THE OTHER DAY WITH A JEEP CJ 5 THAT WAS IDLING VERY POORLY------THIS FELLER HAD STUCK A PCV VALVE ON EITHER END OF HIS VALVE COVER.......................IN CRUDE TERMS, HIS OPERATING PCV WAS SUCKING A VACUUM ON THE CRANKCASE, TILL IT COULD NOT SUCK ANY MORE (THE OTHER PCV WAS ACTING LIKE A CHECK VALVE OR A "PLUG"--NO MORE AIR COULD GET IN-----NO MORE COULD BE SUCKED OUT EITHER!)-----------MEANING "AIRFLOW" STOPPED GOING THRU THE VACUUM LINE------RESULTING IN NO MORE AIR GETTING BACK TO THE CARB/ INTAKE TO RUN HIS IDLE'S DEMAND FOR AIR!

AS THE PCV VALVE DRAWS/ S.UCKS THE HARMFUL GASSES FROM THE ENGINE-----IT'S CREATING A VACUUM IN THE ENGINE----THERE SHOULD NOT BE A VACUUM----IT SHOULD BE CIRCULATING AIR......SORTA HARD TO EXPLAIN IN TEXT

NOT ONLY THAT.............THE VACUUM RUNNING UP THE LINE AND BACK INTO HIS INTAKE MANIFOLD/ OR CARBURETOR IS ALSO "AIR" OR "COMBUSTION AIR" WHICH IS/ OR SHOULD BE MIXING WITH FUEL FOR THE IDLE ALONG WITH A PERCENTAGE OF IT FEEDING THE CARB WHEN THE THROTTLE IS OPENED UP

.............SO..........ON THE CARBURETED VEHICLES------THE OTHER PORT ON THE VALVE COVER IS NOT FOR A 2ND PCV------IT'S FOR "WIDE OPEN" CLEAN AIR TO BE DRAWN IN........REPLENISHING WHAT THE PCV IS TAKING OUT!

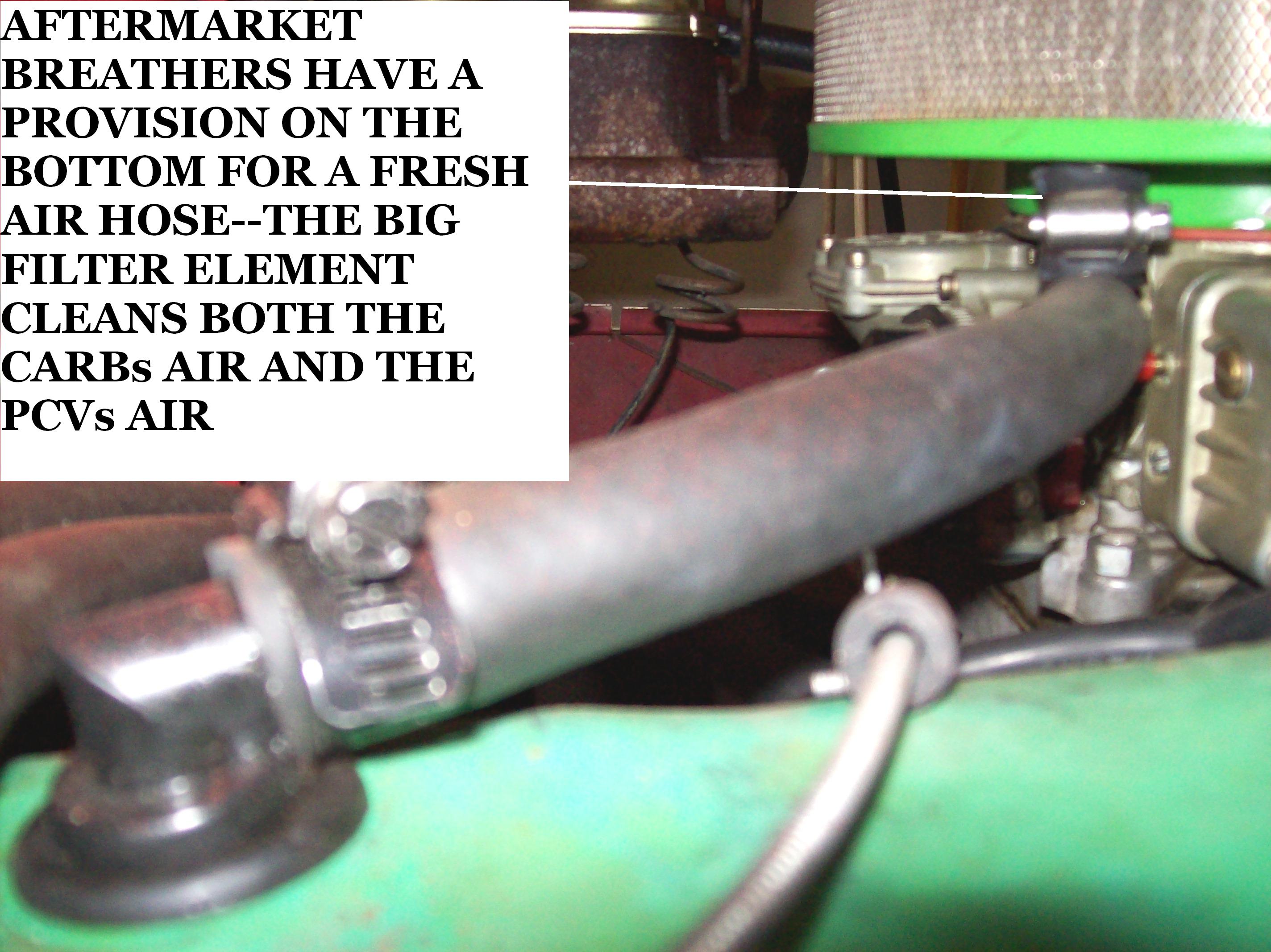

DEPENDING ON THE SET-UP, "CLEAN FILTERED AIR" IS DRAWN IN---------MINE HAS A ELBOW AND A HOSE, WHICH CONNECTS INTO THE BOTTOM OF MY CARB'S AIR CLEANER, LETTING MY MAIN BREATHER FILTER ELEMENT CLEAN THE AIR FOR THE CARB AS WELL AS THE AIR REPLENISHING MY VALVE COVER AND PVC

ON "V" ENGINES---USUALLY THE PVC IS ON ONE VALVE COVER, AND THE FRESH AIR ENTERS ON THE OTHER VALVE COVER----DOING THIS SORTA CIRCULATES AIR THRU THE WHOLE ENGINE



YOURS BEING A '95, YOU DO NOT HAVE A CARB, BUT THE PCV STILL CLEANS THE CRANKCASE AIR------AND IT STILL NEEDS FRESH AIR TO REPLENISH WHAT'S BEING SUCKED OUT! THIS FRESH AIR MIGHT BE A HOSE GOING INTO YOUR SNORKEL FROM YOUR AIR CLEANER TO YOUR THROTTLE BODY....AND SHOULD FLOW FREELY INTO THE VALVE COVER

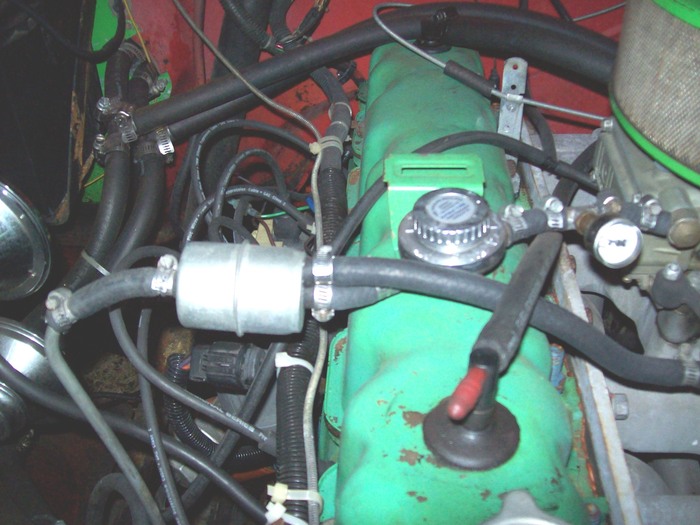

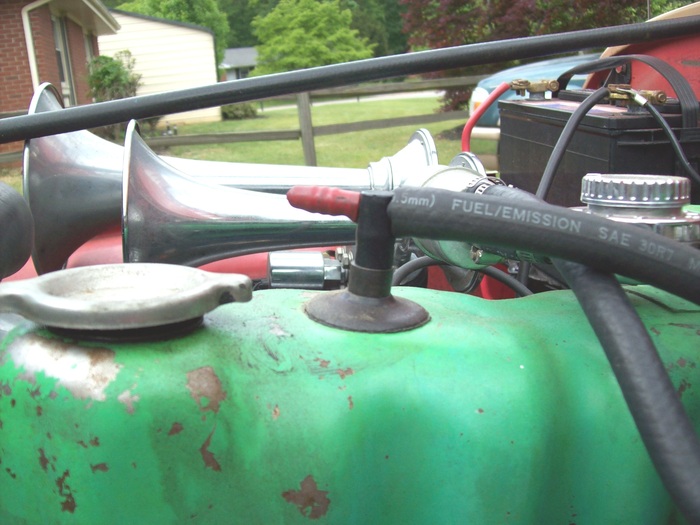

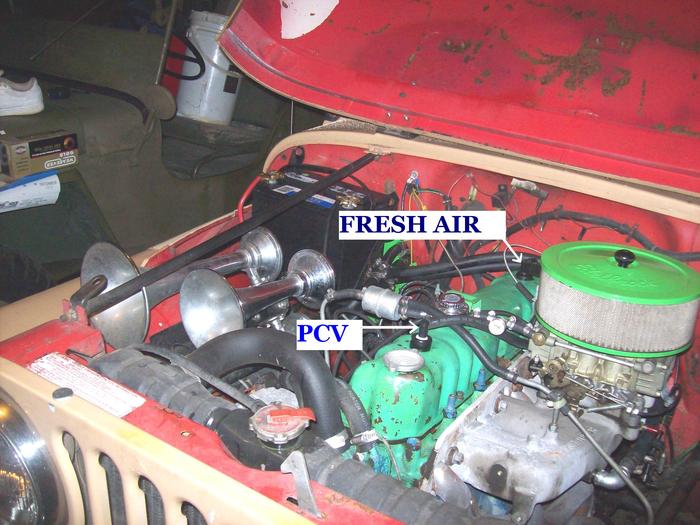

I'M GONNA SLING YOU A FEW PICS OF HOW MY JEEP CJ 5 IS SET UP-----'MEMBER THIS IS A CARB----IT'S ALSO AN INLINE 6 CYLINDER (ONLY ONE VALVE COVER)

ANY OF THIS MAKE ANY SENSE?

COULD IT BE THE 2ND PVC IS EITHER A MISTAKE OR MAYBE IT'S ANOTHER ANIMAL.....AND NOT A PCV???

THE MEDIC
