find crankshaft position sensor

1995 FORD CONTOUR
4 CYL • FWD • MANUAL
Avatar
GRAMMYCOCO
  • MEMBER
  • 25 POSTS
I need to find the crankshaft position sensor on a 95 Ford contour xl, 4 cyl engine I want to replace it because the car will not start and I have done all other troubleshooting
Dec 5, 2010 at 11:23 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Its located On cylinder head, upper left rear of engine.
Dec 5, 2010 at 11:31 PM
Avatar
GRAMMYCOCO
  • MEMBER
  • 25 POSTS
still can't find it, could you draw me a diagram?
Dec 5, 2010 at 11:35 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

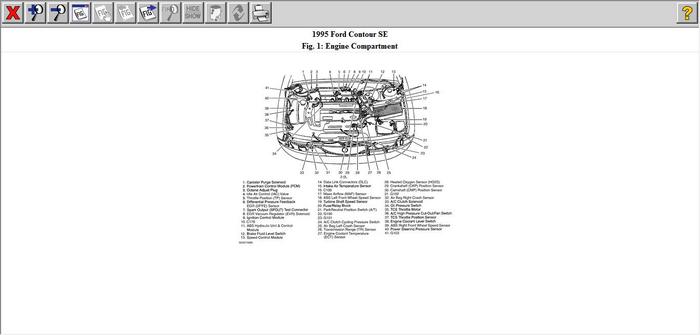

At item no.29 -see below

Image (Click to enlarge)
Attached Media
Dec 5, 2010 at 11:44 PM
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

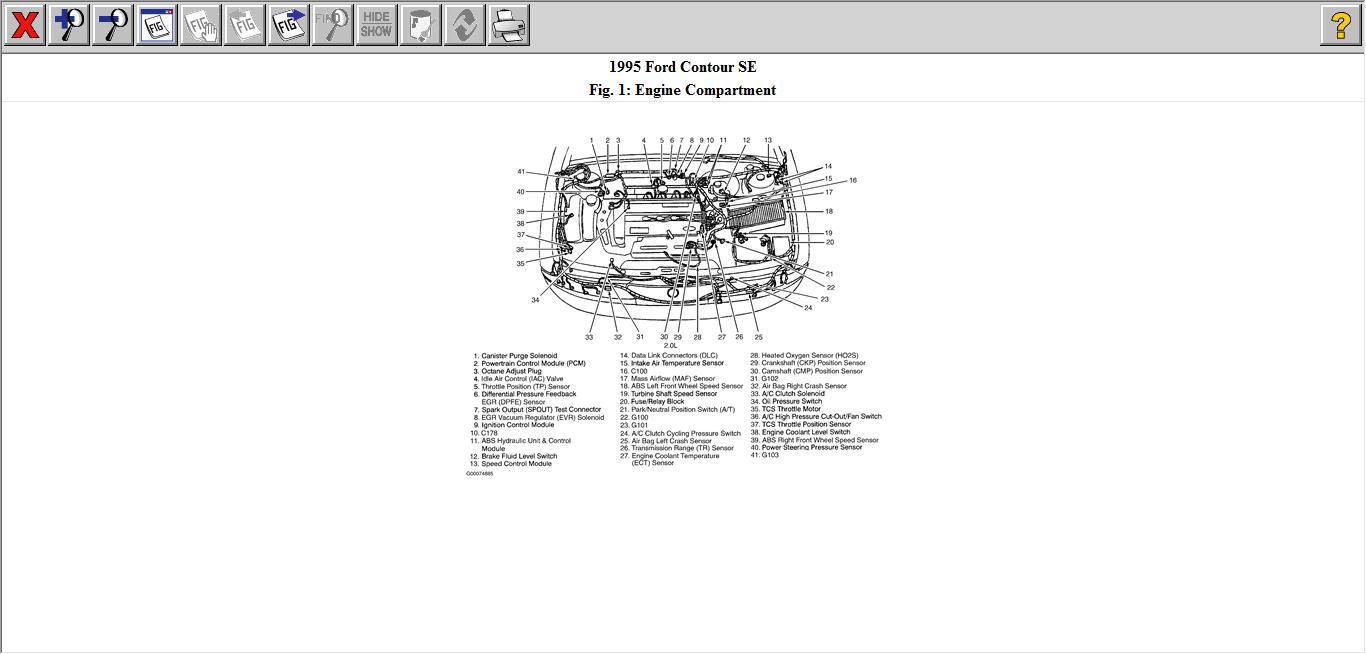

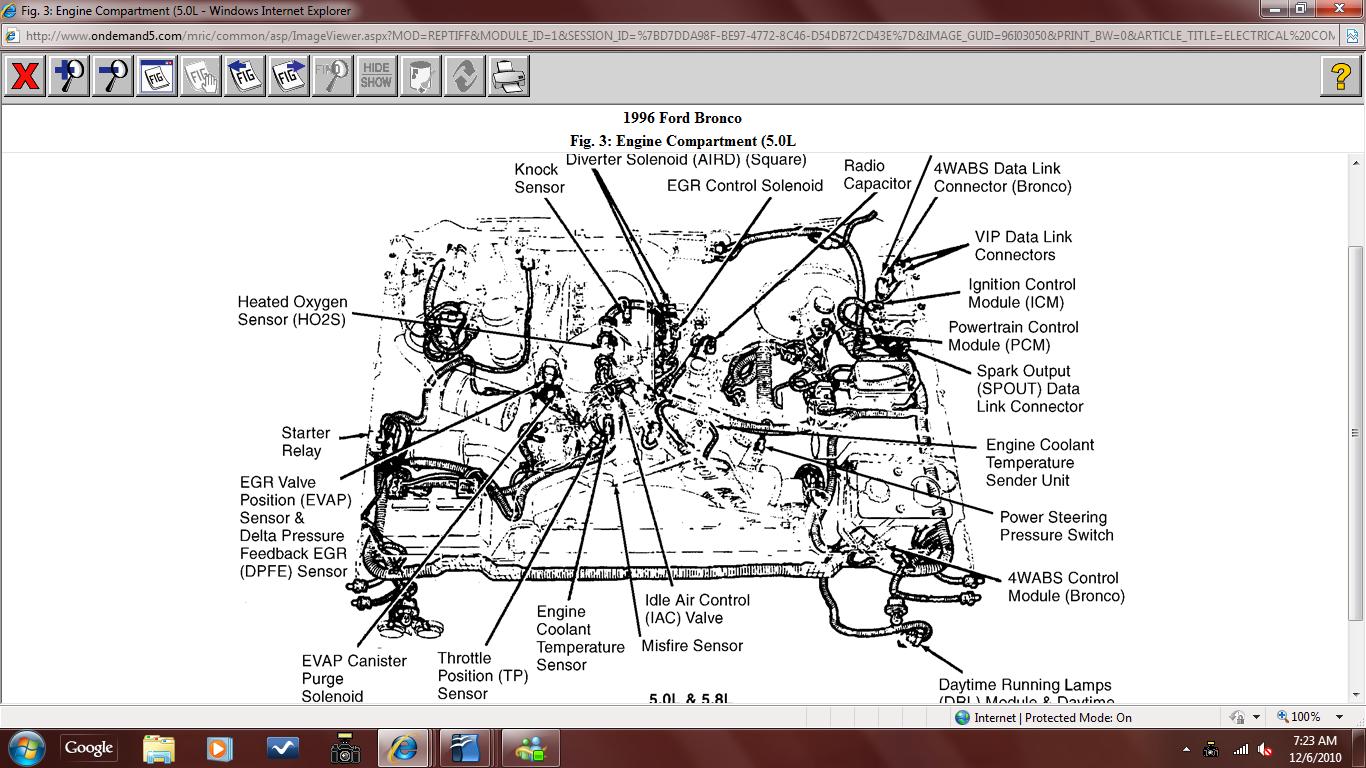

See below

Image (Click to enlarge)
Attached Media
Dec 5, 2010 at 11:49 PM
