reverse safety switch

1995 DODGE SPIRIT
246,000 MILES • 4 CYL • FWD • AUTOMATIC
Avatar
MIKENJUDY
  • MEMBER
  • 7 POSTS
where is the reverse safety switch located on an 95 dodge spirit please? Thanks..would it control the reverse lights? I have checked and replaced the bulbs. they are new..
Jan 26, 2011 at 4:11 AM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

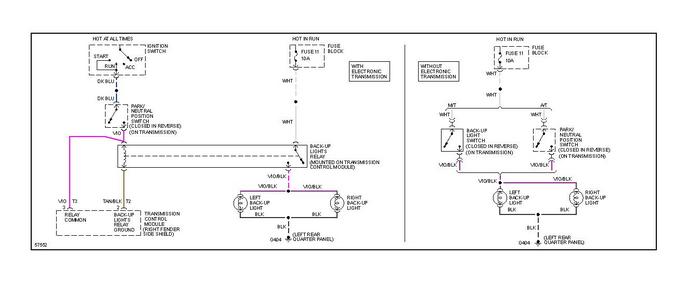

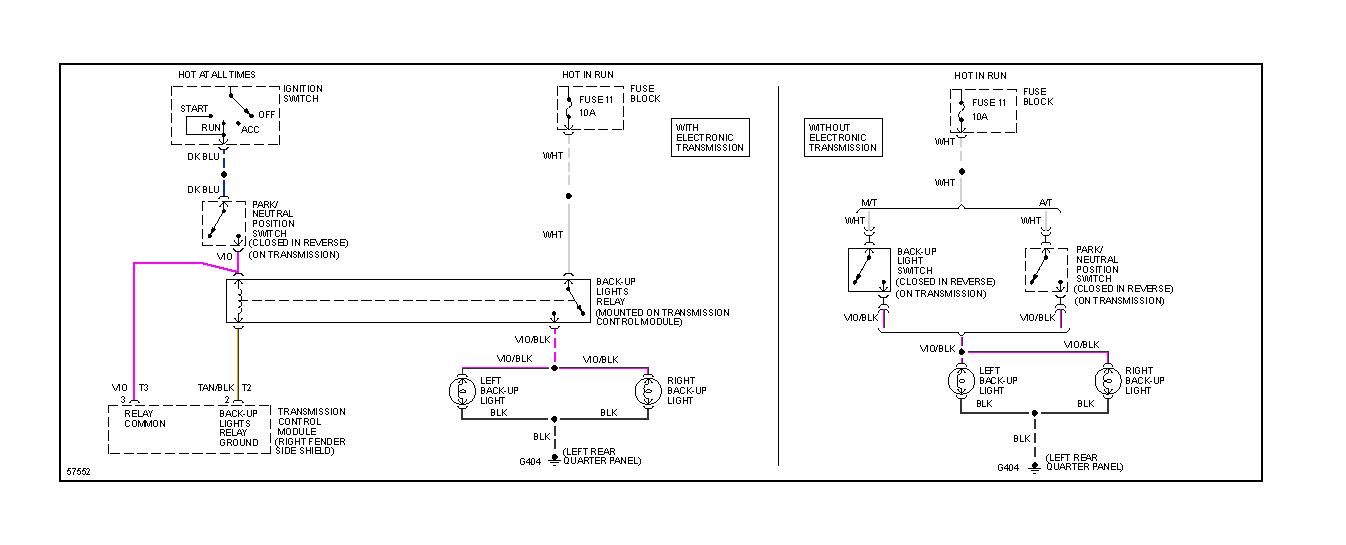

Check fuse no.11 10amp in fuse block-also see below:

Image (Click to enlarge)
Attached Media
Jan 26, 2011 at 7:19 AM
Avatar
MIKENJUDY
  • MEMBER
  • 7 POSTS
ok, my buddy took the safety switch off the trans and pressed the switch manually. My back up lights come on. but not with the transmission selector in reverse. I will probably wire a separate toggle switch to make the lights work. Thanks for your help.Is there some adjustment i can make to the trans to make this work?
Feb 1, 2011 at 4:41 AM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Try adjusting the switch by aligning the linkage/transmission selector
Feb 1, 2011 at 5:18 PM
