how to wire rear speakers on a 95 dodge ram 1500

1995 DODGE RAM
70,000 MILES
Avatar
JAMEZLEEZ
  • MEMBER
  • 1 POST
the factory conection was cut off for the speaker now there is 4 wires ond i dont know how to connect them to the speaker
Nov 28, 2011 at 12:48 AM
Advertisement
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS

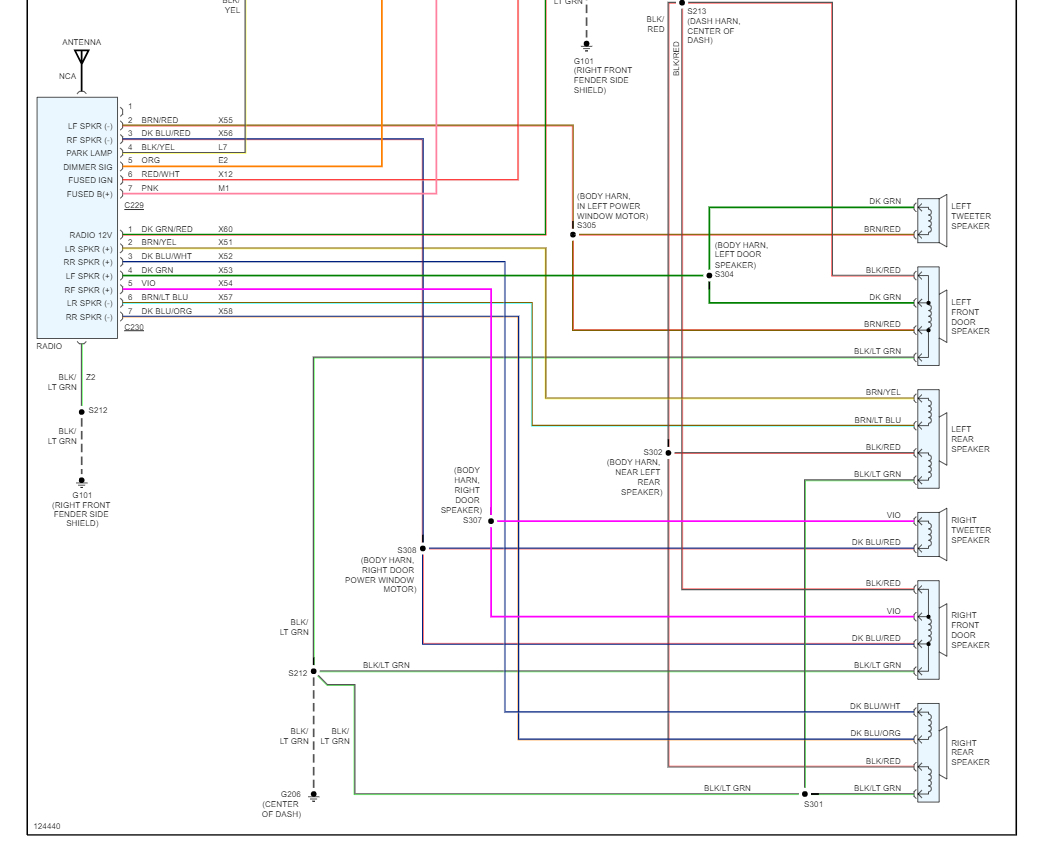

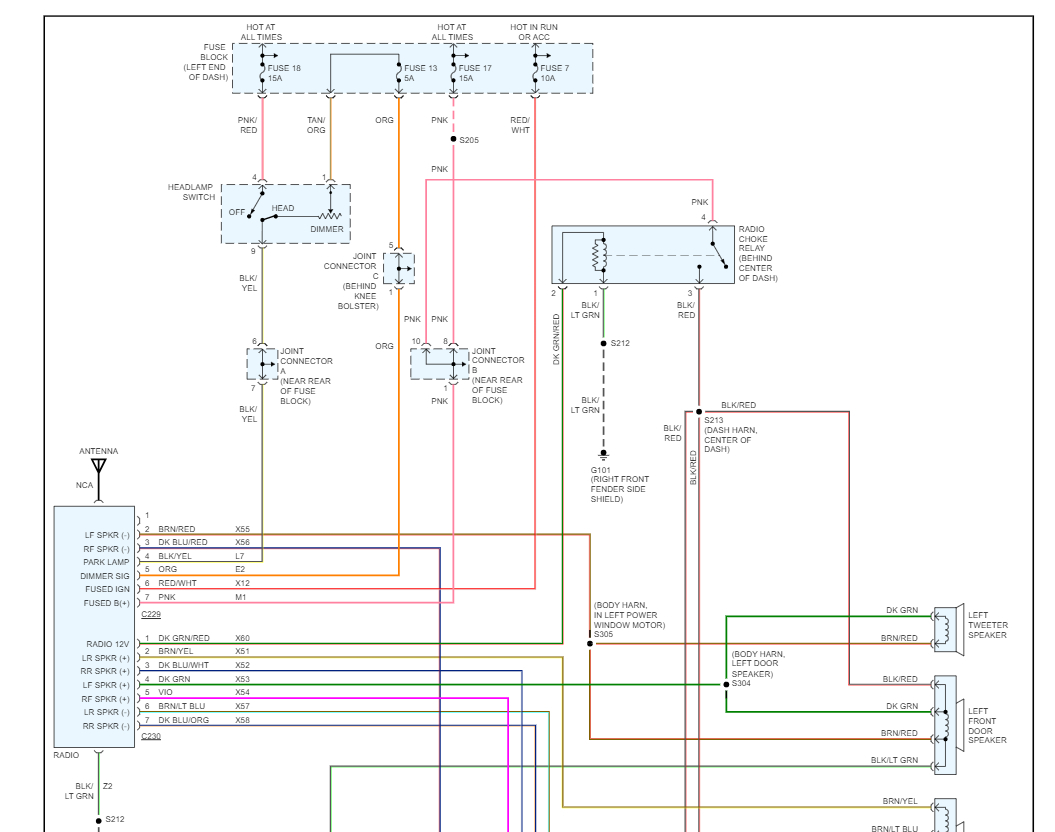

Match the colors. Here are the schematics for the base and premium systems in the Ram truck. Check out the images (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Nov 28, 2011 at 12:50 AM
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS

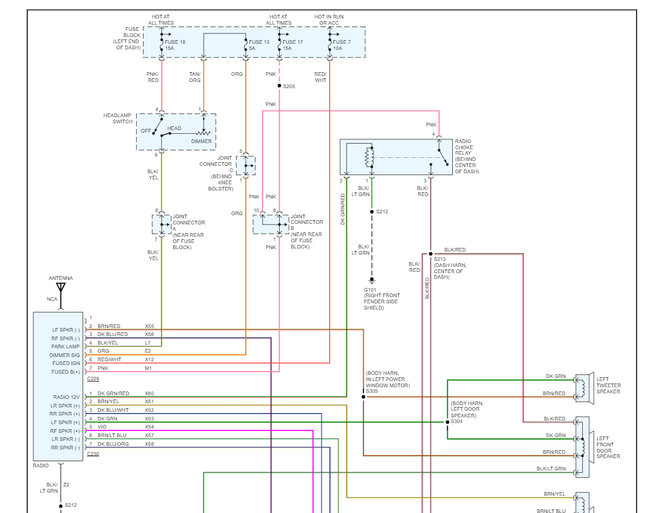

Here are the schematics for the base and premium systems in the Ram truck.
Nov 28, 2011 at 12:57 AM
