ignition

1995 CHEVROLET CORSICA
Avatar
BIZKIT74
  • MEMBER
  • 4 POSTS
I have replaced timing chain,ig.module,and crank sensor and still have no fire to plugs,whats wrong??please help!!!
Apr 10, 2011 at 12:32 PM
Advertisement
Avatar
CRASHNBL
  • MEMBER
  • 4 POSTS
Don't take this as a silly question, but have you checked your fuses?
Apr 10, 2011 at 1:38 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
What is litre size of engine? Did you check voltage and ground to the ignition module?
Apr 10, 2011 at 2:22 PM
Advertisement
Avatar
BIZKIT74
  • MEMBER
  • 4 POSTS
the engine is 2.2L.we have made sure all plug ins were tight.im thinking changing module fried ignition coil,maybe??
Apr 10, 2011 at 5:04 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
I'd check voltage and ground at the ignition module to start. Terminal A--black wire is ground. Terminal B--pink wire is voltage, goes hot with key on. Take connector loose from ignition module, use a test lite between those two terminals, key on, no need to crank. If the lite comes on, you should have good voltage and ground. The voltage circuit is fuse protected. Let us know what you find.
Apr 10, 2011 at 5:31 PM
Avatar
BIZKIT74
  • MEMBER
  • 4 POSTS
fuses inside the car??if so,yes.
Apr 11, 2011 at 7:16 AM
Avatar
CRASHNBL
  • MEMBER
  • 4 POSTS
and as JDL replied....check voltage and ground...I have a 1988 corsica with the 2.8 and mine was having fire problem also...and ended replacing entire coil module....back plate had rusted and was receiving no ground .
Apr 12, 2011 at 12:11 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

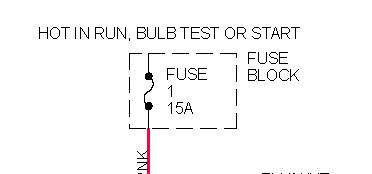

Below is the fuse for ignition module.
Apr 24, 2011 at 7:15 PM
