1995 chevy cosica erg valve

1995 CHEVROLET CORSICA
150,000 MILES • 6 CYL • FWD • AUTOMATIC
Avatar
KEVIN J717
  • MEMBER
  • 2 POSTS
When driving on the highway, reaching 60mph, then dropping down to 50mph the sevice engine light comes on. I had the codes checked and the recomendation was to change the ERG valve. the valve was changed, the same light comes back on at the same speeds, with the same code. No noticeble change in the engine. It is an electronic valve, no vacume hose. The car has 150,000 miles We should I look for next?
May 4, 2011 at 8:10 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
No driveability issues? What was the actual code/s?
May 4, 2011 at 9:01 PM
Avatar
KEVIN J717
  • MEMBER
  • 2 POSTS
The code is 77egr selinoid 3. The engine runs the same wether the light is on or not.
May 11, 2011 at 7:56 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Your saying, there are no driveability issues other than the lite? You need to use a scanner that shows live engine data and has freeze frame. The freeze frame may show what was going on when the problem occured. Egr passages all clean? I can't do much from here. Intermittent issues can be a pain to track.
May 11, 2011 at 8:35 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

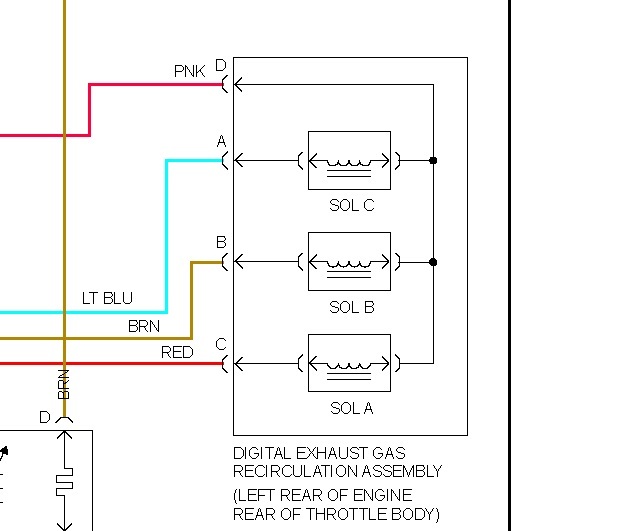

You can take connector loose from egr and computer. Use a testlite to check for ground, with everything turned off. Shouldn't be any ground, unless wiring circuit is shorted. Terminals A--B--C ARE GROUNDS. Termi nal D is voltage with the key on.
Image (Click to enlarge)
Attached Media
May 11, 2011 at 9:16 PM
