fuse box complete electrical shutdown

1995 CHEVROLET CAPRICE
69,000 MILES • 6 CYL
Avatar
2CP-ARCHIVES
  • MEMBER
  • 4,540 POSTS
We have had a complete electrical shutdown. No dash, interior or anything. I've tried the Caprice battery in another car and it's fine. One mechanic suggested checking to see if there are fusible links coming off the starter and see if these are shot. The Haynes manual wiring diagram shows a 60A fuse in the under hood fuse box instead of fusible links for the '94-'96 models. Any other suggestions? I haven't crawled under the car yet.
Nov 9, 2010 at 8:52 PM
Advertisement
Avatar
2CP-ARCHIVES
  • MEMBER
  • 4,540 POSTS
We would start at the differential with a 12-volt test light checking for voltage on the main power leads to locate the short or bad connection.

This guide should help

https://www.2carpros.com/articles/how-to-check-a-car-fuse

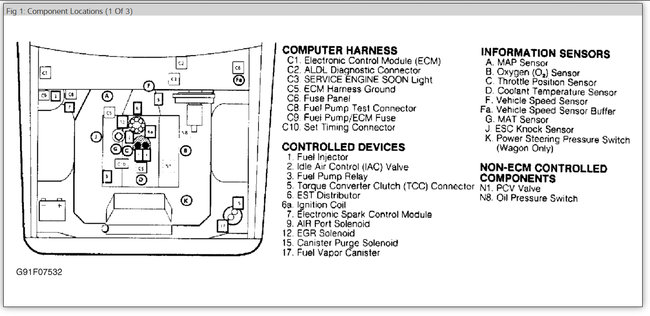

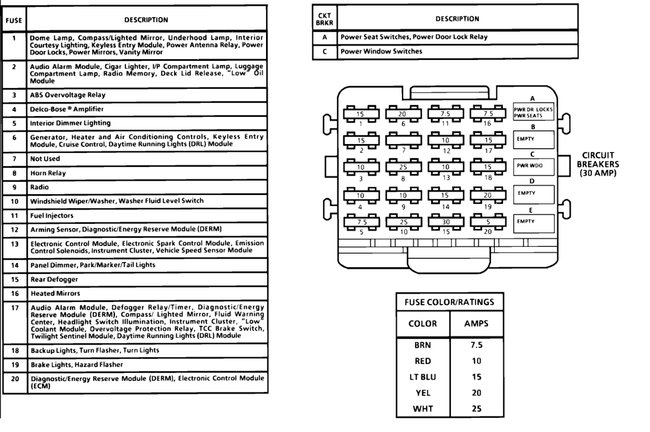

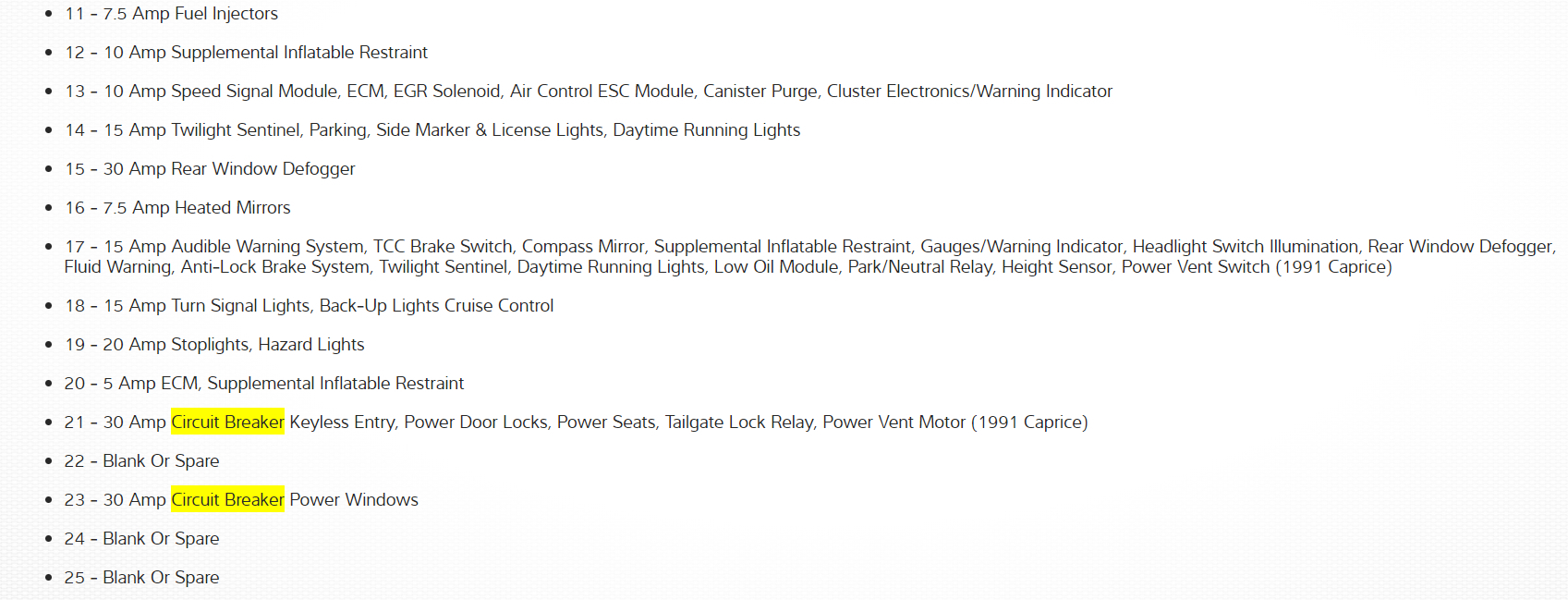

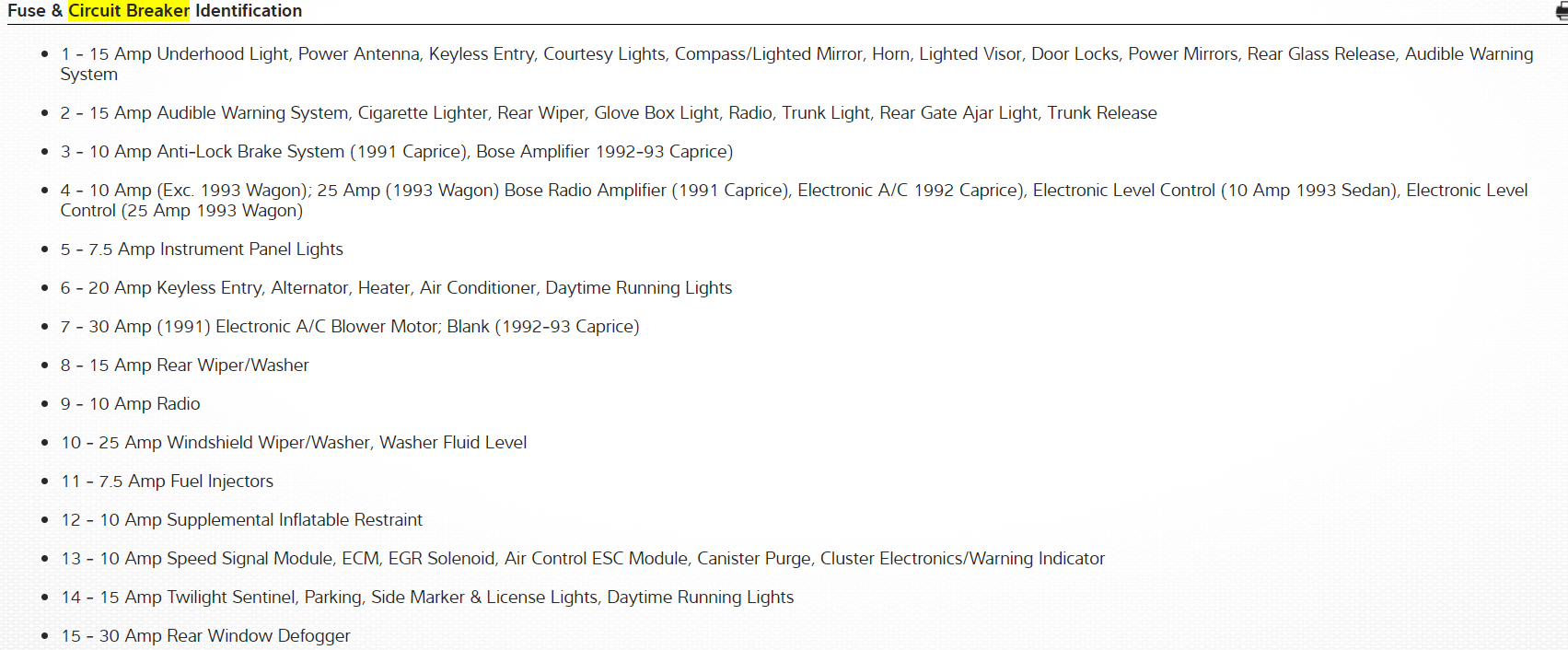

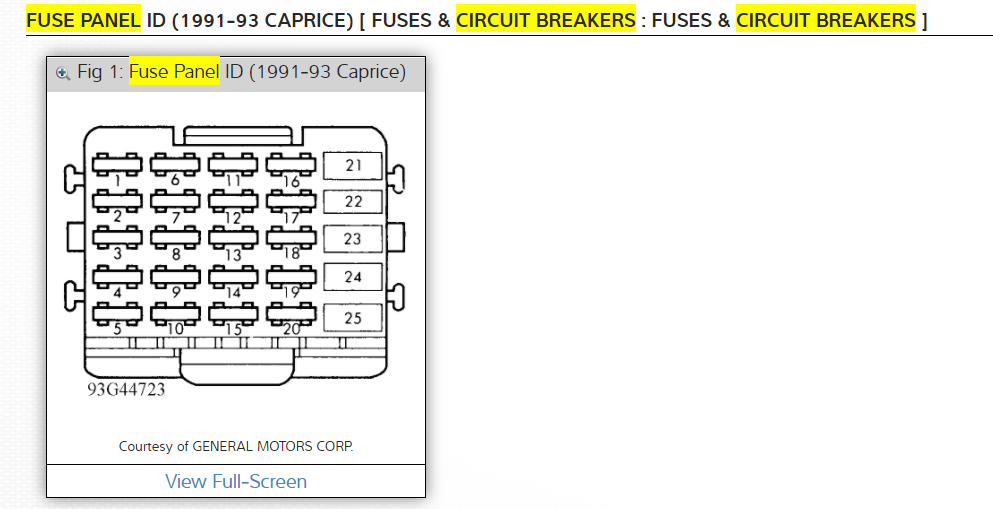

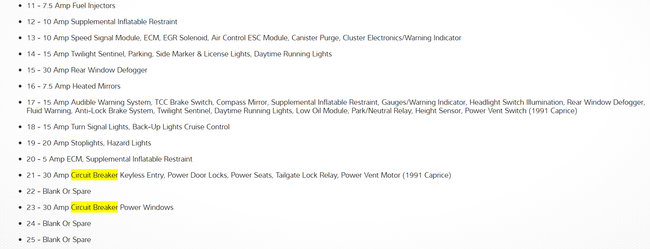

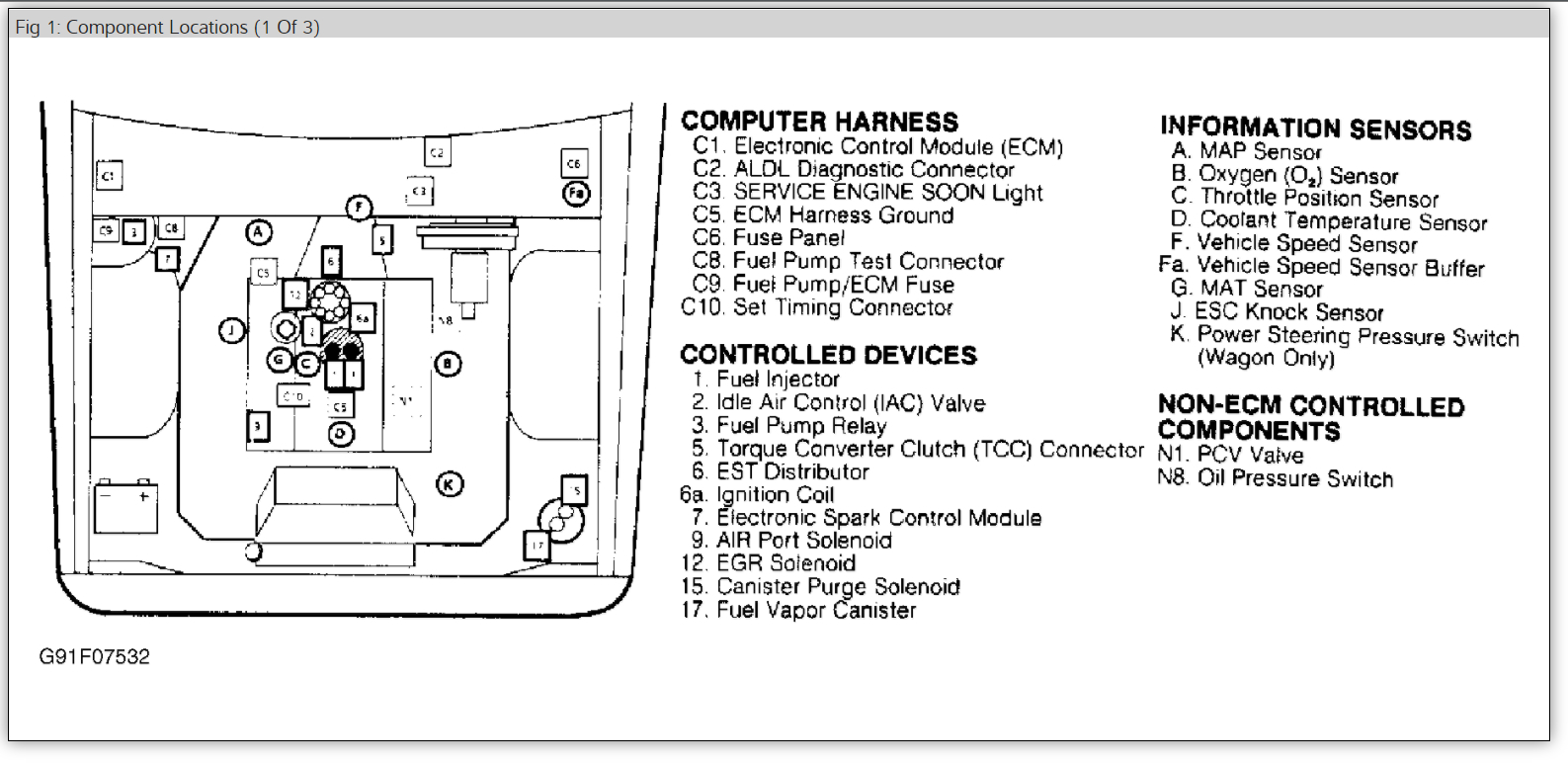

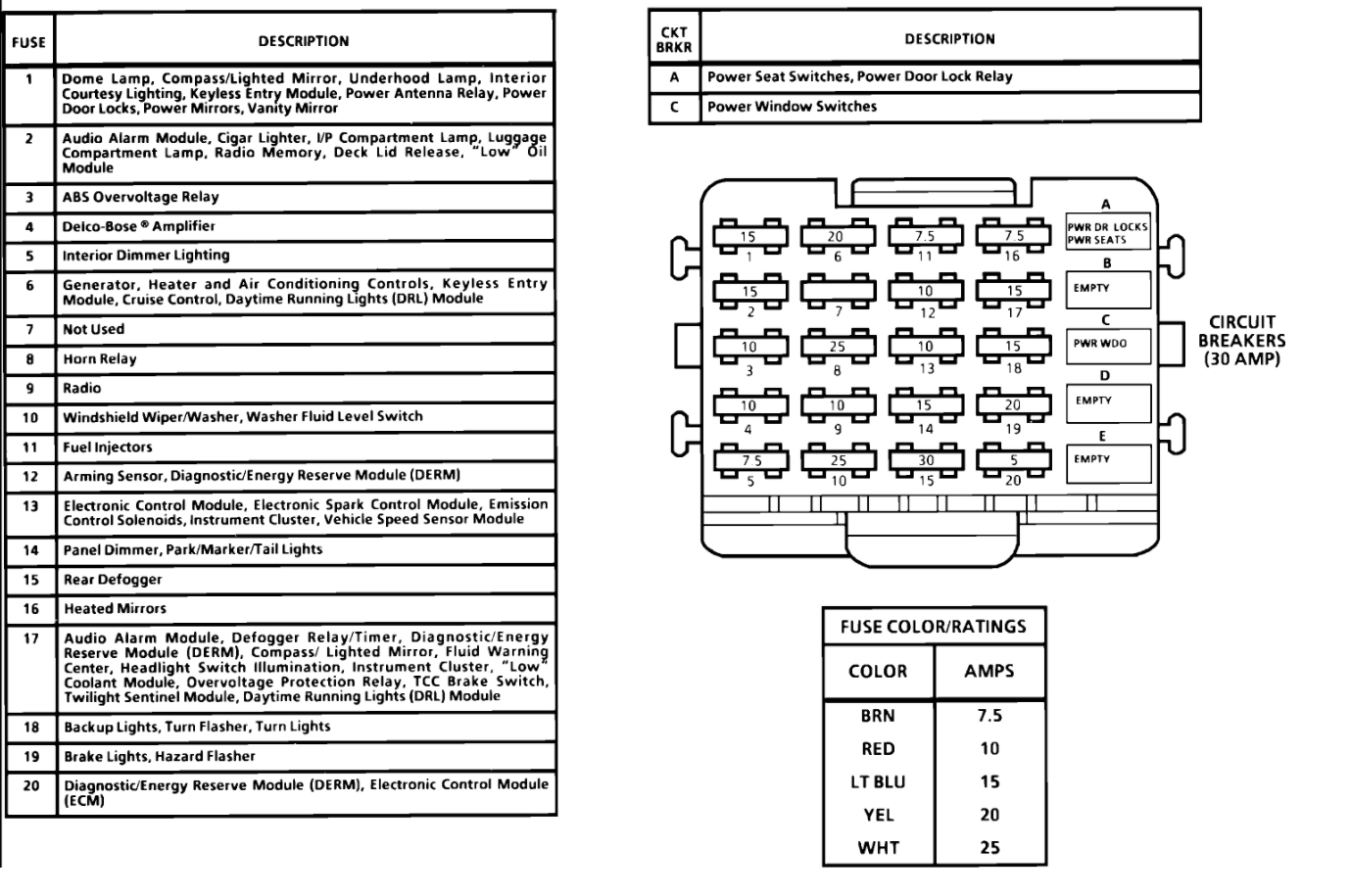

Check out the diagrams (Below). Please let us know what you find.
Nov 9, 2010 at 8:53 PM
