My alternator needed to be replaced and now my friend and I cannot figure out how to put the tension belt back on it.
Mar 16, 2013 at 5:48 PM
1995 CHEVROLET BERETTA
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement

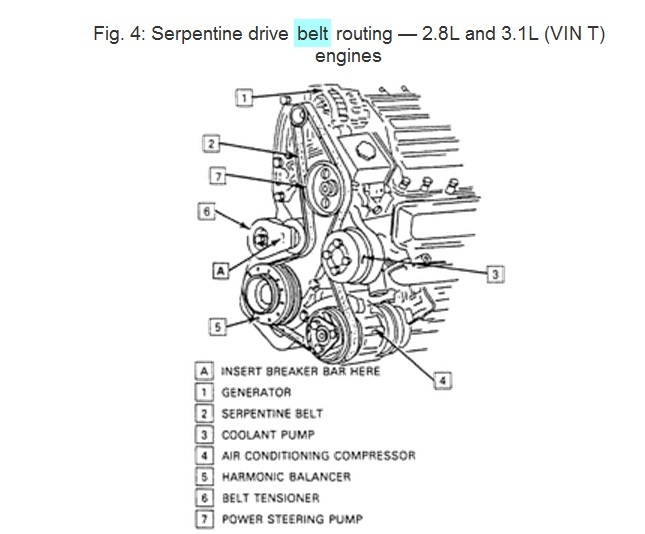

How did you remove the belt? The tensioner has a cut-out in it, you use the proper rachet drive or breakover bar in the cut-out, the tensioner is spring loaded, pull up on it. Note the diagram, also note the engine litre size and vin.
Image (Click to enlarge)
Mar 16, 2013 at 6:09 PM
