Gear Indicator Fault

1995 CADILLAC DEVILLE
155,000 MILES
Avatar
THINKIN_THOWED
  • MEMBER
  • 18 POSTS
Gear Indicator Fault Has been on my dash ever since I got the car, sometimes it goes away for a while then I will see it for a few days. what is it referring to? some1 mentioned that its user generated by not putting it fully into gear. I mostly see it when shifting into park
Nov 6, 2013 at 8:11 AM
Advertisement
Avatar
THINKIN_THOWED
  • MEMBER
  • 18 POSTS
I027 (PRND321 switch failure) is the trouble code
Nov 6, 2013 at 3:35 PM
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
Thanks for adding the code. This is called a transmission range sensor.

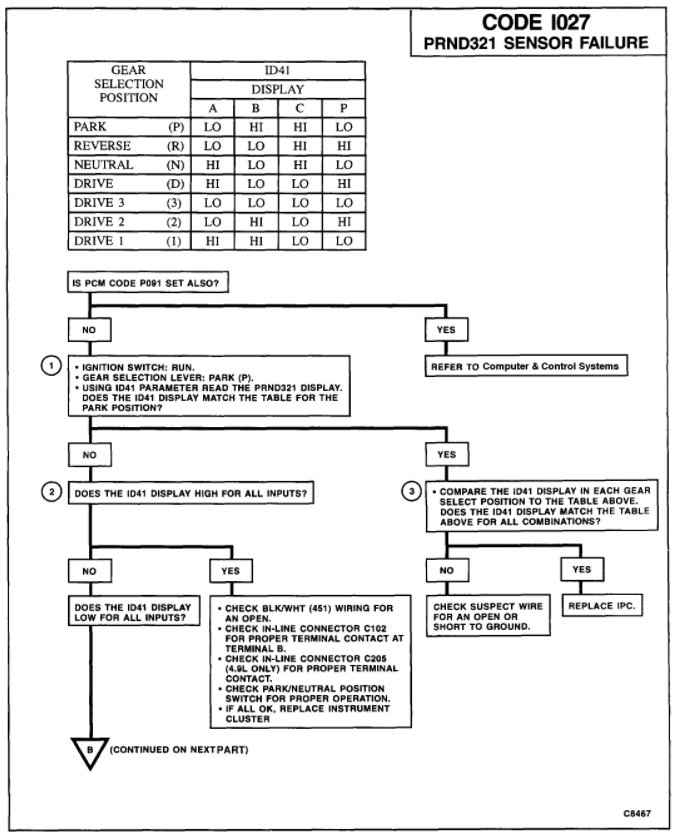

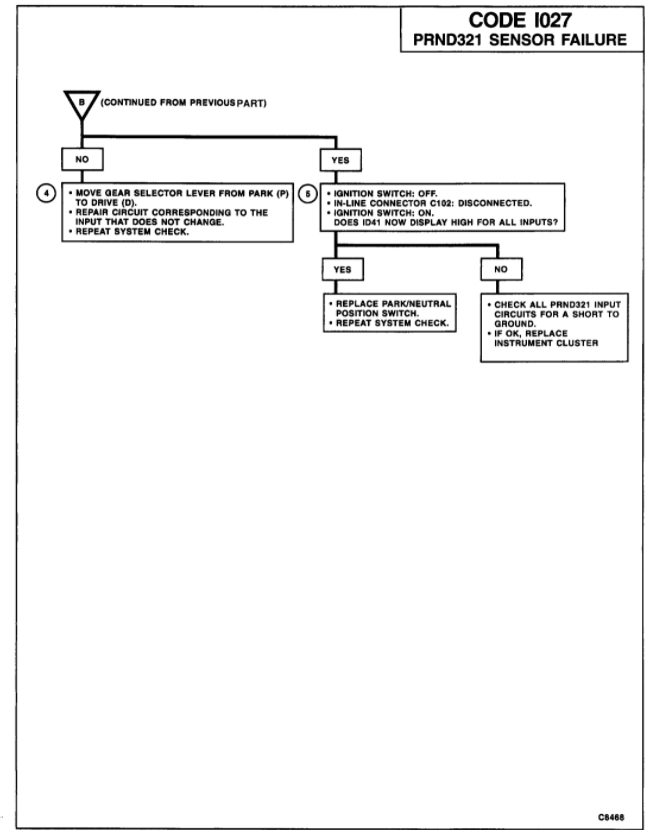

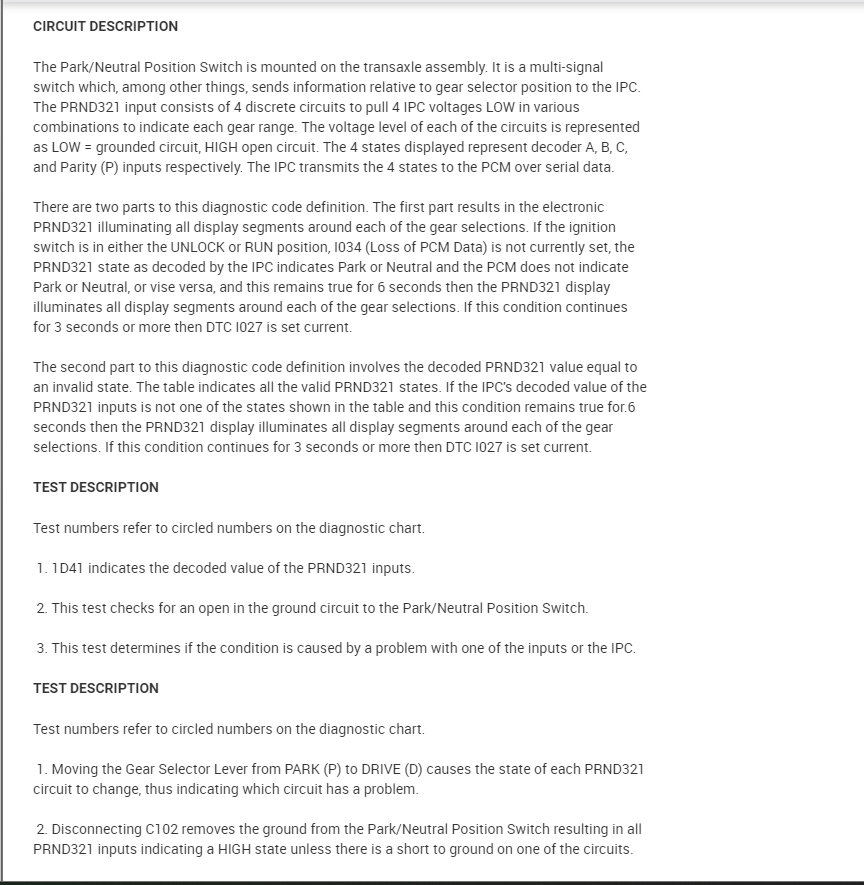

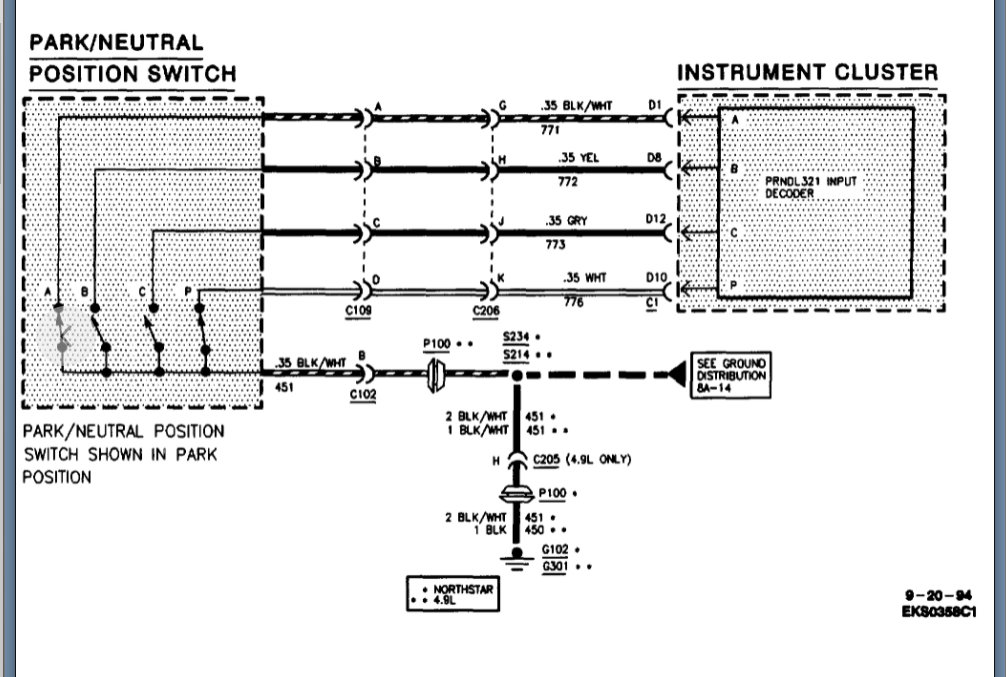

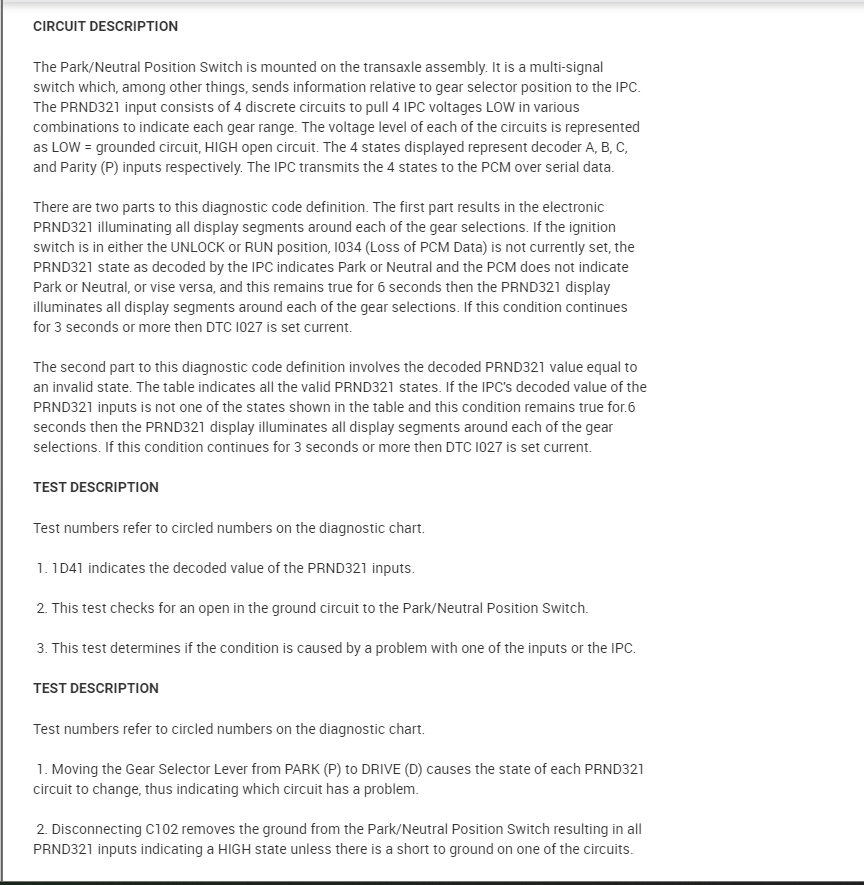

More than likely this needs to be replaced but I am attaching the info below on how to test this for this code.

Here are a couple of guides that will help with completing this testing:

https://www.2carpros.com/articles/how-to-check-wiring

https://www.2carpros.com/articles/how-to-use-a-voltmeter

Please see the attached info and let us know what questions you have.

Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Mar 4, 2022 at 5:24 PM
