fuel pump relay location

1994 VOLVO 940
4 CYL • 2WD • AUTOMATIC
Avatar
ROBBRICHARD
  • MEMBER
  • 14 POSTS
1994 volvo 940 wagon where is the fuel pump relay replaced fuel pump , fuses are good still no fuel?
May 22, 2011 at 8:06 PM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
Hello,

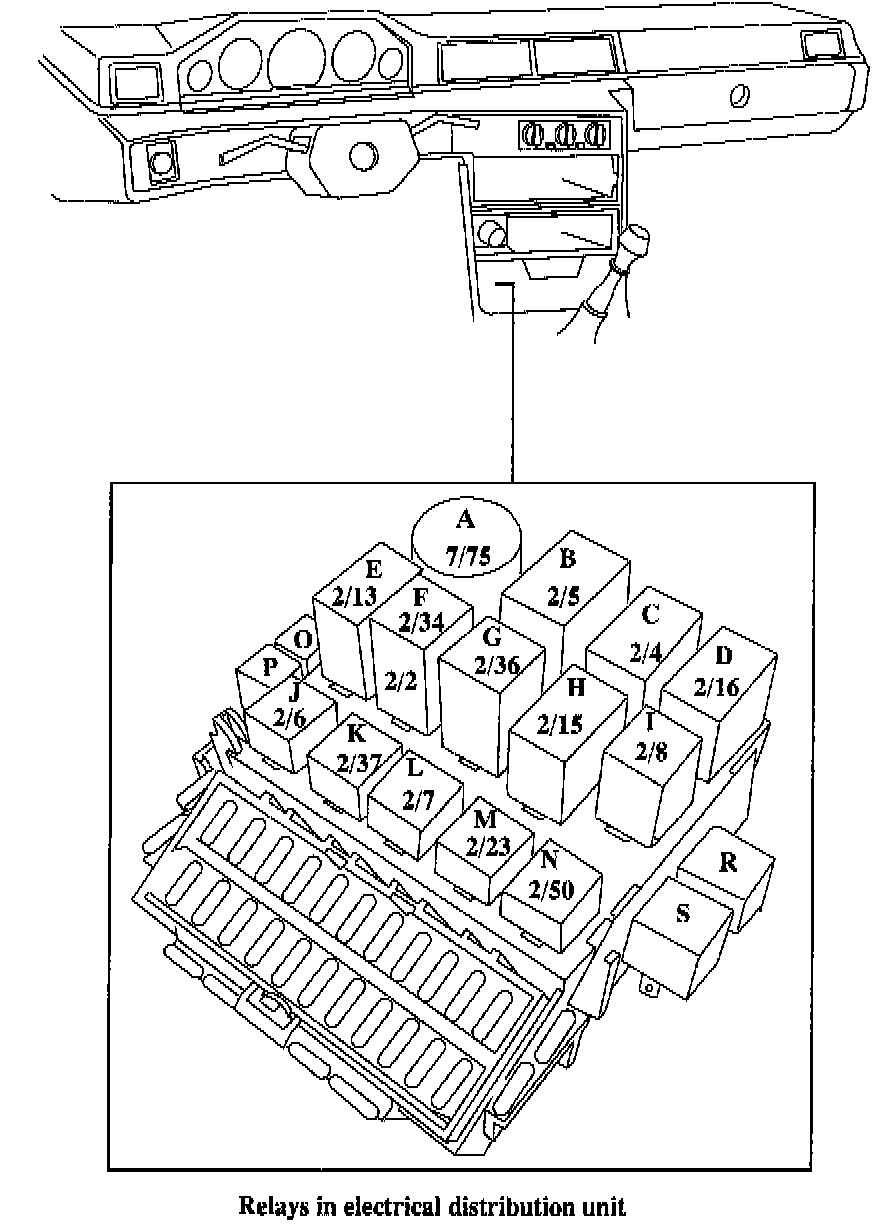

The fuel pump relay is near the center oft he dash here is a guide to help you test it and the location below.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

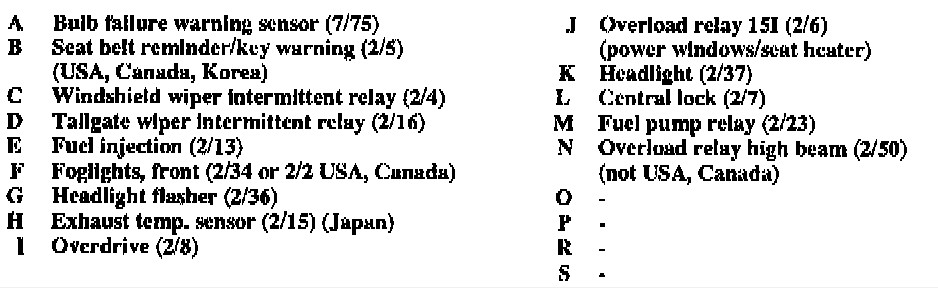

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Cheers
May 22, 2011 at 8:44 PM
Avatar
MANOSMITH
  • MEMBER
  • 1 POST
The check engine light came on and when I accelerate the gas pedal it hesitate to move and the engine dies off. Got it started again and it does the same thing couple of times. I have replaced the fuel pump, fuel filter, air filter and fuel pump relay. What else would have gone wrong or bad. Please advise as I am worried it may happen again while I am on H'ways with small children on board.

Thank you
Oct 27, 2018 at 5:37 PM (Merged)
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
Code indicates fault in Mass Air Flow Meter or Fuel Injection Main Relay
Oct 27, 2018 at 5:37 PM (Merged)
