What is the torque pattern and poundage for the head bolts in a 1994 toyota paseo 1.5 cyl 5efe?
1994 TOYOTA PASEO
250,000 MILES
ANDREWCOAKLEY
MEMBER
14 POSTS
FOLLOW
i cant find head bolt specs on it
Sep 2, 2012 at 11:23 PM
Advertisement
SATURNTECH9
CERTIFIED EXPERT
30,869 POSTS
I will get those to you shortly.
Sep 2, 2012 at 11:54 PM
SATURNTECH9
CERTIFIED EXPERT
30,869 POSTS

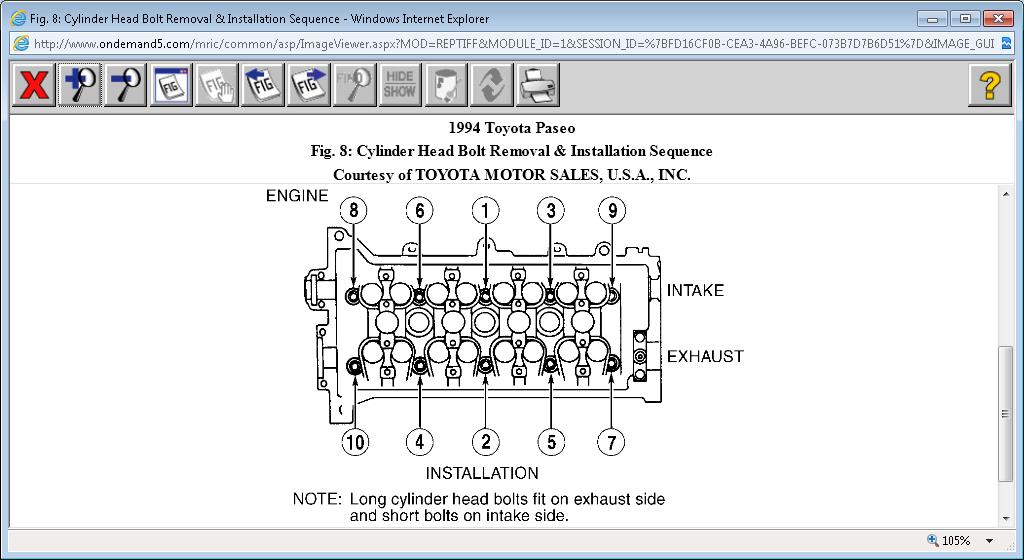

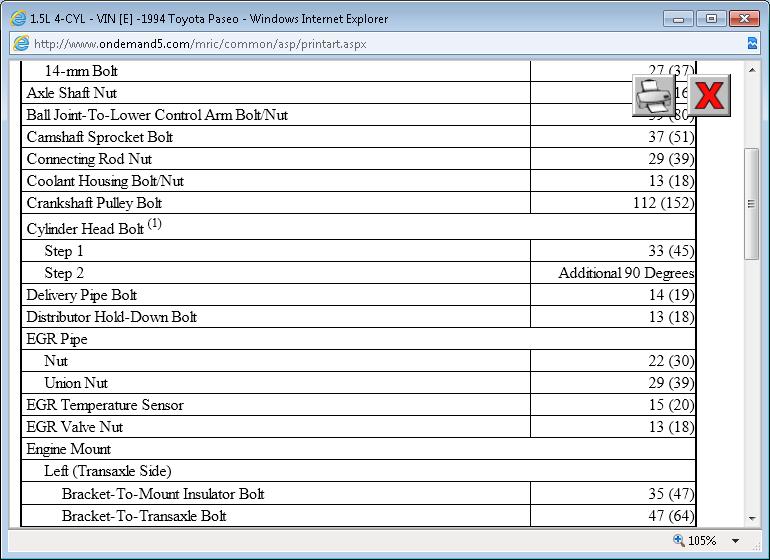

There you go.
Images (Click to enlarge)
Sep 3, 2012 at 12:07 AM
Advertisement
ANDREWCOAKLEY
MEMBER
14 POSTS
are all head bolts 33 foot lbs?
Sep 3, 2012 at 12:14 AM
SATURNTECH9
CERTIFIED EXPERT
30,869 POSTS
Yes all the ones shown in the diagram I posted.
Sep 3, 2012 at 12:17 AM
ANDREWCOAKLEY
MEMBER
14 POSTS
so all cylinder head bolts are at 33 lb right?
Sep 3, 2012 at 12:22 AM
SATURNTECH9
CERTIFIED EXPERT
30,869 POSTS
There is 10 head bolts shown in the diagram there 33FTLBS then second pass a additional 90 degrees.
Sep 3, 2012 at 12:26 AM
ANDREWCOAKLEY
MEMBER
14 POSTS
thanks very much for cerifing and info the info
Sep 3, 2012 at 12:37 AM
SATURNTECH9
CERTIFIED EXPERT
30,869 POSTS
Your welcome that's what were here for.
Sep 3, 2012 at 12:53 AM
