i found code 22 appeared but don't know how to fix it. Can you help?
Jul 24, 2015 at 10:52 PM
1994 Toyota Camry 22 code
1994 TOYOTA CAMRY
LEEDER
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Code 22 for your specific vehicle is for the ECT(engine coolant temperature) sensor
Check resistance on the ect sensor.
at water temp of 68degrees resistance should be 2ohms and at 104 degrees resistance should be 1ohms and at 140 degrees resistance should be at 0.5 ohms.If not within specs, replace it. If ok, check for cut/chafed wiring harness.
Check resistance on the ect sensor.
at water temp of 68degrees resistance should be 2ohms and at 104 degrees resistance should be 1ohms and at 140 degrees resistance should be at 0.5 ohms.If not within specs, replace it. If ok, check for cut/chafed wiring harness.
Jul 24, 2015 at 11:45 PM
replace the engine coolant temp sensor

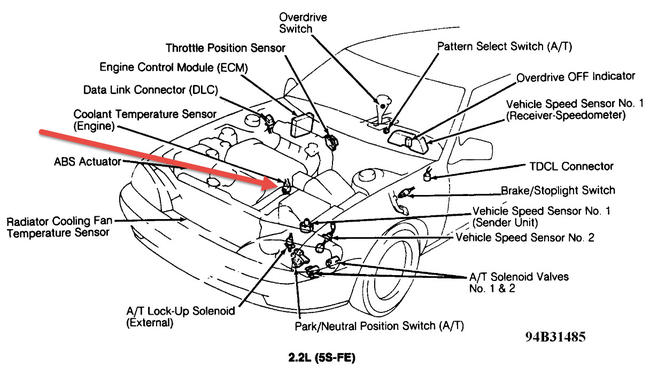

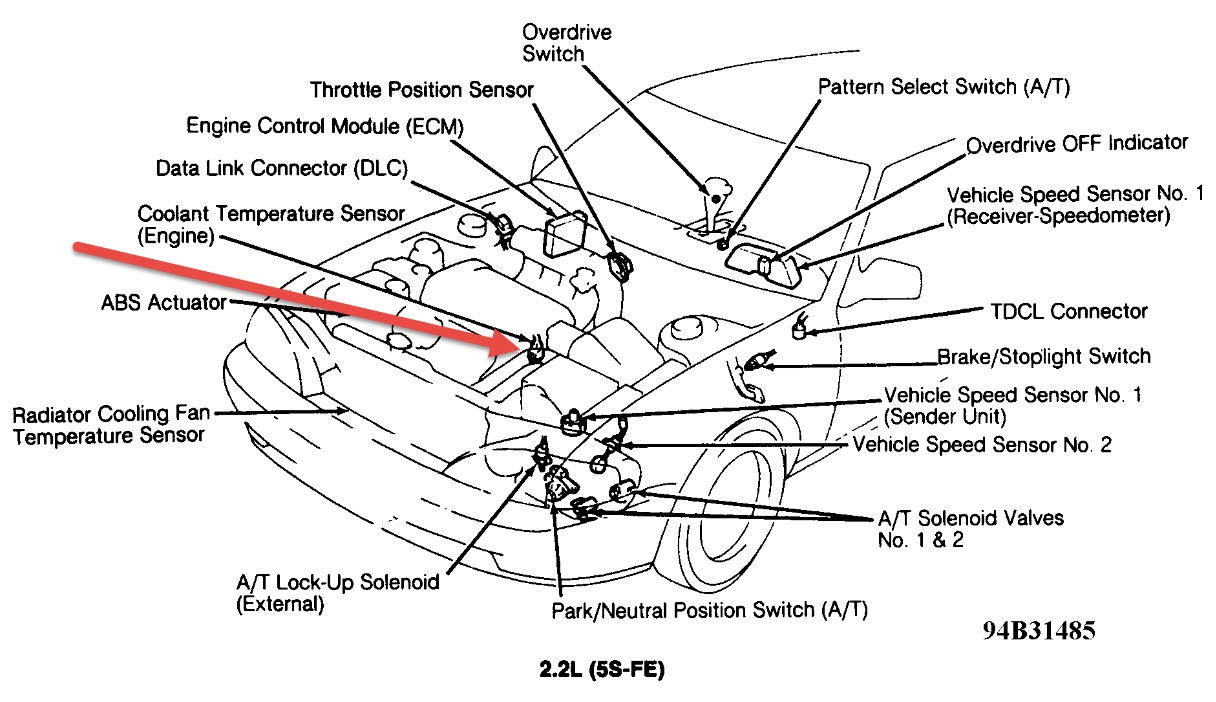

Image (Click to enlarge)
Jul 25, 2015 at 6:10 AM
