1994 MITSUBISHI MIRAGE
150,000 MILES
Avatar
JOSE BRANDI
  • MEMBER
  • 15 POSTS
Hi guys,

I have a Mitsubishi Mirage 1994. I think that this car have a electrical problems, but a don't identify the root cause. The car crank but not start. Some times start at random and then stop. I detected a oil leak and replaced the seal.
Then I changed, spark pugs, cables, rotor, ignition cap, and coil. When the car don't start not spark is present. At random times, a moved the ignition and start and them stop.

The ignition could be defective? If the answer is yes, How may test it before replace it. or another think that I considered to test and replace.

Thanks Guys and Happy Holidays!

Jose
Dec 26, 2012 at 1:08 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Which engine do you have?
Dec 26, 2012 at 2:11 PM
Avatar
JOSE BRANDI
  • MEMBER
  • 15 POSTS
1.5 L
Dec 26, 2012 at 5:16 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Let us start with the basic test.

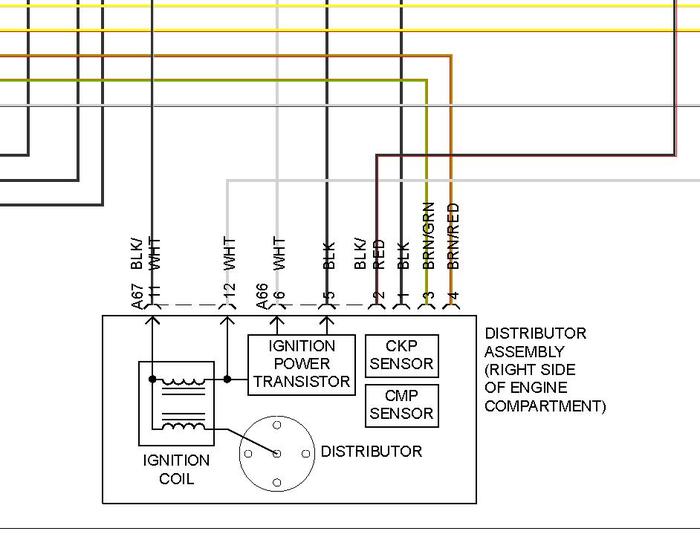

At the distributor, there are a few wires and the biggest size of all, Black/White gets its power from the igntion switch. When you have a no spark condition, check to see if you have battery voltage at this wire with ignition switch turned on and while cranking. If power is available, the problem is most likely to be the ignition coil.
Image (Click to enlarge)
Attached Media
Dec 27, 2012 at 2:27 PM
Avatar
JOSE BRANDI
  • MEMBER
  • 15 POSTS
KHLow2008

Thanks a lot!

Jose
Dec 28, 2012 at 1:58 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You're welcome.
Dec 28, 2012 at 1:52 PM
