I need to replace the heater core on my son's 94 Mazda Navajo...looking for some insight
Jan 20, 2011 at 1:43 PM
heater core 94' Mazda Navajo
1994 MAZDA NAVAJO
RPS262
- MEMBER
- 1 POST
- FOLLOW
Advertisement
HEATER CORE
Removal & Installation
Disconnect heater hoses from heater core, and plug hoses.
Remove 4 heater core access cover bolts from bottom of heater case.
Pull heater core rearward and then down.
To install, reverse removal procedure.
© 2008 Mitchell Repair Information Co., LLC.
Removal & Installation
Disconnect heater hoses from heater core, and plug hoses.
Remove 4 heater core access cover bolts from bottom of heater case.
Pull heater core rearward and then down.
To install, reverse removal procedure.
© 2008 Mitchell Repair Information Co., LLC.

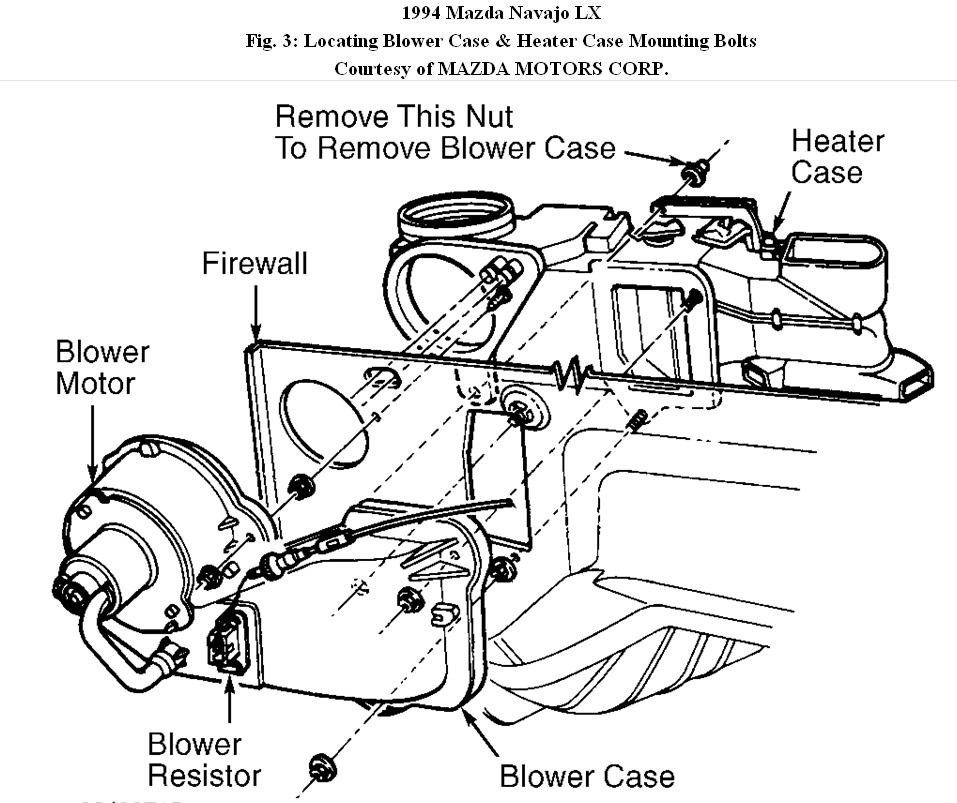

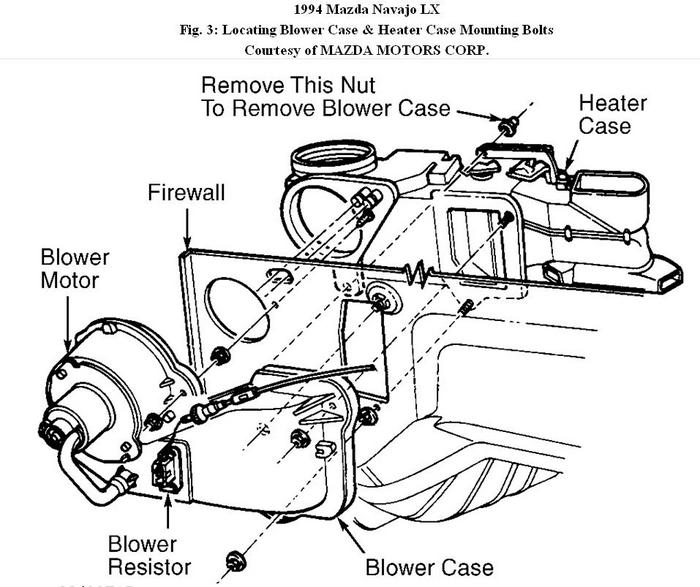

Image (Click to enlarge)
