1994 MAZDA LANTIS
150,000 MILES
Avatar
SCOTTHEWITT
  • MEMBER
  • 3 POSTS
Trying to find the fuel pump reset switch in a 1994 Mazda Lantis (known here in Australia as Astina) V6 5-speed manual. The fuel line does not seem to be blocked or damaged/leaking anywhere, I'm just not getting fuel to the injector bank.
Jan 26, 2013 at 5:08 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Japanese makes do not have any fuel pump reset switches. Did you test the fuel pump and its relay?
Jan 26, 2013 at 1:53 PM
Avatar
SCOTTHEWITT
  • MEMBER
  • 3 POSTS
Seeming though no-one can tell me the exact location for both the fuel pump relay and the MAIN relay, I'm at a standstill until I can find them...
Feb 15, 2013 at 11:57 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

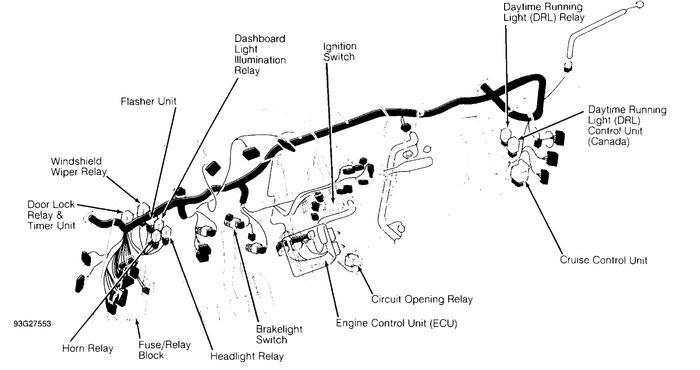

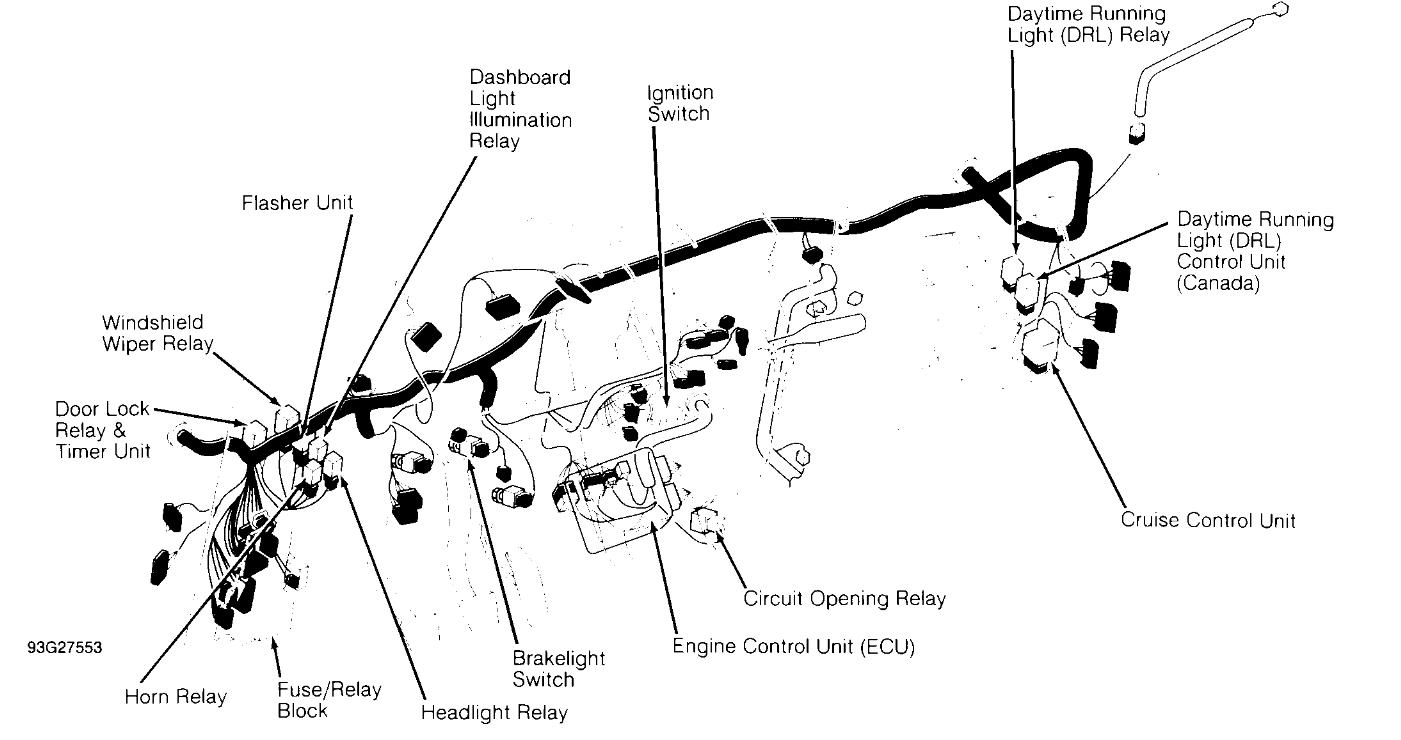

We do not have any information for your vehicle but for Mazda, there are a few locations so you can try them. The fuel pump relay could be located in front of the center console under a panel on the passenger side if it is not found in the engine compartment relay box.

Have you tested the fuel pump?
At the DLC there is a F/P terminal. Apply battery voltage to it and note if the fuel pump works. You might need to turn ignition switch on.
Image (Click to enlarge)
Attached Media
Feb 16, 2013 at 5:07 AM
Avatar
SCOTTHEWITT
  • MEMBER
  • 3 POSTS
Done and running! After replacing the whole distributor with a brand new unit, I pulled every fuse and every relay out, cleaned all terminals and metal bits, then replaced them all to a tight fit. Put everything else back together to a snug fit, cleaned and tightened the battery terminals, then key in and Varoom! All good now. Thank you for your advice...
Feb 17, 2013 at 8:13 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Glad to know you have fixed the problem.

Have a nice day.
Feb 18, 2013 at 12:34 AM
