What is wrong with my radio?

1994 LEXUS LS 400
Avatar
LEAHWHEELER
  • MEMBER
  • 2 POSTS
The alternator in my car went bad, i replaced it with a brand new one; my battery in my car is new as well..... after i replaced it my radio,interior lights and power button for my steering wheel no longer works. i have tried replacing all the fuses and still no luck. any advise?
Sep 23, 2012 at 8:15 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Did you check the fuses underhood?
Sep 23, 2012 at 8:21 PM
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
check fusible link AM1
Sep 23, 2012 at 8:26 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

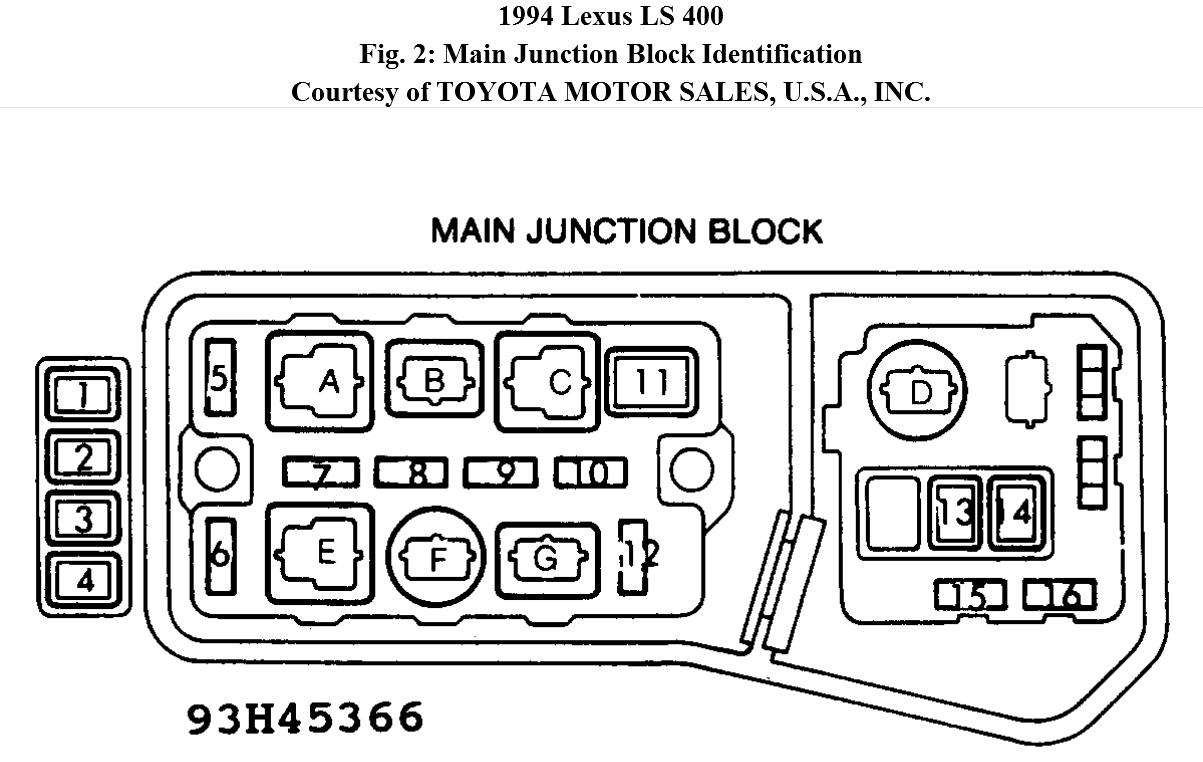

Fuse # 7 underhood.
Image (Click to enlarge)
Attached Media
Sep 23, 2012 at 8:26 PM
Avatar
LEAHWHEELER
  • MEMBER
  • 2 POSTS
thank u i did check the fuses under the hood but i checked the one for the radio not the number 7.
Sep 23, 2012 at 10:01 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
# 7 is for the radio and dome lights.
Sep 23, 2012 at 10:09 PM
