Heater not working

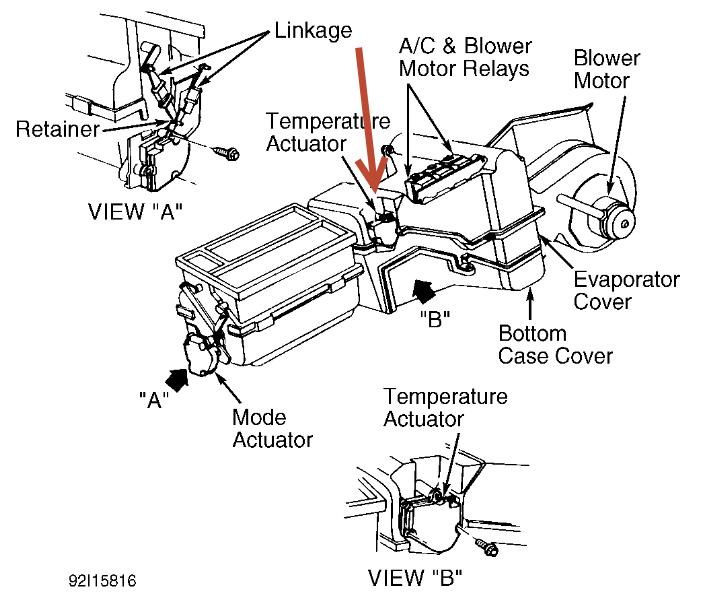

see if the actuator i pointed to in the pic is working that may be your problem. Here are tow guides to help you fix the problem.

https://www.2carpros.com/articles/car-heater-not-working

and

https://www.2carpros.com/articles/replace-blend-door-motor

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.

I had to get a new actuator cost me $67.00 all fixed!

a/c doesnt get cold heat doesnt get hot. air sounds like it shud b blowin hard but its barely comin out.cant even feel it on low setting.can still hear it tho. changed thermostat and flushed core??please help

Actually, it sounds like there is a problem with the blend air door. This door is near the heater core. Its job is to turn one direction to allow the fan to blow air through the heater core and heat the vehicle, and the other direction is for the AC to cool the vehicle. Based on your description, it sounds like it is stuck in the middle. Therefore, you don't get good AC or heat and there is less air entering the vehicle.

how do i get to this door and i have read something about a blend door actuator is that the same thing? it is a digital control if that matters.

It will be next to the heater core. The actuator is the device that moves the door. Yes, it can be bad.

what about the blend door motor? and is there a way to tell which one it is. when pushing buttons on the control panel i can hear clicks coming from something near the heater core

also will i have to open up the core housing to get to the door

Everything may be working but need adjustment. You need to try it while you check the part. If you hear it, chances are something is disconnected or out of adjustment.

will i have to open the core housing to get to the door

Yes

ok s its not the blend door. found its working smoothly. although there was a gadget unplugged. plugged it back in (into a box that looked like the actuator box in the fron but this was in back (motor side) ) after plugging that in the box mad a loud clicking noise until we unplegged it..any ideas

I would need to see a picture. It sounds like an actuator.
