1994 Dodge Intrepid lights

1994 DODGE INTREPID
3.3L • 6 CYL • 2WD • AUTOMATIC
Avatar
BIGAL831
  • MEMBER
  • 9 POSTS
my back lights wont turn on when i hit them i check the lights and there good i also checked the fuses and are good as well so what do you think i should check next .
Mar 31, 2015 at 9:43 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Did you check for voltage, anywhere. You can check for voltage at applicable fuse circuit and at the wiring for b/u lamps. Check ground also. I believe the b/u lamps are wired through neutral switch. I'll double check.
Mar 31, 2015 at 11:35 AM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

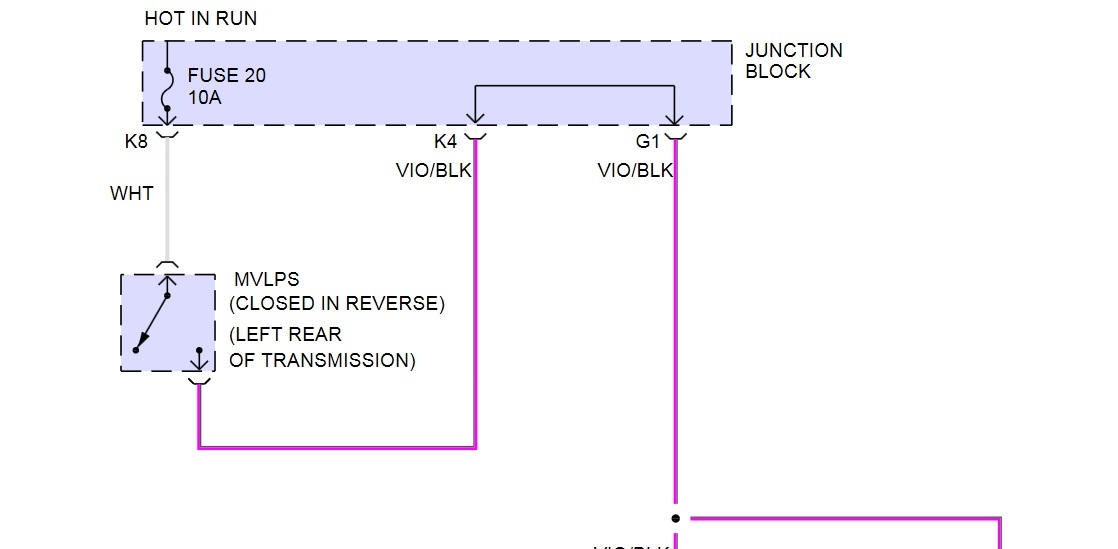

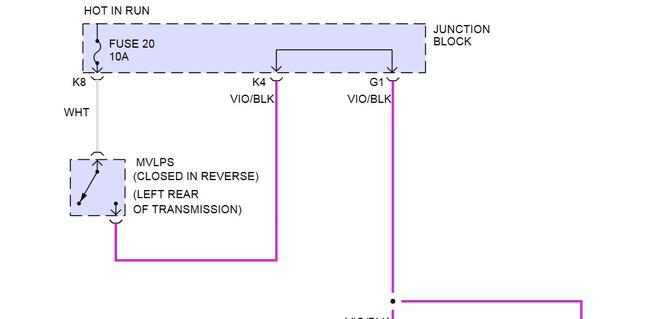

Just wanted to post diagram for b/u lamps. Note the fuse, check that. Purple wire is voltage to lamp, black wire is ground. mvlps = manual valve lever position switch.
Image (Click to enlarge)
Attached Media
Mar 31, 2015 at 11:44 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Ok, it isn't purple, it's violet, voltage wire.
Mar 31, 2015 at 11:45 AM
