wireing diagram

1994 CHEVROLET S-10
4WD
Avatar
PJ1CHAS
  • MEMBER
  • 1 POST
diamgran of rear lighting wireing harness
Aug 2, 2011 at 8:00 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
What's the problem? Brake lights, tail lights?
Aug 2, 2011 at 8:06 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

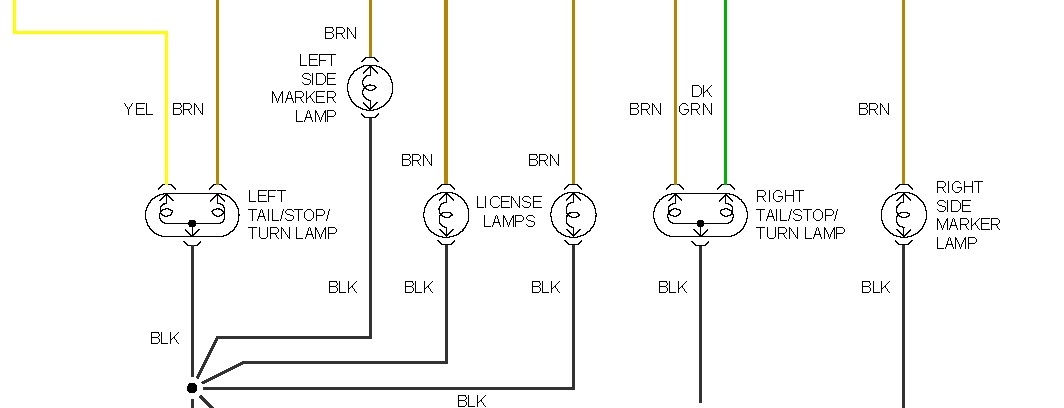

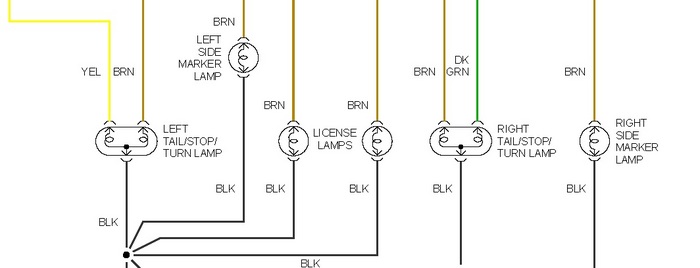

Diagram below. Brown wire is voltage for tail lamps. The other color wires is voltage for stop/turn. Black wire is ground.
Aug 2, 2011 at 8:10 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Did I forget the diagram?
Image (Click to enlarge)
Attached Media
Aug 2, 2011 at 9:09 PM
