1994 Chevrolet Camaro Head Lights

1994 CHEVROLET CAMARO
166,816 MILES • 3.4L • 6 CYL • 2WD • MANUAL
Avatar
JUSTINTIME4444449
  • MEMBER
  • 4 POSTS
My headlights (high Beams0 and Low beams all on all the time at the Same Time. I do not have a dimmer switch or it is Broke (Not Sure) there is a switch on the left side ot he dash by the Headlight switch. I believe it is the Highbeams Swith but not sure. It is not working as the Highbeams are on all the time. I have side by side headlights and I am unsure which are the highbeams and How to make one set go out. I was wondering if anyone could give me guidance on this issue. I just got the car and am trying to get it ready for inspection and it wont pass with High beams and Low Beams on all at once? How to fix this issue or Wire to a new toggle switch. to pass inspection? Thanks justin
Mar 29, 2015 at 12:05 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
move your turn signal switch either up or down that is why it's called a multi function switch
Mar 29, 2015 at 12:08 PM
Avatar
JUSTINTIME4444449
  • MEMBER
  • 4 POSTS
yes it is either Broke or it was not made to Switch them? I am trying to get the car ready for inspection to pass and the switch inside the Column Must be broke, so I am trying to make it so I can just pass inspection.
Mar 29, 2015 at 12:11 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
then the switch may have been replaced by one of the cheap Chinese ones that won't do what it is supposed to replace the switch.
Mar 29, 2015 at 12:13 PM
Avatar
JUSTINTIME4444449
  • MEMBER
  • 4 POSTS
ok As in my original question can I put the High beam lights on a HP toggle switch, If so Can you guide me on how to rewire it?
Mar 29, 2015 at 12:31 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

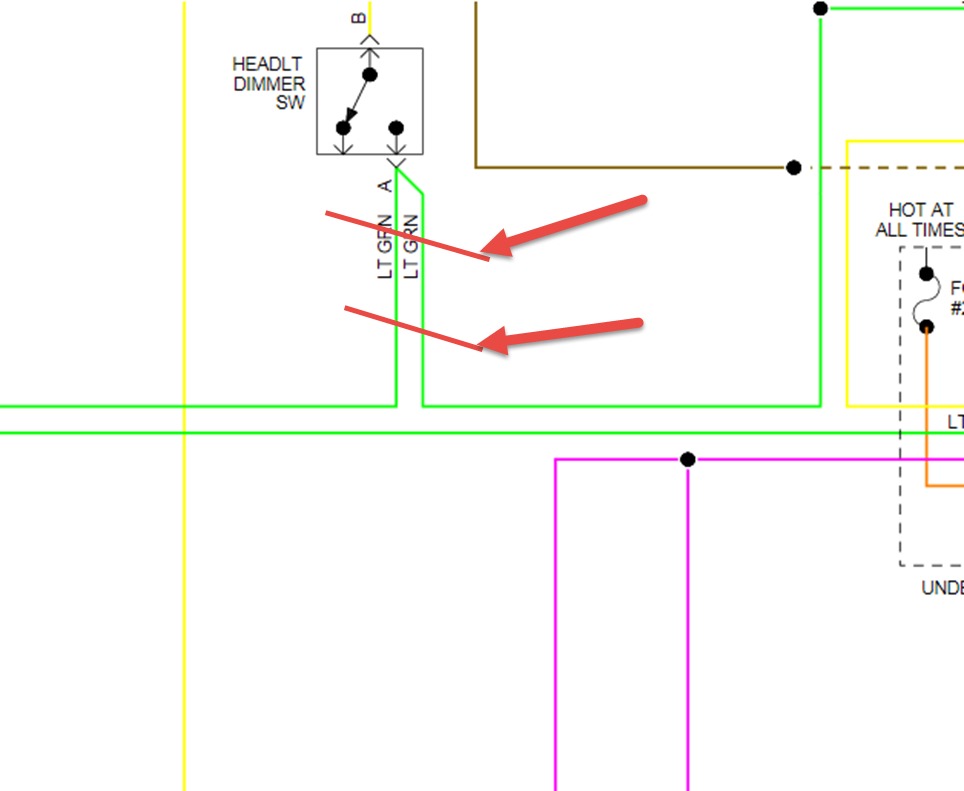

cut wires where marked at base of steering column. run a lead from both wires to a toggle switch. run another lead to other two wires and tie them together when switch is moved light shold go to low beam
Mar 29, 2015 at 12:52 PM
Avatar
JUSTINTIME4444449
  • MEMBER
  • 4 POSTS
Thanks I really appreciate it Should they be a certain Color? Or do I determine the Color by the wires that lead into the FIxture, Or will they be clearly marked at the Base of the Steering Column??? Thanks a Million again. Oh this will still allow them to run thru the Relay Correct???
Mar 29, 2015 at 1:00 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
I forgot to send the pic sorry here it is. yes it will stil run through the relay
Image (Click to enlarge)
Attached Media
Mar 29, 2015 at 3:31 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

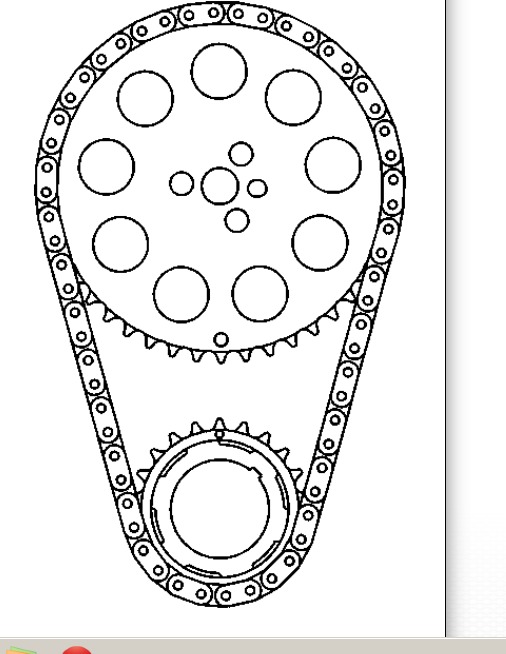

sent the wrong one sorry here it is.
Image (Click to enlarge)
Attached Media
Mar 29, 2015 at 3:33 PM
