1993 Toyota Camry LE 2.2L EGR Valve bypass capable?

1993 TOYOTA CAMRY
209,000 MILES • 4 CYL • AUTOMATIC
Avatar
ALEXANDERSMAMA2010
  • MEMBER
  • 20 POSTS
1993 Toyota Camry LE 2.2L : EGR Valve bypass specifics? The EGR Valve was properly cleaned with Carb Cleaner, the car ran well for a short time, and is again stalling. I have been told that the Valve and the Valve Modulator can be bypassed by removing them both completely and screwing in a metal plate where the EGR Valve Port meets the engine, and that certain vacumm hoses need to be pinched or capped off. Also, what then do you do with the lower exhaust pipe leading from the crankcase to the bottom of the EGR Valve?
Mar 13, 2011 at 8:58 PM
Advertisement
Avatar
MERLIN2021
  • CERTIFIED EXPERT
  • 17,250 POSTS
You would need to cap it as well or it will be loud.
Mar 13, 2011 at 9:05 PM
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
You can use a template-but when the engine starts to ping/detonate-which will increase the formation of oxides of nitrogen -best find where the problem is on the EGR system-
Mar 13, 2011 at 9:05 PM
Advertisement
Avatar
MERLIN2021
  • CERTIFIED EXPERT
  • 17,250 POSTS
Have you checked the valve to see if's it hold vacuum? Also clean out the port UNDR the egr, they fill up with carbon and cause this type of problem. If your stATE requires emmisins testing, doing what youre thinking about will make it impossible to pass. Scan for codes. Check that the valve hold vacuum and moves the pintle, if it doesnt, replace it. if it works clear the port!
Mar 13, 2011 at 9:08 PM
Avatar
ALEXANDERSMAMA2010
  • MEMBER
  • 20 POSTS
I already cleaned the port under the EGR, I soaked the lower part of the EGR Valve in Carb Cleaner overnight and scraped it with an awl, and we dont have emissions testing where we live, just trying to get by until next month until we can buy a new EGR Valve....it runs $180 and has to be prepaid for since it has to be shipped up to Alaska.

And the EGR Valve Modulator has had the filters inside cleaned.
Mar 13, 2011 at 9:13 PM
Avatar
ALEXANDERSMAMA2010
  • MEMBER
  • 20 POSTS
Cap the exhaust pipe. Ok. Then there are the vacumm hoses leading from the EGR Valve and the EGR Valve Modulator, so these get pinched off I am assuming?
Mar 13, 2011 at 9:18 PM
Avatar
ALEXANDERSMAMA2010
  • MEMBER
  • 20 POSTS
Still no more responses? Whats the deal Car Pros, I have been donating off and on for two years.

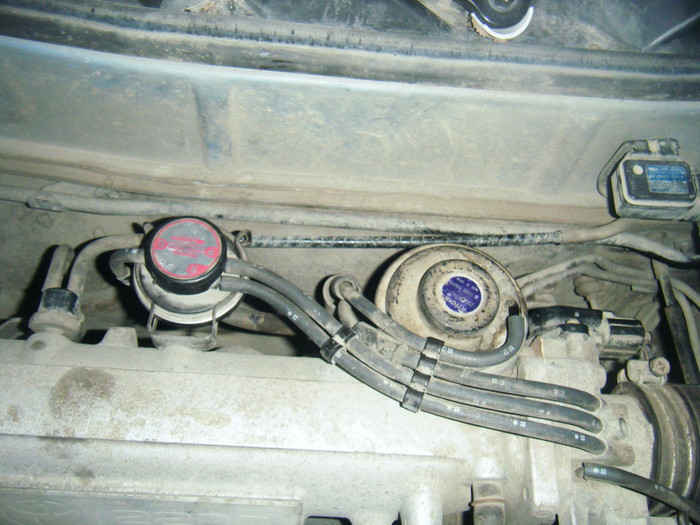

Image (Click to enlarge)
Attached Media
Mar 14, 2011 at 4:09 AM
Avatar
MERLIN2021
  • CERTIFIED EXPERT
  • 17,250 POSTS
If you remove the egr. you do plug the vacuum lines.
Mar 14, 2011 at 9:26 AM
