How to remove the dash?

1993 TOYOTA CAMRY

217,000 MILES • 2.2L • 4 CYL • 2WD • AUTOMATIC

DIDI7154

MEMBER
30 POSTS
FOLLOW

Does anyone have step by step instructions on how to remove the dash on the car listed above? I need to access some linkages that go from the servomotor to the center vent dampers, and I need to remove the dash to do so.

Thanks

May 1, 2022 at 7:36 AM

JACOBANDNICKOLAS

CERTIFIED EXPERT
110,175 POSTS

Hi,

I have the directions listed below. They are somewhat overwhelming but just take your time. Note that I did include the directions for the entire removal of the dash. If you find what you are trying to access can be done before completing this, I would certainly do it.

Also, make sure the battery is disconnected prior to starting this job.

If you run into trouble, let me know and I'll try my best to help from here.

Take care,

Joe

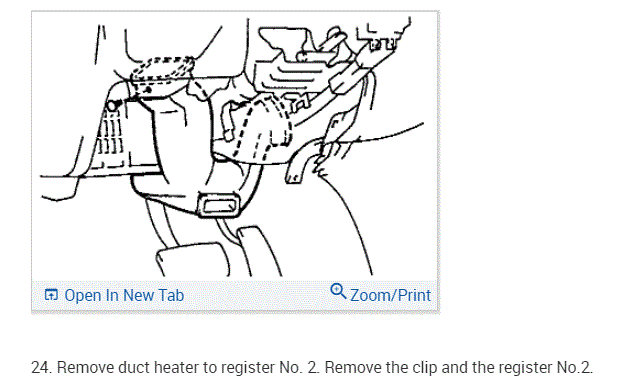

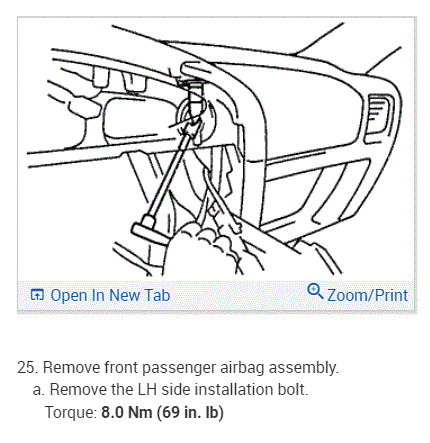

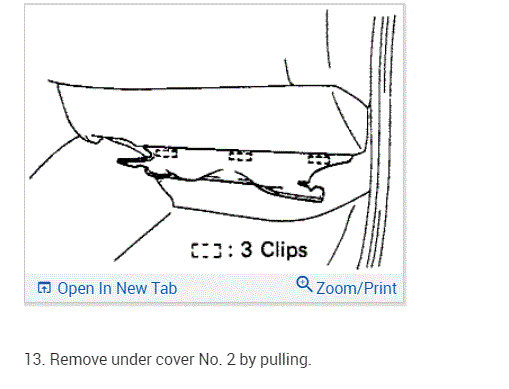

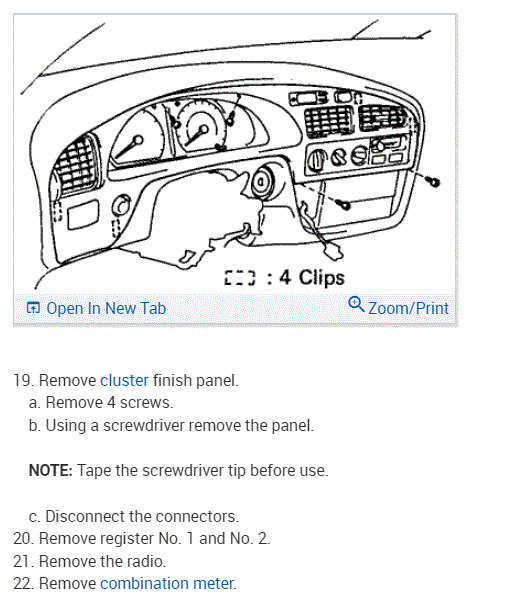

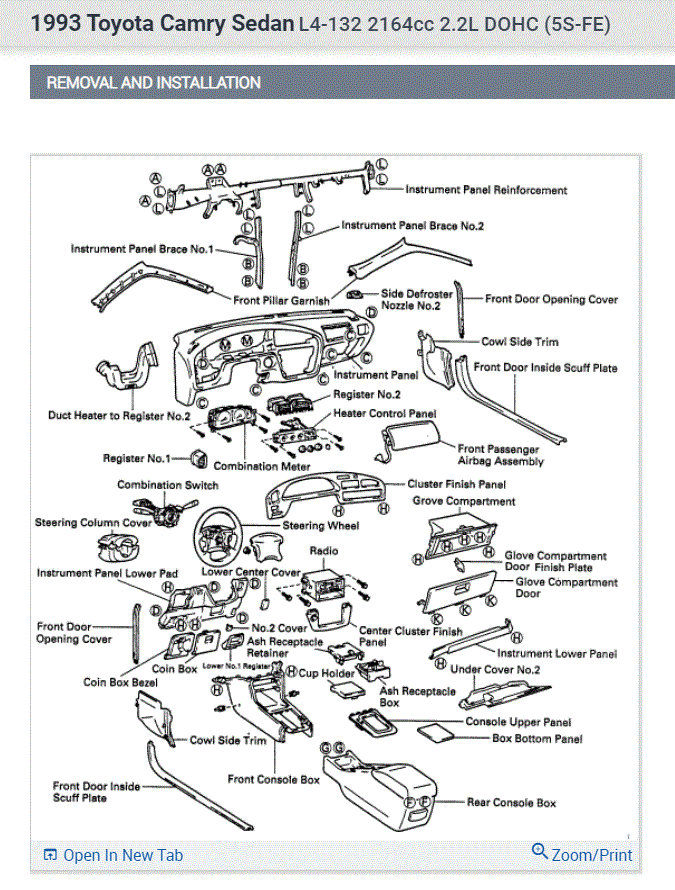

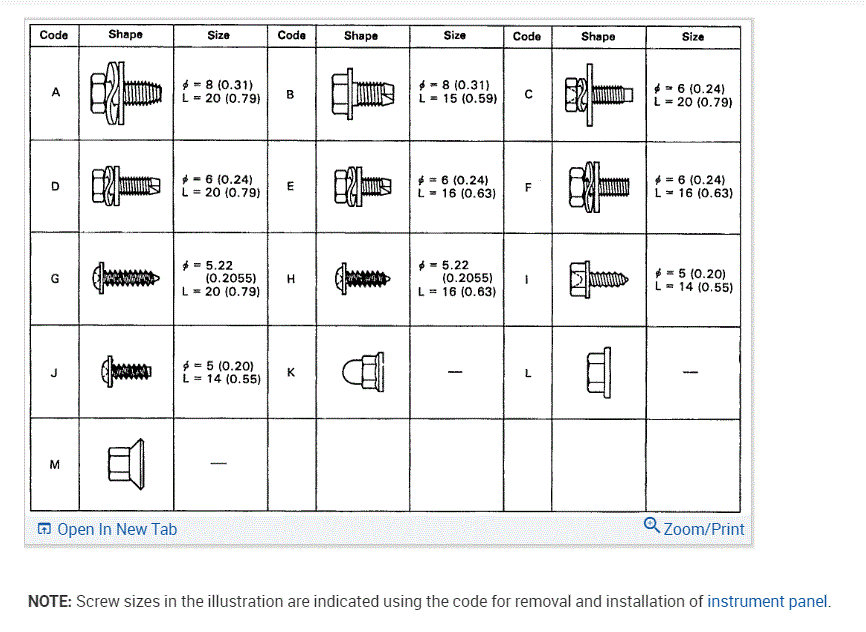

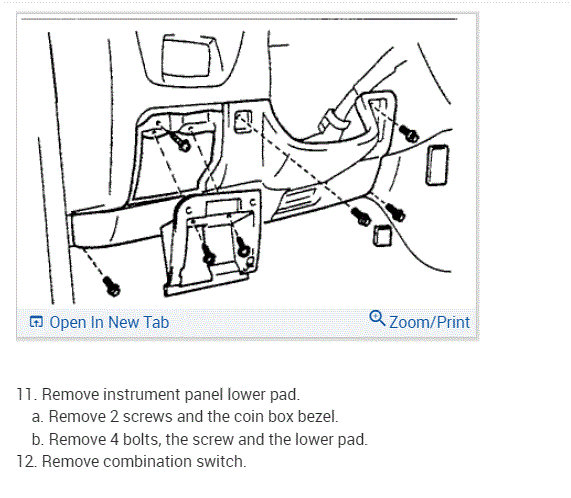

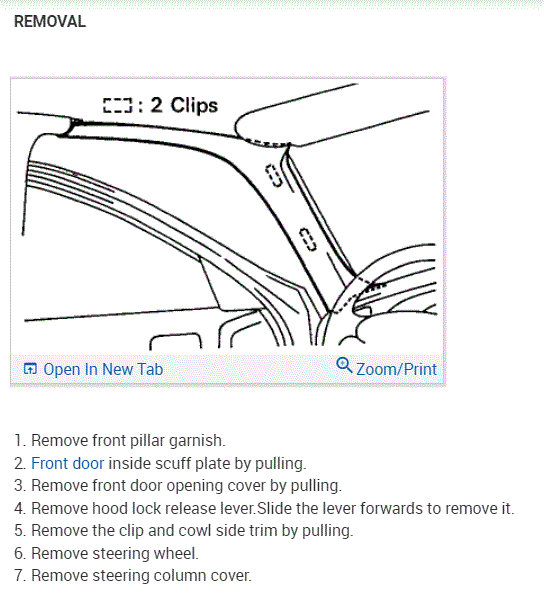

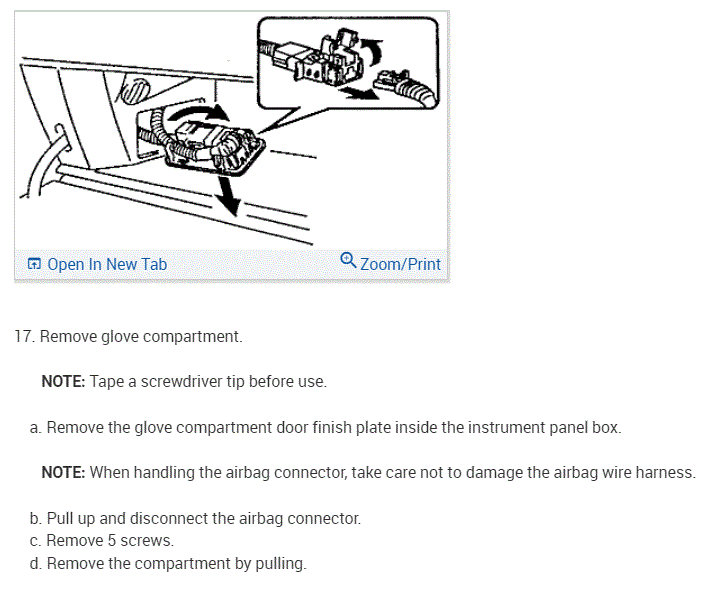

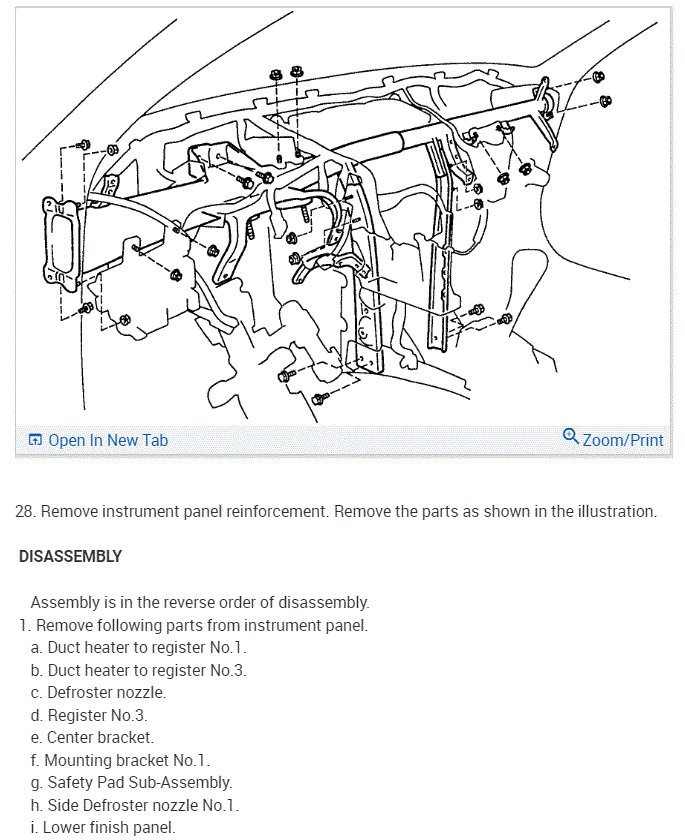

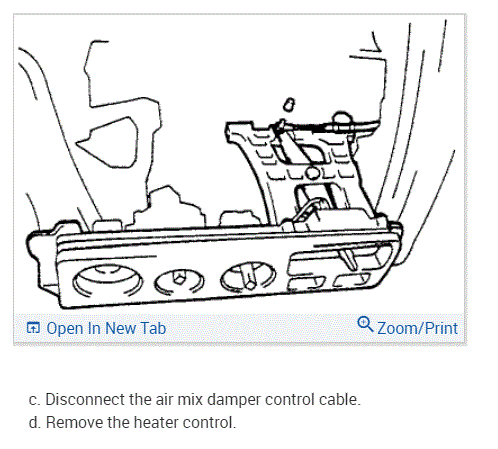

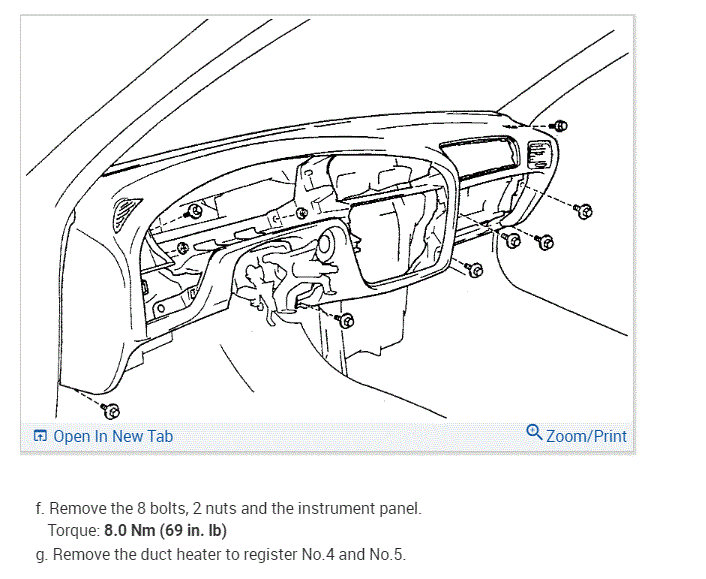

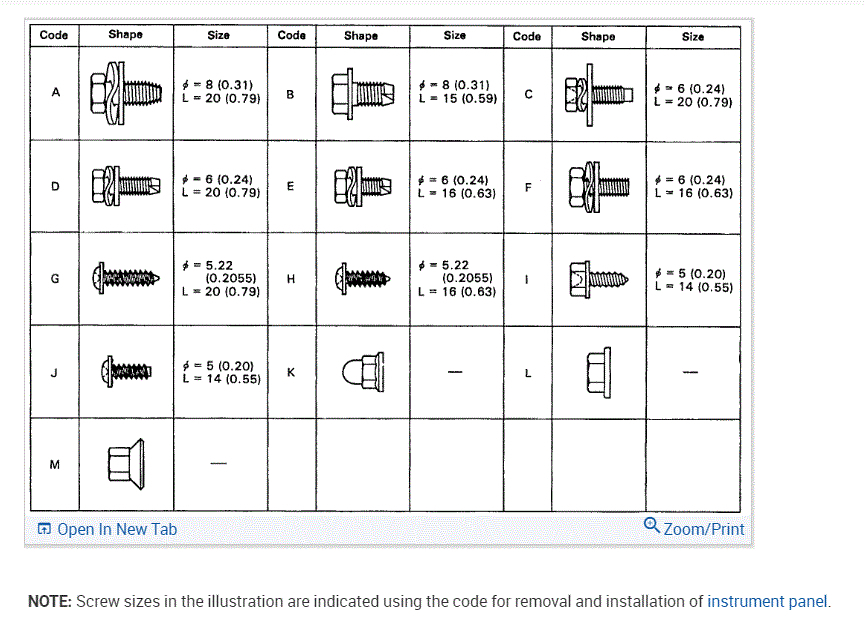

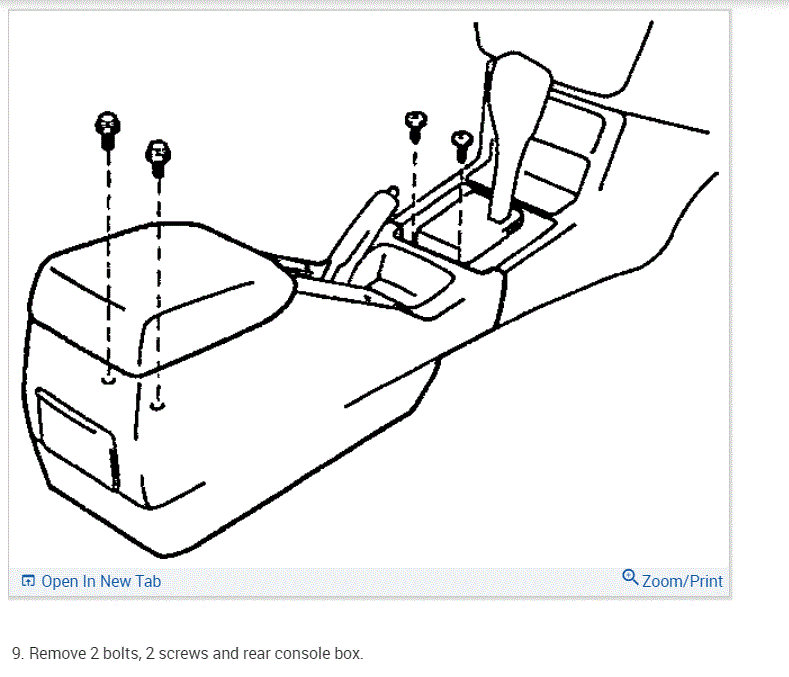

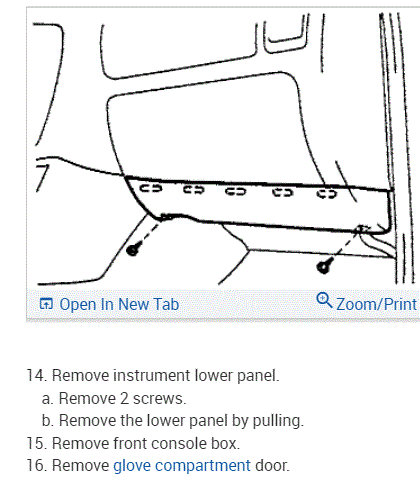

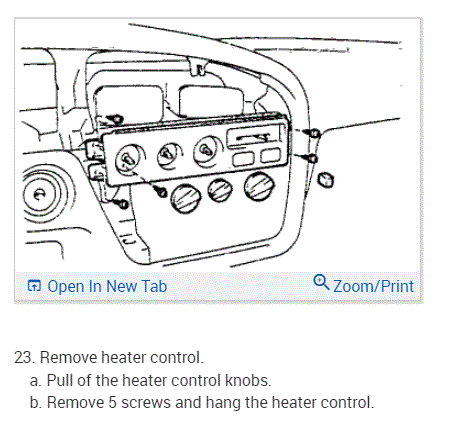

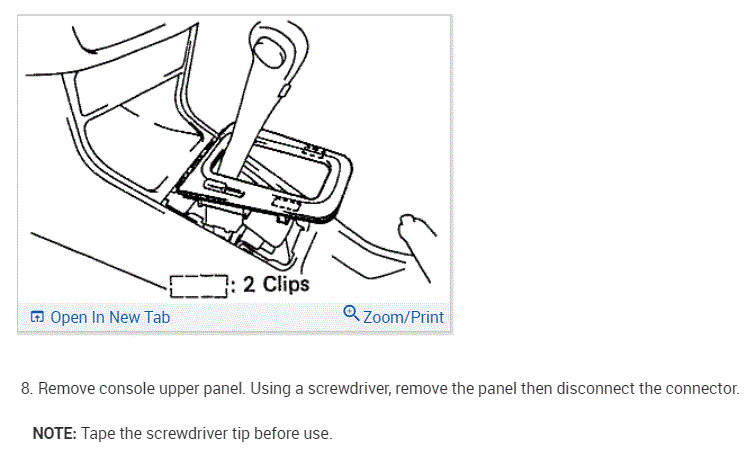

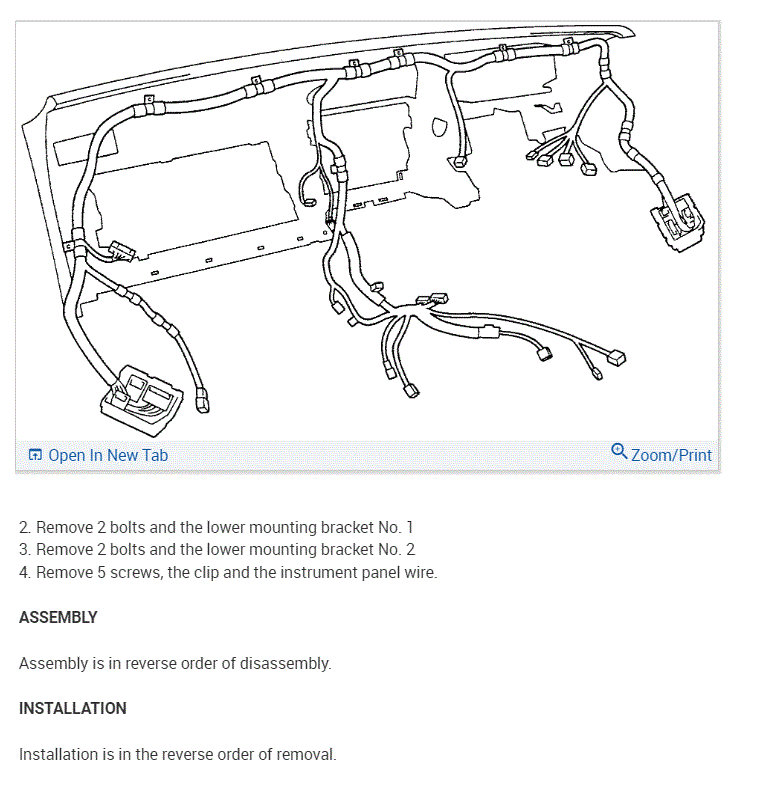

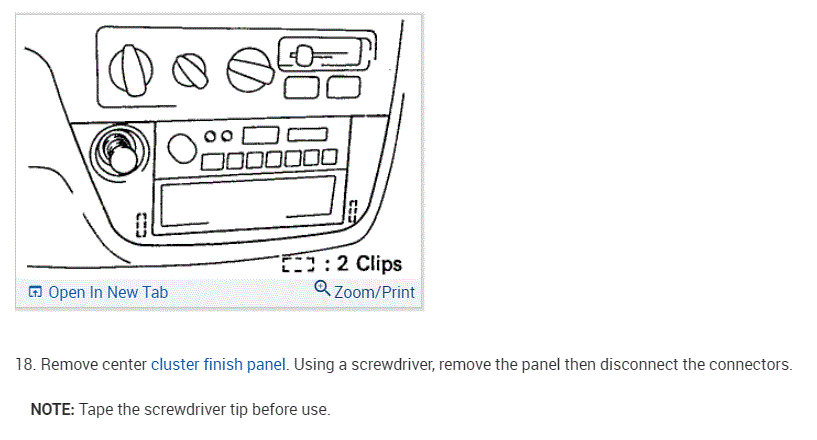

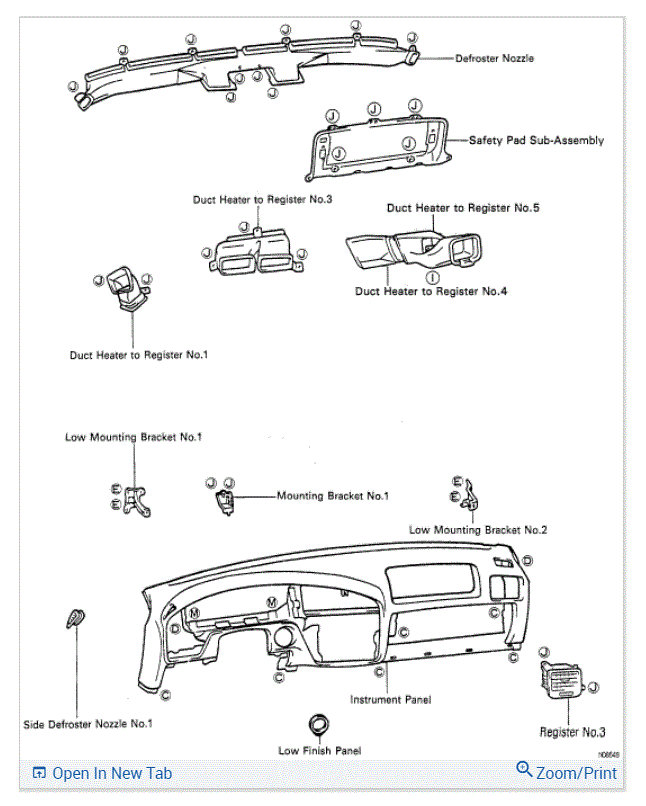

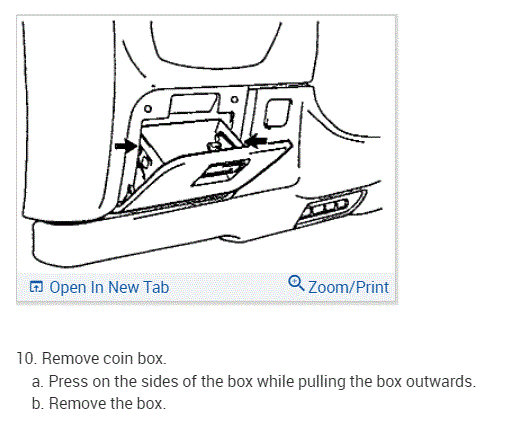

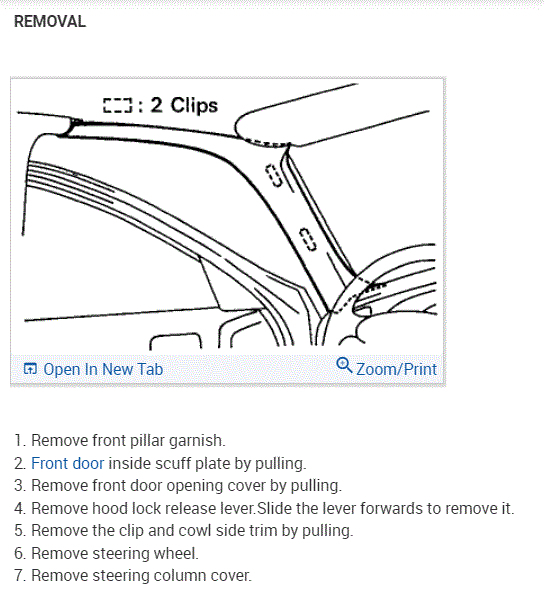

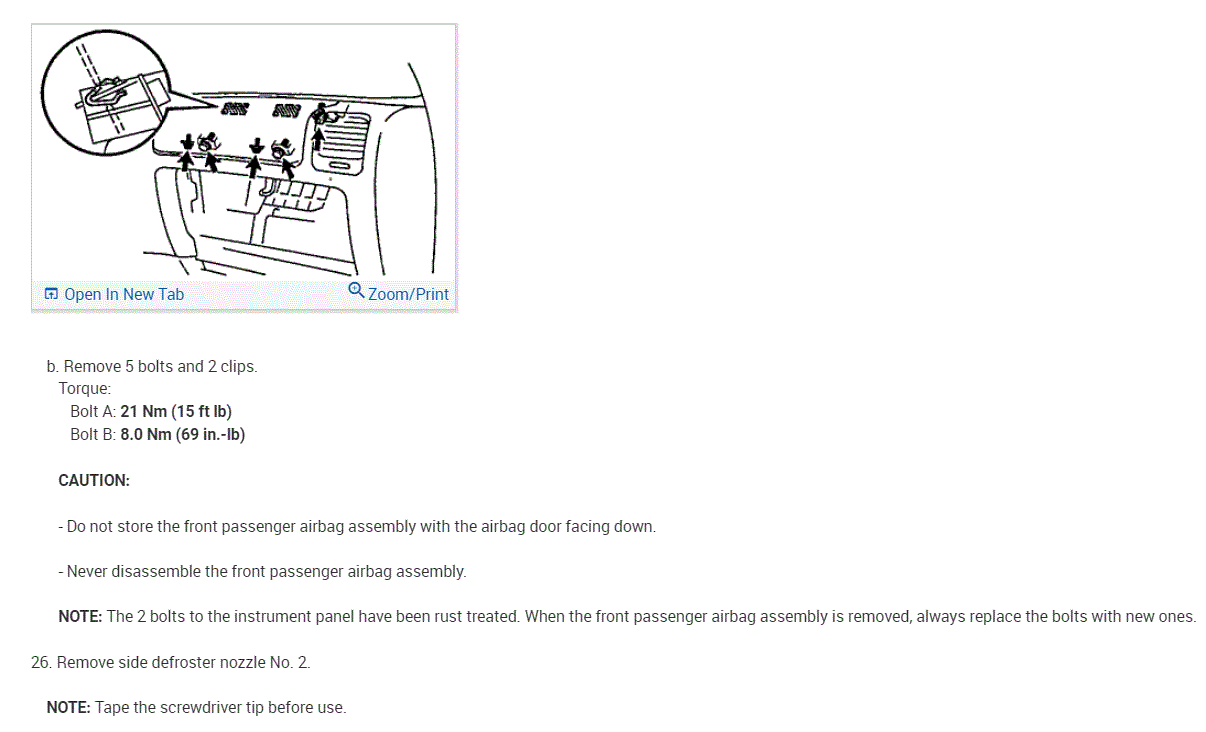

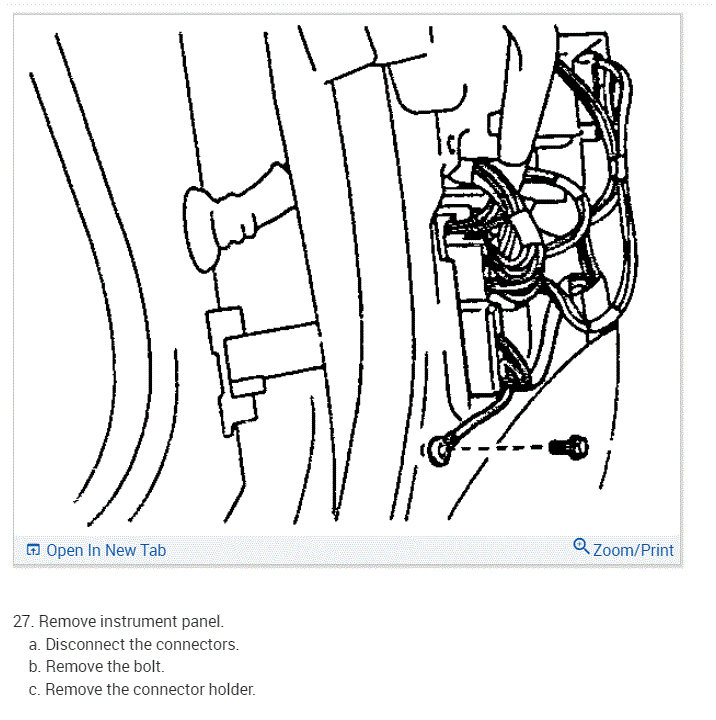

See pics below.

Images (Click to enlarge)

May 1, 2022 at 8:30 PM
