The cover to the box is missing fuse box diagrams

1993 PLYMOUTH VOYAGER
160,000 MILES • 2.2L • 6 CYL • FWD • AUTOMATIC
Avatar
ISLAVISTA
  • MEMBER
  • 1 POST
the cover to the box is missing. need to know were certain fuses go.. power to the cig lighter / stereo and heater air
Jul 20, 2015 at 9:22 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

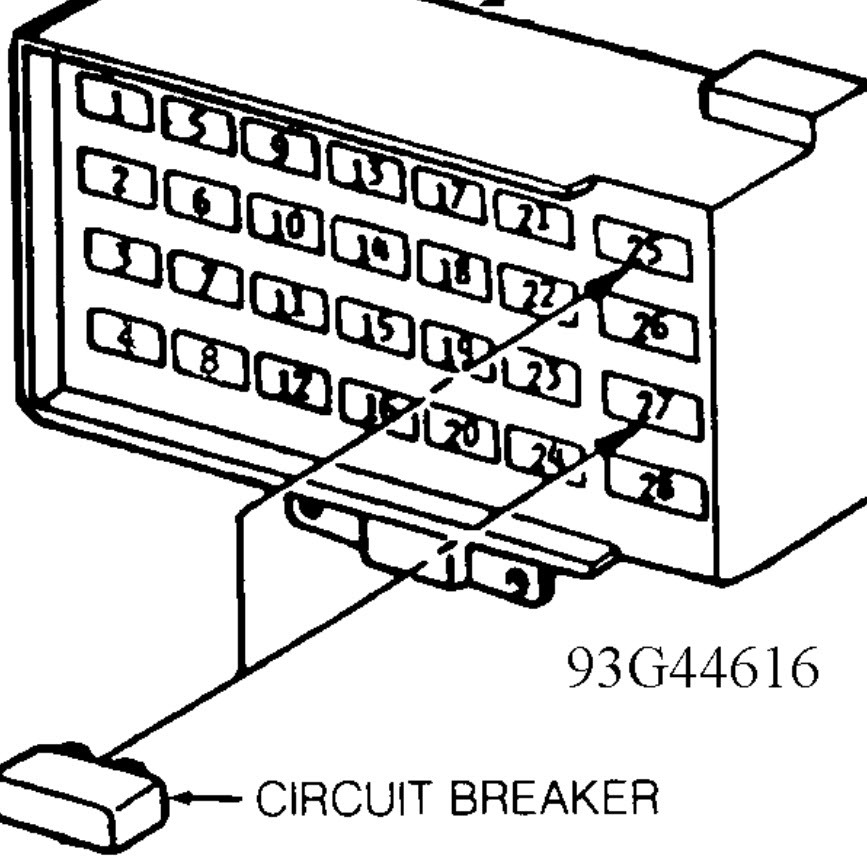

Here is a guide to help you check the fuses and diagrams below to show you where the fuses are.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

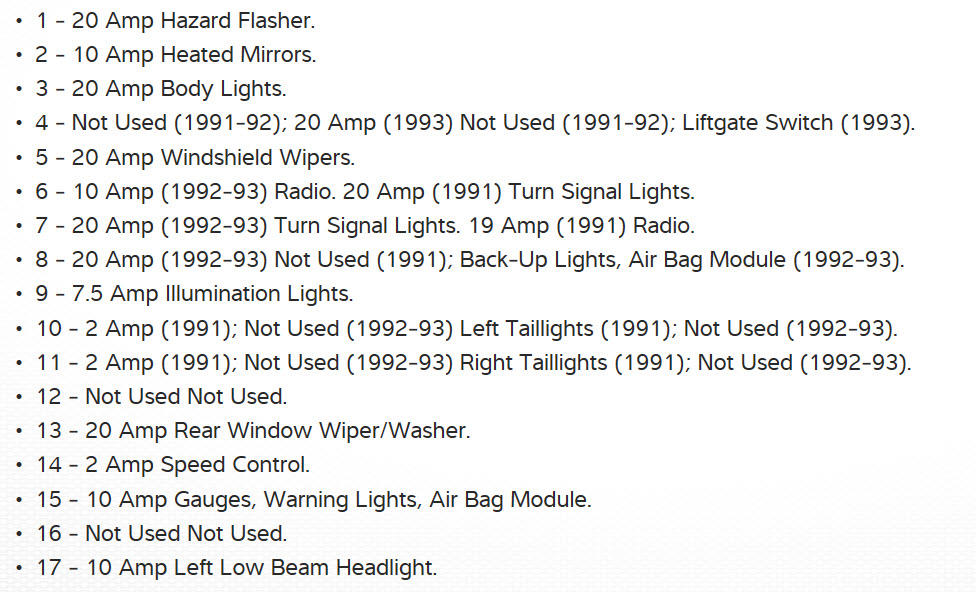

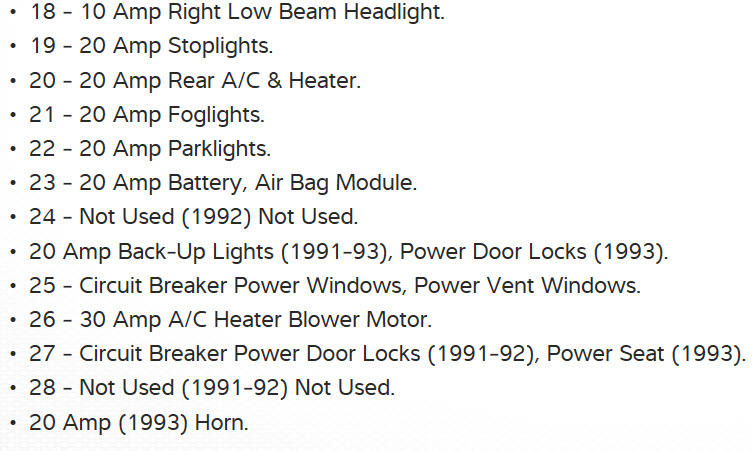

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jul 21, 2015 at 6:14 AM
Avatar
D.VARNUM
  • MEMBER
  • 1 POST
1993 Plymouth Voyager

where is the fuse box located on a 93 grand voyager
Jan 9, 2019 at 8:27 PM (Merged)
Advertisement
Avatar
DAVE H
  • CERTIFIED EXPERT
  • 13,384 POSTS
FUSES & CIRCUIT BREAKERS Fuse panel is located under the parking brake handle on the left side of the steering column.


https://www.2carpros.com/forum/automotive_pictures/266999_fuse_15.jpg

Jan 9, 2019 at 8:27 PM (Merged)
