1993 MITSUBISHI NIMBUS
280,000 MILES
Avatar
DAZ68
  • MEMBER
  • 1 POST

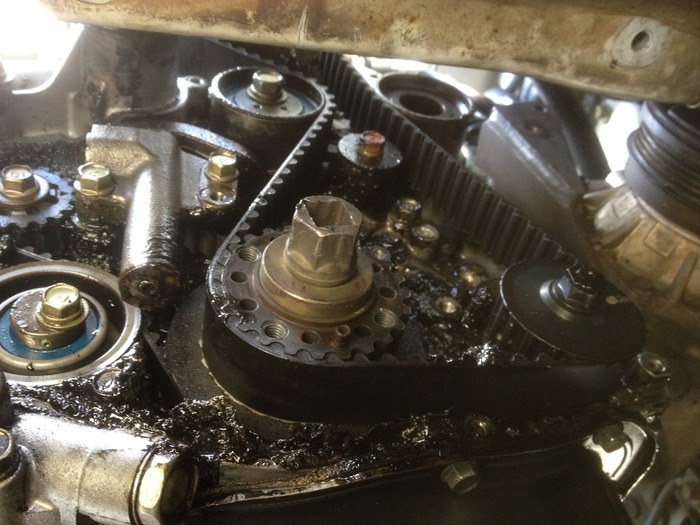

I'm trying to remove the cylinder head ;1 what is the procedure for removing the timing belt? (are there factory timing marks or do I make my own?)
2 Is the amount of grease normal around the gears?
Image (Click to enlarge)
Attached Media
Nov 17, 2012 at 4:38 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

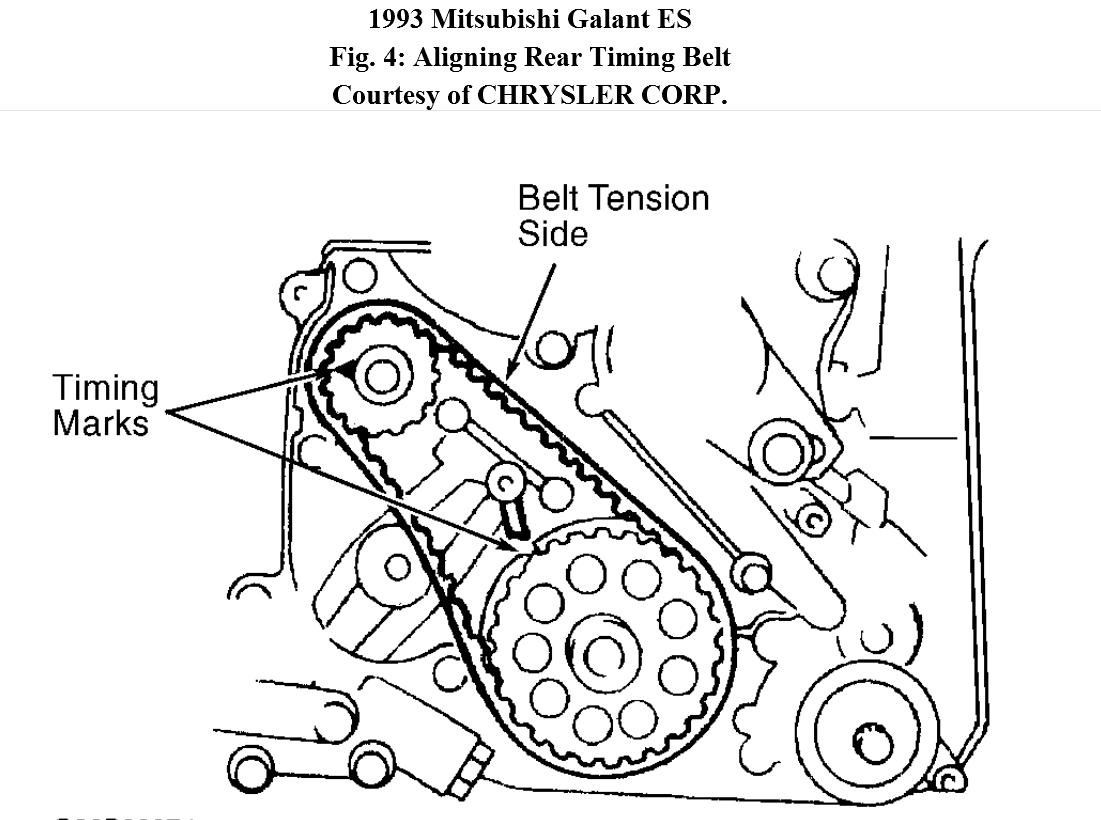

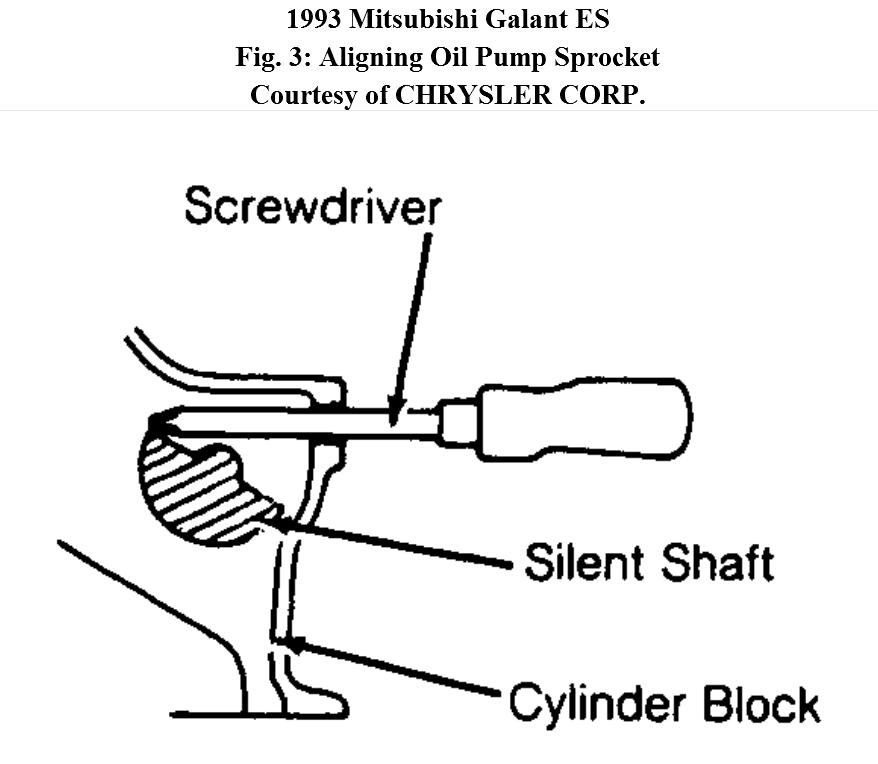

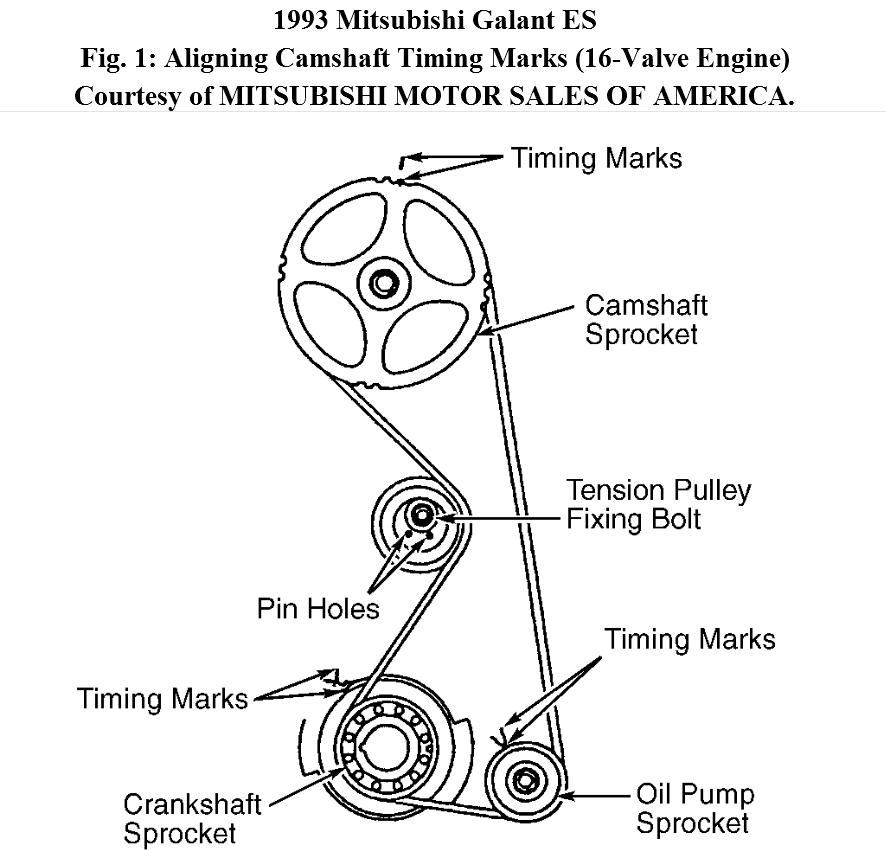

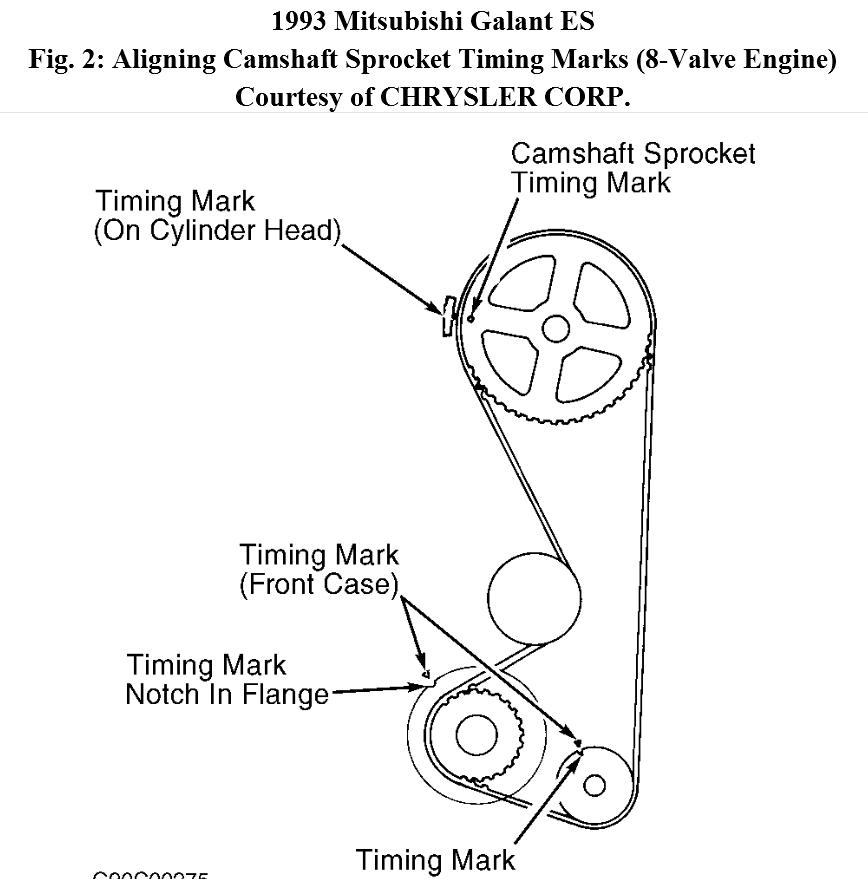

All sprockets are marked except for the oil pump drive which is also the balancer shaft and must be correctly aligned.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Nov 18, 2012 at 12:19 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You have a leak at the seals which is causing oil to be dumped in the area, which should be dry at all times as the timing belt can break prematurely when contaminated by oil. The seals are leaking and has to be replaced..
Nov 18, 2012 at 2:42 PM
