1993 Mercedes Benz 300se headlight problem

1993 MERCEDES BENZ 300SE
130,000 MILES • V6 • RWD • AUTOMATIC
Avatar
CLUSTER1973
  • MEMBER
  • 1 POST
my head lights will not come on, they first started to flicker on and off but now will not come on at all, this is the first time this has happened, my switch seems to have a shortage, my corner lights come on
Dec 28, 2013 at 3:59 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

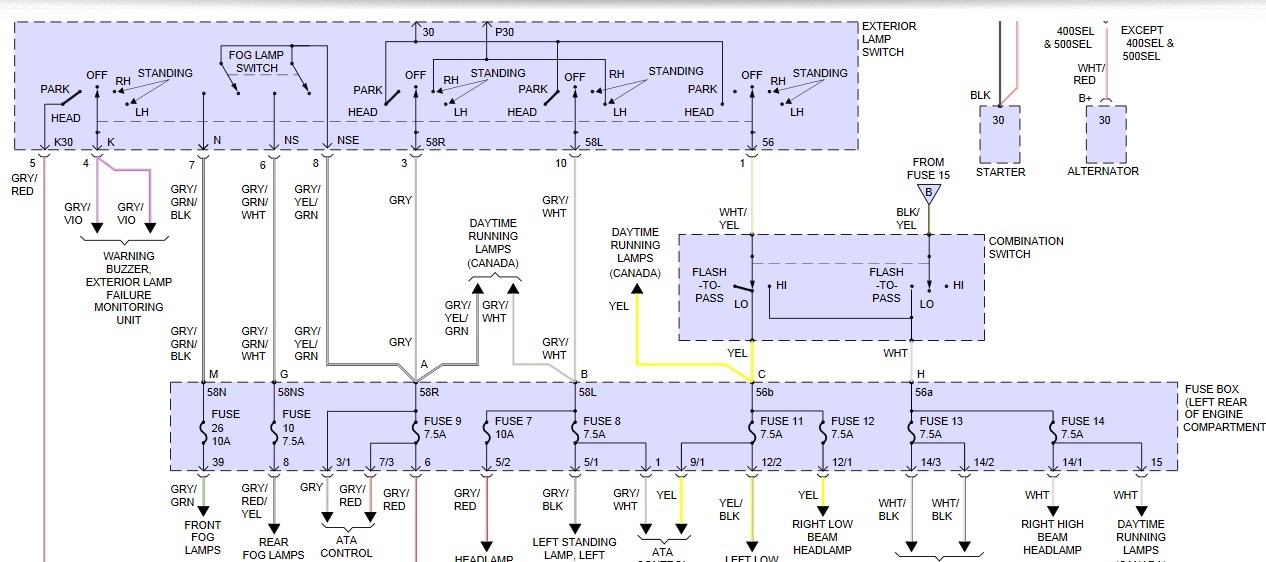

Check fuses 11 and 12 in the diagram for voltage, use a testlamp. Headlamps on low beam, those are low beam fuses. If no voltage, you will have to check voltage to and from dimmer/combination switch and so on. Keep backtracking till you find voltage. If there is easier way to track this problem, I don't know how.
Image (Click to enlarge)
Attached Media
Dec 28, 2013 at 4:53 PM
