motor blew so i installed a toyota 5sfe motor

1993 MAZDA 626
150,000 MILES
Avatar
VAMVWJ
  • MEMBER
  • 3 POSTS
I have a 93 mazda 626.. .. need some wiring help for the distributor and the alternator motor came out of a 96 celica gt... the guy that is doin the work is got everything connected except the distributor and alternator.. i need wiring diagrams or any help to get it goin.. he said he hooked up the distrubutor to the batter some how and it will start up and run but thats where we stuck at. any help would be very much appreciated
Apr 29, 2012 at 7:52 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Sounds like a real nightmare your doing do you need a wire diagram for the mazada or the toyota?ALso if its the toyota i need year model etc the engine came out of?
Apr 29, 2012 at 8:58 PM
Avatar
VAMVWJ
  • MEMBER
  • 3 POSTS
Yes I need a diagram for both.. the toyota the motor came from is a 96 toyota celica gt..
Apr 29, 2012 at 9:12 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS

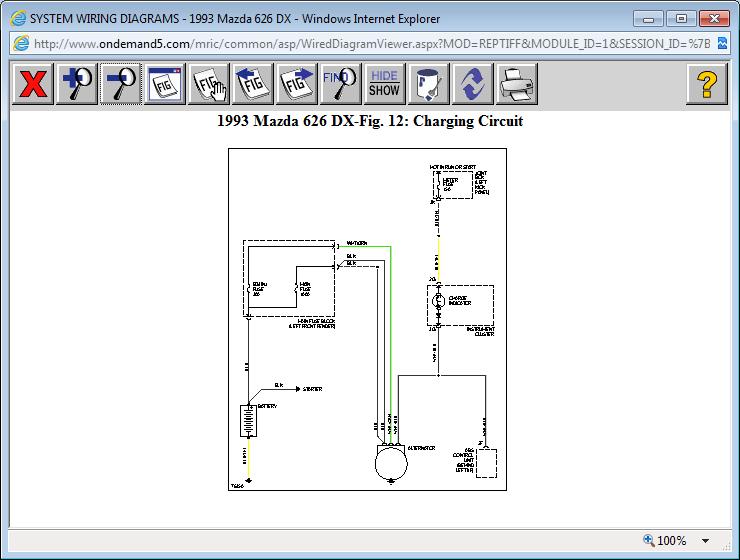

I posted what i have for the mazada.Do you have a 1.8 or a 2.2 toyota engine?
Image (Click to enlarge)
Attached Media
Apr 29, 2012 at 10:45 PM
Avatar
VAMVWJ
  • MEMBER
  • 3 POSTS
2.2
Apr 29, 2012 at 10:46 PM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS

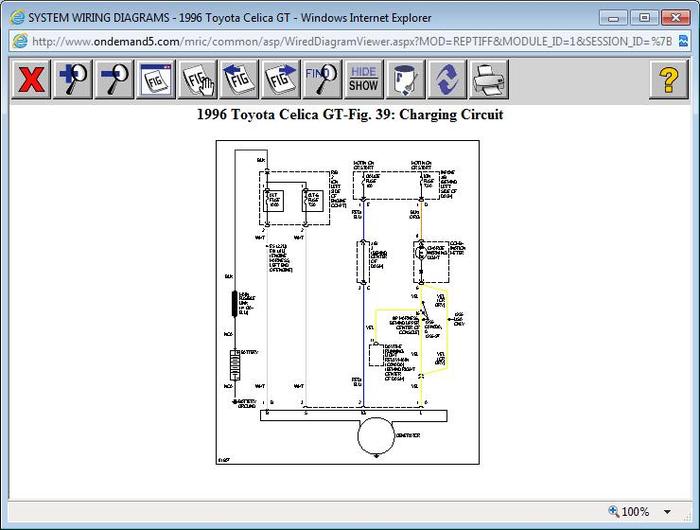

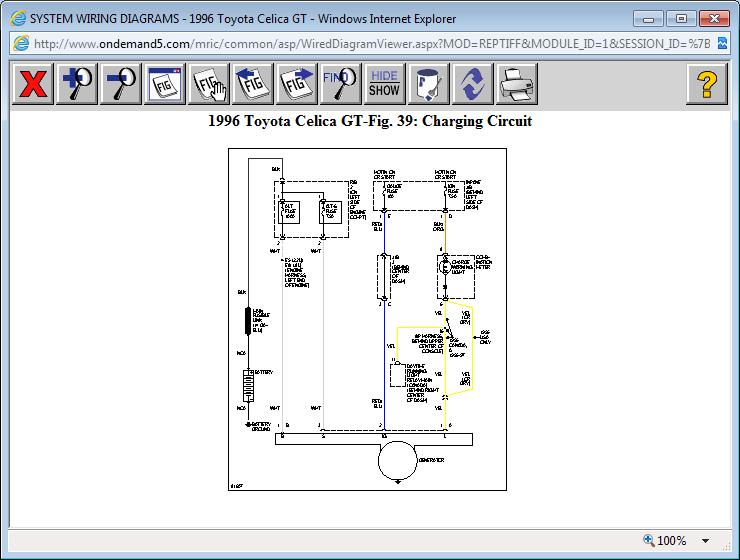

I posted the diagram for the toyota alternator wire diagram.
Image (Click to enlarge)
Attached Media
Apr 30, 2012 at 12:06 AM
