1993 rodeo 2.6l

1993 ISUZU RODEO
4 CYL • 2WD • MANUAL
Avatar
[email protected]
  • MEMBER
  • 3 POSTS
How should a replacement fuel pump be wired
red/red and red/red or red/yellow red/yellow.
I was looking into a fuel leak and found the fuel pump wires hook up red/yellow red/yellow.

Thanks
Nov 19, 2010 at 11:31 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

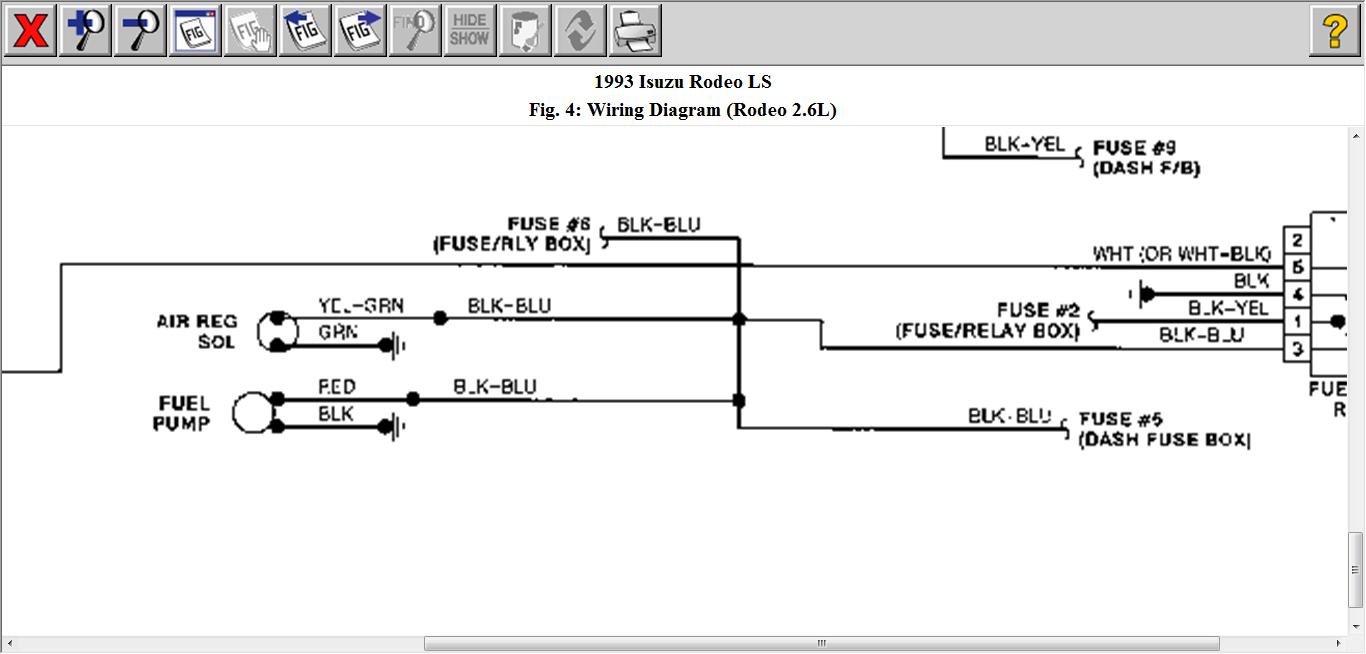

The red wire is where battery voltage goes to and the black is the ground

Image (Click to enlarge)
Attached Media
Nov 20, 2010 at 12:00 AM
Avatar
[email protected]
  • MEMBER
  • 3 POSTS
Ok so the yellow wire is the ground then? Red/yellow are my choices from connector to the fuel pump, thanks again
Nov 20, 2010 at 9:55 PM
