my 93 honda prelude rear tires

1993 HONDA PRELUDE
260,000 MILES • 4 CYL • FWD • MANUAL
Avatar
DAN12344321
  • MEMBER
  • 1 POST
i have 93 honda prelude v-tec and the rear wheels shake. the back end sways back and forth on highway i know what the part looks like that i need but dont know what its called to even find it. its like some type of tie rod end or somthing that keeps wheels steady
Jan 10, 2011 at 5:29 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

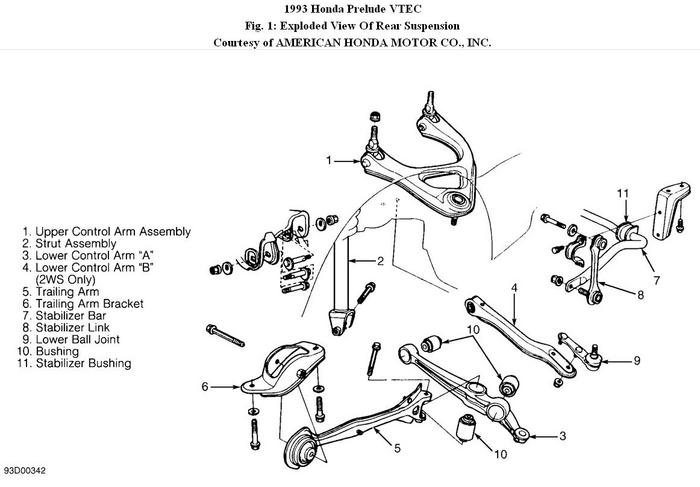

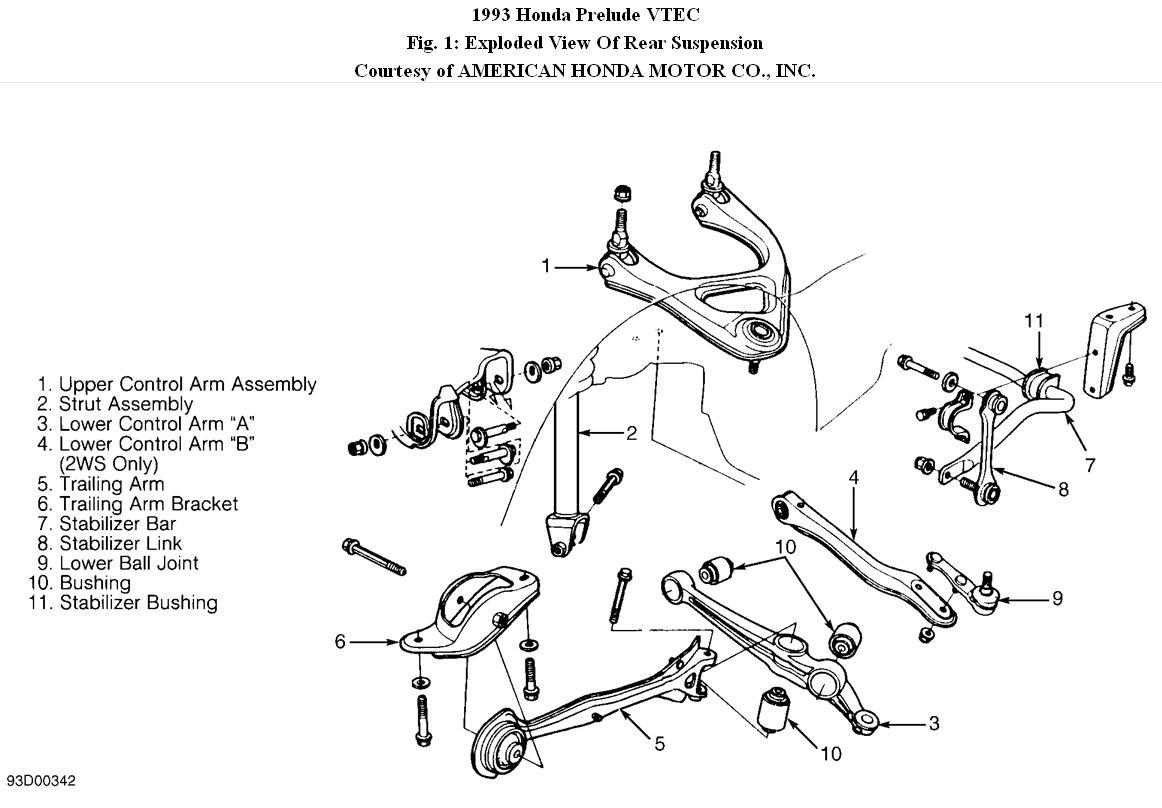

Attached is an exploded view of rear suspension components with the parts description.

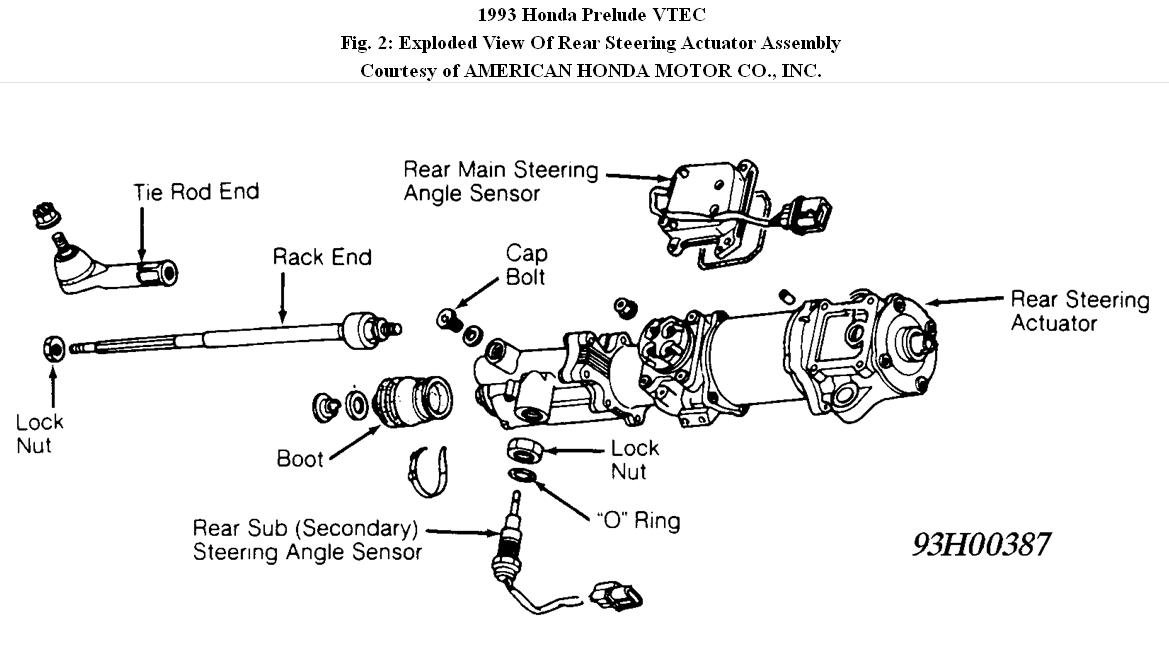

2nd diagram shows 4wheel steering components, if equipped.
Jan 10, 2011 at 4:58 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Sorry for missing this out.
Jan 10, 2011 at 4:58 PM
