1993 Ford Probe radio

1993 FORD PROBE
150,000 MILES • 2.0L • V6 • 2WD • MANUAL
Avatar
CRAPED3
  • MEMBER
  • 1 POST
my radio wont turn on it the car at all not even when i turn the key there are no light goin on on the radio either.it is a aftermarket radio and every thing is hooked up right
Apr 8, 2014 at 9:47 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Did you check the radio fuse? Not only check the fuse, check the fuse circuit for voltage.
Apr 8, 2014 at 10:53 AM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

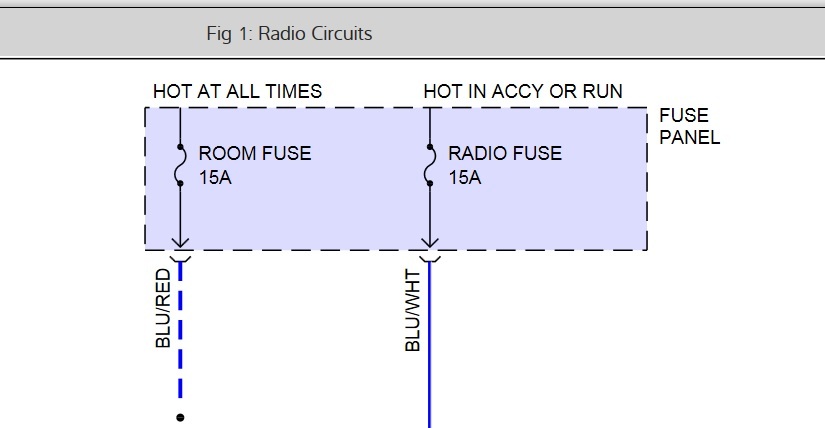

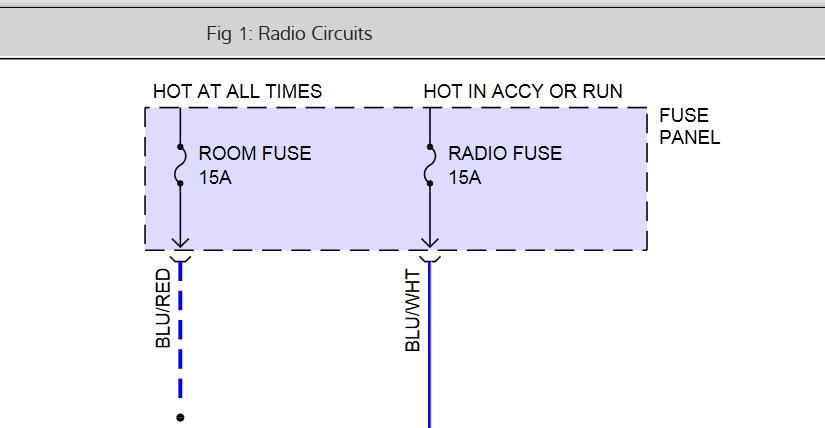

Note the fuses in diagram. The radio fuse goes hot with the key on. This is supposed to be factory wiring, I don't have access to anything else. If your aftermarket radio is wired differently, I don't know to help except to check voltage and ground.
Image (Click to enlarge)
Attached Media
Apr 8, 2014 at 11:01 AM
